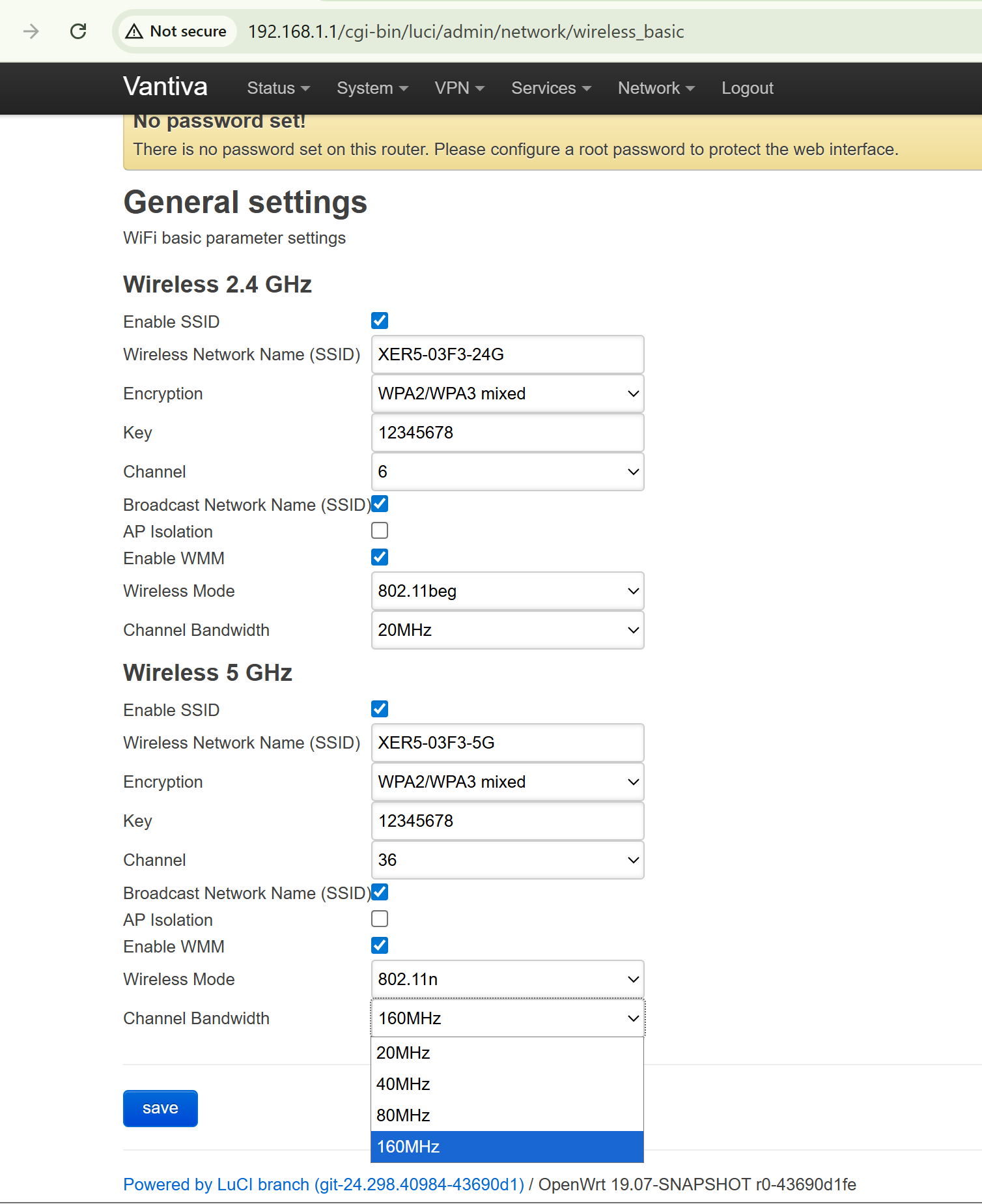

拆台IPQ9570的路由器-xer5 xfinity 原生openwrt 性能强劲 无线有点拉

下面是搞挂了系统 无限重启. 好像重置不了,

Hit any key within 10s to stop dump activity...Using serverip from env 192.168.10.1

Processing EBICS0.BIN:

Env 'dumpdir' not set. Using / dir in TFTP server

ipq9574_eth_halt: done

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

Phy ops not mapped

Phy ops not mapped

ipq9574_eth_halt: done

Crashdump saving failed!

resetting ...

U-Boot 2016.01 (Mar 15 2024 - 09:47:19 +0000)

DRAM: smem ram ptable found: ver: 2 len: 4

2 GiB

NAND: QPIC: disabled, skipping initialization

SF: Unsupported flash IDs: manuf ff, jedec ffff, ext_jedec ffff

ipq_spi: SPI Flash not found (bus/cs/speed/mode) = (0/0/48000000/0)

0 MiB

MMC: <NULL>: 0 (eMMC)

In: serial@78B1000

Out: serial@78B1000

Err: serial@78B1000

machid: 8050601

Hit any key to stop autoboot: 0

Saving Environment to MMC...

Writing to MMC(0)... done

MMC read: dev # 0, block # 131072, count 131072 ... 131072 blocks read: OK

## Loading kernel from FIT Image at 50000000 ...

Using 'config@al02-c7' configuration

Trying 'kernel@1' kernel subimage

Description: ARM OpenWrt Linux-5.4.213

Type: Kernel Image

Compression: lzma compressed

Data Start: 0x500000e4

Data Size: 3534770 Bytes = 3.4 MiB

Architecture: ARM

OS: Linux

Load Address: 0x42008000

Entry Point: 0x42008000

Hash algo: crc32

Hash value: f5869cd5

Hash algo: sha1

Hash value: 2ff2de5b73fc112df84196aa71d1eeca7d1420a4

Verifying Hash Integrity ... crc32+ sha1+ OK

## Loading fdt from FIT Image at 50000000 ...

Using 'config@al02-c7' configuration

Trying 'fdt@al02-c7' fdt subimage

Description: ARM OpenWrt ipq9574-alxx device tree blob

Type: Flat Device Tree

Compression: uncompressed

Data Start: 0x5048c5a4

Data Size: 83458 Bytes = 81.5 KiB

Architecture: ARM

Hash algo: crc32

Hash value: ab40b389

Hash algo: sha1

Hash value: 22a673446450c8a6fece31848db32a5193d855ca

Verifying Hash Integrity ... crc32+ sha1+ OK

Booting using the fdt blob at 0x5048c5a4

Uncompressing Kernel Image ... OK

Loading Device Tree to 484e8000, end 484ff601 ... OK

Unable to update property /soc/dp4:mac-address, err=FDT_ERR_NOTFOUND

Unable to update property /soc/dp4:local-mac-address, err=FDT_ERR_NOTFOUND

Unable to update property /soc/dp4:mac-address, err=FDT_ERR_NOTFOUND

Unable to update property /soc/dp4:local-mac-address, err=FDT_ERR_NOTFOUND

Could not find PCI0 in device tree

Using machid 0x8050601 from environment

Starting kernel ...

[ 0.000000] Booting Linux on physical CPU 0x0

[ 0.000000] Linux version 5.4.213 (@188564a8ff78) (gcc version 7.5.0 (OpenWrt GCC 7.5.0 r0-43690d1)) #0 SMP PREEMPT Fri Mar 15 09:47:19 2024

[ 0.000000] CPU: ARMv7 Processor [411fd090] revision 0 (ARMv7), cr=10c0383d

[ 0.000000] CPU: div instructions available: patching division code

[ 0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache

[ 0.000000] OF: fdt: Machine model: Qualcomm Technologies, Inc. IPQ9574/AP-AL02-C7

[ 0.000000] Memory policy: Data cache writealloc

[ 0.000000] Reserved memory: created DMA memory pool at 0xbe600000, size 9 MiB

[ 0.000000] OF: reserved mem: initialized node dma_pool1@1, compatible id shared-dma-pool

[ 0.000000] Reserved memory: created DMA memory pool at 0xbdd00000, size 9 MiB

[ 0.000000] OF: reserved mem: initialized node dma_pool2@2, compatible id shared-dma-pool

[ 0.000000] Reserved memory: created DMA memory pool at 0xbd400000, size 9 MiB

[ 0.000000] OF: reserved mem: initialized node dma_pool3@3, compatible id shared-dma-pool

[ 0.000000] psci: probing for conduit method from DT.

[ 0.000000] psci: PSCIv1.0 detected in firmware.

[ 0.000000] psci: Using standard PSCI v0.2 function IDs

[ 0.000000] psci: MIGRATE_INFO_TYPE not supported.

[ 0.000000] psci: SMC Calling Convention v1.0

[ 0.000000] percpu: Embedded 15 pages/cpu s32268 r8192 d20980 u61440

[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 466019

[ 0.000000] Kernel command line: console=ttyMSM0,115200n8 cnss2.bdf_pci2=0x02 root=PARTUUID=863042fc-436e-d2c6-3084-f9e91af592a1 gpt rootwait vmalloc=1G

[ 0.000000] Dentry cache hash table entries: 262144 (order: 8, 1048576 bytes, linear)

[ 0.000000] Inode-cache hash table entries: 131072 (order: 7, 524288 bytes, linear)

[ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off

[ 0.000000] Memory: 1852304K/1882112K available (6698K kernel code, 442K rwdata, 2252K rodata, 1024K init, 367K bss, 29808K reserved, 0K cma-reserved, 0K highmem)

[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1

[ 0.000000] rcu: Preemptible hierarchical RCU implementation.

[ 0.000000] Tasks RCU enabled.

[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies.

[ 0.000000] NR_IRQS: 16, nr_irqs: 16, preallocated irqs: 16

[ 0.000000] GICv2m: range[mem 0x0b00c000-0x0b00cffc], SPI[640:671]

[ 0.000000] GICv2m: range[mem 0x0b00d000-0x0b00dffc], SPI[672:703]

[ 0.000000] GICv2m: range[mem 0x0b00e000-0x0b00effc], SPI[704:735]

[ 0.000000] arch_timer: cp15 and mmio timer(s) running at 24.00MHz (virt/virt).

[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns

[ 0.000005] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns

[ 0.000014] Switching to timer-based delay loop, resolution 41ns

[ 0.000287] Calibrating delay loop (skipped), valu3: thread -1, cpu 3, socket 0, mpidr 80000003

[ 0.008491] CPU3: Spectre v2: using BPIALL workaround

[ 0.008602] smp: Brought up 1 node, 4 CPUs

[ 0.008611] SMP: Total of 4 processors activated (192.00 BogoMIPS).

[ 0.008617] CPU: All CPU(s) started in SVC mode.

[ 0.017567] VFP support v0.3: implementor 51 architecture 3 part 40 variant 9 rev 0

[ 0.017768] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns

[ 0.017782] futex hash table entries: 1024 (order: 4, 65536 bytes, linear)

[ 0.017863] pinctrl core: initialized pinctrl subsystem

[ 0.018725] NET: Registered protocol family 16

[ 0.018950] DMA: preallocated 256 KiB pool for atomic coherent allocations

[ 0.019565] cpuidle: using governor ladder

[ 0.019586] cpuidle: using governor menu

[ 0.019689] NET: Registered protocol family 42

[ 0.019878] hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers.

[ 0.019907] hw-breakpoint: maximum watchpoint size is 8 bytes.

[ 0.028605] qcom,gcc-ipq9574 1800000.gcc: Registered ipq9574 GCC clock provider

[ 0.046216] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 0.047745] msm_sps_probe: sps:sps is ready

[ 2.252702] qcom,nsscc-ipq9574 39b00000.nsscc: Registered NSS CC clocks

[ 2.254608] pps_core: LinuxPPS API ver. 1 registered

[ 2.254615] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>

[ 2.254629] PTP clock support registered

[ 2.255180] qcom_glink_rpm rpm-glink: RPM TOC has invalid magic

[ 2.255200] qcom_glink_rpm: probe of rpm-glink failed with error -22

[ 2.255366] Advanced Linux Sound Architecture Driver Initialized.

[ 2.255405] workqueue: max_active 576 requested for napi_workq is out of range, clamping between 1 and 512

[ 2.255995] clocksource: Switched to clocksource arch_sys_counter

[ 2.256515] thermal_sys: Registered thermal governor 'step_wise'

[ 2.256518] thermal_sys: Registered thermal governor 'user_space'

[ 2.258022] NET: Registered protocol family 2

[ 2.258182] IP idents hash table entries: 32768 (order: 6, 262144 bytes, linear)

[ 2.259293] tcp_listen_portaddr_hash hash table entries: 1024 (order: 1, 12288 bytes, linear)

[ 2.259329] TCP established hash table entries: 16384 (order: 4, 65536 bytes, linear)

[ 2.259421] TCP bind hash table entries: 16384 (order: 5, 131072 bytes, linear)

[ 2.259632] TCP: Hash tables configured (established 16384 bind 16384)

[ 2.259692] UDP hash table entries: 1024 (order: 3, 32768 bytes, linear)

[ 2.259743] UDP-Lite hash table entries: 1024 (order: 3, 32768 bytes, linear)

[ 2.259900] NET: Registered protocol family 1

[ 2.259922] PCI: CLS 0 bytes, default 64

[ 2.260365] hw perfevents: enabled with armv7_cortex_a7 PMU driver, 7 counters available

[ 2.261290] Initialise system trusted keyrings

[ 2.261442] workingset: timestamp_bits=14 max_order=19 bucket_order=5

[ 2.264855] squashfs: version 4.0 (2009/01/31) Phillip Lougher

[ 2.264862] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.

[ 2.280723] Key type asymmetric registered

[ 2.280731] Asymmetric key parser 'x509' registered

[ 2.283690] qcom-qmp-phy 7d000.ssphy: 7d000.ssphy supply vdda-phy not found, using dummy regulator

[ 2.283741] qcom-qmp-phy 7d000.ssphy: 7d000.ssphy supply vdda-pll not found, using dummy regulator

[ 2.284029] qcom-qmp-phy 7d000.ssphy: Registered Qcom-QMP phy

[ 2.284364] qcom-qmp-phy fc000.phy: Registered Qcom-QMP phy

[ 2.284669] qcom-qmp-phy 8c000.phy: Registered Qcom-QMP phy

[ 2.287050] bam-dma-engine 704000.dma: num-channels unspecified in dt

[ 2.287059] bam-dma-engine 704000.dma: num-ees unspecified in dt

[ 2.287767] bam-dma-engine 7884000.dma: qcom,controlled-remotely unspecified

[ 2.289071] global timer is null

[ 2.289208] CPU: IPQ9570, SoC Version: 1.1

[ 2.289214] OEM_ID: 121, PROD_ID: 257

[ 2.289517] msm_rpm_log_probe: OK

[ 2.294002] TZ SMMU State: SMMU Stage2 Enabled

[ 2.294099] TZ Log : Will warn on Access Violation, as paniconaccessviolation is not set

[ 2.295587] 78000.qcom,msm-eud: ttyEUD0 at MMIO 0x0 (irq = 93, base_baud = 0) is a EUD UART

[ 2.295932] License Manager driver registered

[ 2.296185] UBI cores power collapsed successfully

[ 2.296281] Context is not provided, skipping key init

[ 2.297271] msm_serial 78b1000.serial: msm_serial: detected port #0

[ 2.297299] msm_serial 78b1000.serial: uartclk = 1824768

[ 2.297329] 78b1000.serial: ttyMSM0 at MMIO 0x78b1000 (irq = 29, base_baud = 114048) is a MSM

[ 2.297344] msm_serial: console setup on port #0

[ 3.063130] printk: console [ttyMSM0] enabled

[ 3.067980] msm_serial: driver initialized

[ 3.072316] random: crng init done

[ 3.077464] brd: module loaded

[ 3.081673] loop: module loaded

[ 3.146012] qca-mdio 90000.mdio: CMN clock reset done

[ 3.146060] qca-mdio 90000.mdio: Reset PHY by GPIO 507

[ 3.371787] shengls : rtk driver rtl826xb_probe

[ 3.372511] shengls : rtk driver rtl826xb_probe

[ 3.375613] qca-mdio 90000.mdio: qca-mdio driver was registered

[ 3.380309] i2c /dev entries driver

[ 3.390848] device-mapper: ioctl: 4.41.0-ioctl (2019-09-16) initialised: dm-devel@redhat.com

[ 3.390868] device-mapper: req-crypt: dm-req-crypt successfully initalized.

[ 3.390868]

[ 3.404460] qti_scm_restart_reason qti,scm_restart_reason: reset_reason : HLOS Panic [0x47]

und @0xdc8a1e54

[ 3.551749] mmc0: SDHCI controller on 7804000.sdhci [7804000.sdhci] using ADMA 64-bit

[ 3.556681]

[ 3.556681] Version Rollback Feature Disabled

[ 3.562155] qcom-q6v5-wcss-pil cd00000.remoteproc: unable to acquire memory-region

[ 3.564344] remoteproc remoteproc0: releasing cd00000.remoteproc

[ 3.571889] qcom-q6v5-wcss-pil: probe of cd00000.remoteproc failed with error -22

[ 3.578643] coresight-tmc 6047000.etf: invalid cti data

[ 3.585747] coresight-tmc 6048000.tmc: unable to acquire Q6 ETR memory-region

[ 3.591860] coresight coresight-etm0: CPU0: ETM v4.0 initialized

[ 3.597748] coresight-etm4x 6293000.etm: CPU0: (null) initialized

[ 3.604077] coresight coresight-etm1: CPU1: ETM v4.0 initialized

[ 3.609788] coresight-etm4x 6297000.etm: CPU1: (null) initialized

[ 3.616169] coresight coresight-etm2: CPU2: ETM v4.0 initialized

[ 3.621824] coresight-etm4x 629b000.etm: CPU2: (null) initialized

[ 3.628195] coresight coresight-etm3: CPU3: ETM v4.0 initialized

[ 3.633889] coresight-etm4x 629f000.etm: CPU3: (null) initialized

[ 3.640156] coresight-stm 6002000.stm: coresight-stm : stm_register_device failed, probing deferred

[ 3.646050] OF: graph: no port node found in /soc/cti@6291000

[ 3.654945] OF: graph: no port node found in /soc/cti@6295000

[ 3.660861] OF: graph: no port node found in /soc/cti@6299000

[ 3.666585] OF: graph: no port node found in /soc/cti@629d000

[ 3.669886] mmc0: new HS400 Enhanced strobe MMC card at address 0001

[ 3.672503] OF: graph: no port node found in /soc/csr@6001000

[ 3.678286] mmcblk0: mmc0:0001 8GTF4R 7.28 GiB

[ 3.684402] coresight-csr 6001000.csr: CSR initialized: coresight-csr

[ 3.690136] mmcblk0boot0: mmc0:0001 8GTF4R partition 1 4.00 MiB

[ 3.695752] NET: Registered protocol family 10

[ 3.701059] mmcblk0boot1: mmc0:0001 8GTF4R partition 2 4.00 MiB

[ 3.711250] mmcblk0rpmb: mmc0:0001 8GTF4R partition 3 512 KiB, chardev (238:0)

[ 3.711393] Segment Routing with IPv6

[ 3.718159] GPT:Primary header thinks Alt. header is not at the end of the disk.

[ 3.724302] NET: Registered protocol family 17

[ 3.728003] GPT:7159807 != 15269887

[ 3.735488] Bridge firewalling registered

[ 3.739706] GPT:Alternate GPT header not at the end of the disk.

[ 3.739709] GPT:7159807 != 15269887

[ 3.739711] GPT: Use GNU Parted to correct GPT errors.

[ 3.739809] GPT: device [179:43] (rootfs) set to be root filesystem

[ 3.743087] 8021q: 802.1Q VLAN Support v1.8

[ 3.747267] mmcblk0: p1 p2 p3 p4 p5 p6 p7 p8 p9 p10 p11 p12 p13 p14 p15 p16 p17 p18 p19 p20 p21 p22 p23 p24 p25 p26 p27 p28 p29 p30 p31 p32 p33 p34 p35 p36 p37 p38 p39 p40 p41 p42 p43 p44

[ 3.753459] Registering SWP/SWPB emulation handler

[ 3.789179] Loading compiled-in X.509 certificates

[ 3.816597] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 3.817194] qcom-pcie 10000000.pci: IRQ mdm2ap_e911 not found

[ 3.825317] qcom-pcie 10000000.pci: host bridge /soc/pci@10000000 ranges:

[ 3.828561] qcom-pcie 10000000.pci: IO 0x10200000..0x102fffff -> 0x10200000

[ 3.835297] qcom-pcie 10000000.pci: MEM 0x10300000..0x17ffffff -> 0x10300000

[ 4.067534] qcom-pcie 10000000.pci: Link up

[ 4.067655] qcom-pcie 10000000.pci: PCI host bridge to bus 0002:00

[ 4.070509] pci_bus 0002:00: root bus resource [bus 00-ff]

[ 4.076780] pci_bus 0002:00: root bus resource [io 0x0000-0xfffff] (bus address [0x10200000-0x102fffff])

[ 4.082228] pci_bus 0002:00: root bus resource [mem 0x10300000-0x17ffffff]

[ 4.091891] pci 0002:00:00.0: [17cb:1108] type 01 class 0x060400

[ 4.098660] pci 0002:00:00.0: reg 0x10: [mem 0x00000000-0x00000fff]

[ 4.104849] pci 0002:00:00.0: PME# supported from D0 D3hot D3cold

[ 4.114014] PCI: bus0: Fast back to back transfers disabled

[ 4.117194] pci 0002:01:00.0: [17cb:1109] type 00 class 0x028000

[ 4.122580] pci 0002:01:00.0: reg 0x10: [mem 0x00000000-0x001fffff 64bit]

[ 4.128892] pci 0002:01:00.0: Max Payload Size set to 256 (was 128, max 256)

[ 4.135767] pci 0002:01:00.0: PME# supported from D0 D3hot D3cold

[ 4.142563] pci 0002:01:00.0: 4.000 Gb/s available PCIe bandwidth, limited by 5 GT/s x1 link at 0002:00:00.0 (capable of 15.752 Gb/s with 8 GT/s x2 link)

[ 4.151649] PCI: bus1: Fast back to back transfers disabled

[ 4.162203] pci 0002:00:00.0: BAR 8: assigned [mem 0x10400000-0x105fffff]

[ 4.167569] pci 0002:00:00.0: BAR 9: assigned [mem 0x10600000-0x107fffff 64bit pref]

[ 4.174501] pci 0002:00:00.0: BAR 0: assigned [mem 0x10300000-0x10300fff]

[ 4.182324] pci 0002:00:00.0: BAR 7: assigned [io 0x1000-0x1fff]

[ 4.189007] pci 0002:01:00.0: BAR 0: assigned [mem 0x10400000-0x105fffff 64bit]

[ 4.195124] pci 0002:00:00.0: PCI bridge to [bus 01-ff]

[ 4.202198] pci 0002:00:00.0: bridge window [io 0x1000-0x1fff]

[ 4.207408] pci 0002:00:00.0: bridge window [mem 0x10400000-0x105fffff]

[ 4.213650] pci 0002:00:00.0: bridge window [mem 0x10600000-0x107fffff 64bit pref]

[ 4.220479] [qcom_pcie_probe ] PCIe: RC enabled during bootup

[ 4.228416] qcom-pcie 10000000.pci: Received Link up event for RC 0

[ 4.234061] qcom-pcie 20000000.pci: IRQ mdm2ap_e911 not found

[ 4.242586] qcom-pcie 20000000.pci: host bridge /soc/pci@20000000 ranges:

[ 4.245874] qcom-pcie 20000000.pci: IO 0x20200000..0x202fffff -> 0x20200000

[ 4.252648] qcom-pcie 20000000.pci: MEM 0x20300000..0x27ffffff -> 0x20300000

[ 4.487533] qcom-pcie 20000000.pci: Link up

[ 4.487626] qcom-pcie 20000000.pci: PCI host bridge to bus 0003:00

[ 4.490506] pci_bus 0003:00: root bus resource [bus 00-ff]

[ 4.496773] pci_bus 0003:00: root bus resource [mem 0x20300000-0x27ffffff]

[ 4.502238] pci 0003:00:00.0: [17cb:1108] type 01 class 0x060400

[ 4.509107] pci 0003:00:00.0: reg 0x10: [mem 0x00000000-0x00000fff]

[ 4.515299] pci 0003:00:00.0: PME# supported from D0 D3hot D3cold

[ 4.524396] PCI: bus0: Fast back to back transfers disabled

[ 4.527636] pci 0003:01:00.0: [17cb:1109] type 00 class 0x028000

[ 4.533031] pci 0003:01:00.0: reg 0x10: [mem 0x00000000-0x001fffff 64bit]

[ 4.539342] pci 0003:01:00.0: Max Payload Size set to 256 (was 128, max 256)

[ 4.546228] pci 0003:01:00.0: PME# supported from D0 D3hot D3cold

[ 4.553002] pci 0003:01:00.0: 8.000 Gb/s available PCIe bandwidth, limited by 5 GT/s x2 link at 0003:00:00.0 (capable of 15.752 Gb/s with 8 GT/s x2 link)

[ 4.562114] PCI: bus1: Fast back to back transfers disabled

[ 4.572647] pci 0003:00:00.0: BAR 8: assigned [mem 0x20400000-0x205fffff]

[ 4.578018] pci 0003:00:00.0: BAR 9: assigned [mem 0x20600000-0x207fffff 64bit pref]

[ 4.584951] pci 0003:00:00.0: BAR 0: assigned [mem 0x20300000-0x20300fff]

[ 4.592772] pci 0003:00:00.0: BAR 7: no space for [io size 0x1000]

[ 4.599453] pci 0003:00:00.0: BAR 7: failed to assign [io size 0x1000]

[ 4.605526] pci 0003:01:00.0: BAR 0: assigned [mem 0x20400000-0x205fffff 64bit]

[ 4.612179] pci 0003:00:00.0: PCI bridge to [bus 01-ff]

[ 4.619419] pci 0003:00:00.0: bridge window [mem 0x20400000-0x205fffff]

[ 4.624622] pci 0003:00:00.0: bridge window [mem 0x20600000-0x207fffff 64bit pref]

[ 4.631618] [qcom_pcie_probe ] PCIe: RC enabled during bootup

[ 4.639499] qcom-pcie 20000000.pci: Received Link up event for RC 0

[ 4.640356] cpufreq: cpufreq_online: CPU0: Running at unlisted freq: 24000 KHz

[ 4.651990] cpufreq: cpufreq_online: CPU0: Unlisted initial frequency changed to: 936000 KHz

[ 4.659305] coresight-tmc 6048000.tmc: unable to acquire Q6 ETR memory-region

[ 4.666985] coresight-tmc 6048000.tmc: invalid cti data

[ 4.674042] sps_register_bam_device: sps:BAM 0x06064000 is registered

[ 4.679261] coresight coresight-stm: STM32 initialized

[ 4.685664] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 4.690785] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 4.698001] hctosys: unable to open rtc device (rtc0)

[ 4.705364] ALSA device list:

[ 4.710225] No soundcards found.

^@[ 4.714701] VFS: Mounted root (squashfs filesystem) readonly on device 259:11.

[ 4.717190] Freeing unused kernel memory: 1024K

[ 4.756039] Run /sbin/init as init process

[ 4.868048] init: Console is alive

[ 4.868209] init: - watchdog -

[ 5.421221] kmodloader: loading kernel modules from /etc/modules-boot.d/*

[ 5.429918] Button Hotplug driver version 0.4.1

[ 5.430959] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 5.433725] kmodloader: done loading kernel modules from /etc/modules-boot.d/*

[ 5.443935] init: - preinit -

touch: /etc/config/network: Read-only file system

mv: can't create '/etc/board.json': Read-only file system

touch: /etc/config/skb_recycler: Read-only file system

uci: Entry not found

uci: Entry not found

uci: Entry not found

uci: Entry not found

Press the [f] key and hit [enter] to enter failsafe mode

Press the [1], [2], [3] or [4] key and hit [enter] to select the debug level

[ 7.780166] EXT4-fs (loop0): recovery complete

[ 7.780799] EXT4-fs (loop0): mounted filesystem with ordered data mode. Opts: (null)

[ 7.784554] mount_root: switching to ext4 overlay

[ 7.833492] procd: - early -

[ 7.833516] procd: - watchdog -

^@[ 8.364032] procd: - watchdog -

[ 8.364203] procd: - ubus -

[ 8.416602] procd: - init -

Please press Enter to activate this console.

Loading cnss2: bdf_pci2=0x02

[ 8.457933] cnss: INFO: IPC Logging is disabled!

[ 8.458178] remoteproc remoteproc0: QCN9224_PCI1 is available

[ 8.461807] cnss[38]: INFO: Platform driver probed successfully. plat 0x8c925df1 tgt 0x1109

[ 8.467404] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 8.468187] remoteproc remoteproc1: QCN9224_PCI2 is available

[ 8.486167] cnss[39]: INFO: Platform driver probed successfully. plat 0x093349c1 tgt 0x1109

[ 8.488563] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 8.490243] remoteproc remoteproc2: QCN9224_PCI3 is available

[ 8.504476] cnss[3a]: INFO: Platform driver probed successfully. plat 0x171451d3 tgt 0x1109

[ 8.509865] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 8.518434] cnss[38]: INFO: PCI device 1ce3c34f probed successfully

[ 8.518829] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 8.525580] cnss[39]: INFO: PCI device 184d8571 probed successfully

[ 8.531789] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 8.538940] cnss: INFO: cnss_plat_ipc_qmi_svc_init: CNSS Platform IPC QMI Service is started

[ 8.545123] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 8.600679] urngd: v1.0.2 started.

No License partition in device

[ 8.654244] kmodloader: loading kernel modules from /etc/modules.d/*

Trying to read license files from rootfs image

No PFM license files in rootfs

[ 8.721185] ssdk_dt_parse_interrupt[802]:INFO:intr-gpio does not exist

[ 8.721490] ssdk_dt_parse_led[1112]:INFO:current dts led_source_num is 0

[ 8.727841] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 8.734271] ssdk_phy_driver_init[370]:INFO:dev_id = 0, phy_adress = 3, phy_id = 0xffff phytype doesn't match

[ 8.740583] ssdk_phy_driver_init[370]:INFO:dev_id = 0, phy_adress = 0, phy_id = 0x1ccaf3 phytype doesn't match

[ 8.750551] ssdk_phy_driver_init[370]:INFO:dev_id = 0, phy_adress = 31, phy_id = 0x1ccaf3 phytype doesn't match

[ 8.760298] malibu_phy_api_ops_init[2855]:INFO:qca probe malibu phy driver succeeded!

[ 8.773299] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

acfg_tool: Issuing blocking call to wait for events

[ 9.008047] qca_appe_tdm_hw_init[302]:INFO:appe scheduler tdm mode =0

[ 9.008072] qca_appe_tdm_hw_init[344]:INFO:appe tdm setup num=100

[ 9.026111] cnss: INFO: cnss_plat_ipc_qmi_reg_client_req_handler: QMI Client Connected. QMI Socket Node: 1 Port: 16394 ID: 1

[ 9.026127] cnss: INFO: CNSS Daemon connected

[ 9.037238] cnss: INFO: cnss_plat_ipc_qmi_init_setup_req_handler: MAC: 0 HW_TRC: 0 CAL: 0

[ 10.188002] qca_hppe_interface_mode_init[1477]:INFO:appe interface mode initialization

[ 10.189434] qca_appe_portctrl_hw_init[407]:INFO:appe portctrl initialization

[ 10.197183] qca_appe_rss_hash_hw_init[595]:INFO:appe rss hash initialization: hash_seed 0xc1c12bc1

[ 10.202004] regi_init[3918]:INFO:Initializing APPE Done!!

[ 10.210823] regi_init[3986]:INFO:qca-ssdk module init succeeded!

[ 10.217201] nat46: module (version 1182f30785e4274913f01a8c3d7e1b5437ae3819) loaded.

[ 10.222937] PPP generic driver version 2.4.2

[ 10.229995] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 10.230480] NET: Registered protocol family 24

[ 10.244601] dp1: ppe offload disabled: 1 for macid 1

[ 10.245595] PPE-RULE module loaded successfully

[ 10.245743] dp1: Switch attached to macid 1 status: 0

[ 10.255152] (unnamed net_device) (uninitialized): netif_napi_add() called with weight 512

[ 10.260837] ppe_port_vsi_get[477]:INFO:VSI is not configured on port 0x1

[ 10.264063] cfg80211: Loading compiled-in X.509 certificates for regulatory database

[ 10.268631] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 10.282951] dp2: ppe offload disabled: 1 for macid 2

[ 10.283184] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 10.290049] dp2: Switch attached to macid 2 status: 0

[ 10.302274] ppe_port_vsi_get[477]:INFO:VSI is not configured on port 0x2

[ 10.307463] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 10.315188] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 10.316406] dp3: ppe offload disabled: 1 for macid 3

[ 10.328321] dp3: Switch attached to macid 3 status: 0

[ 10.333509] ppe_port_vsi_get[477]:INFO:VSI is not configured on port 0x3

[ 10.338576] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 10.341474] dp5: ppe offload disabled: 0 for macid 5

[ 10.345352] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 10.352183] dp5: Switch attached to macid 5 status: 0

[ 10.364773] ppe_port_vsi_get[477]:INFO:VSI is not configured on port 0x5

[ 10.369663] shengls : init rtk driver

[ 10.376708] Realtek RTL8261N/8261BE/8251L 90000.mdio:00: rtkphy_config_init:142 [RTL8261N/RTL826XB] phy_id: 0x1CCAF3 PHYAD:0

[ 10.420287] cfg80211: Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'

[ 10.420405] platform regulatory.0: Direct firmware load for regulatory.db failed with error -2

[ 10.425691] platform regulatory.0: Falling back to sysfs fallback for: regulatory.db

[ 10.427074] ntfs: driver 2.1.32 [Flags: R/O MODULE].

[ 10.444126] NET: Registered protocol family 15

[ 10.444736] cfg80211: failed to load regulatory.db

[ 10.447877] Initializing XFRM netlink socket

[ 10.458556] tun: Universal TUN/TAP device driver, 1.6

[ 10.540292] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 10.540679] dp6: ppe offload disabled: 0 for macid 6

[ 10.546409] dp6: Switch attached to macid 6 status: 0

[ 10.551630] ppe_port_vsi_get[477]:INFO:VSI is not configured on port 0x6

[ 10.556513] shengls : init rtk driver

[ 10.563234] Realtek RTL8261N/8261BE/8251L 90000.mdio:1f: rtkphy_config_init:142 [RTL8261N/RTL826XB] phy_id: 0x1CCAF3 PHYAD:31

[ 10.709621] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 10.709862] **********************************************************

[ 10.715718] * NSS Data Plane driver

[ 10.722253] **********************************************************

[ 10.729928] l2tp_core: L2TP core driver, V2.0

[ 10.732665] l2tp_netlink: L2TP netlink interface

[ 10.737335] sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver

[ 10.742090] l2tp_eth: L2TP ethernet pseudowire support (L2TPv3)

[ 10.747479] l2tp_ip: L2TP IP encapsulation support (L2TPv3)

[ 10.753367] l2tp_ip6: L2TP IP encapsulation support for IPv6 (L2TPv3)

[ 10.759912] gre: GRE over IPv4 demultiplexor driver

[ 10.765637] ip_gre: GRE over IPv4 tunneling driver

[ 10.770924] ip6_gre: GRE over IPv6 tunneling driver

[ 10.776570] Ethernet Channel Bonding Driver: v3.7.1 (April 27, 2011)

[ 10.784904] PPTP driver version 0.8.5

[ 10.796609] cryptodev: driver 1.10 loaded.

[ 10.799588] openvswitch: Open vSwitch switching datapath

[ 10.857522] nss_ppe_lag_register_event[418]:baea5000: Bond interface (bond0) is created=0

[ 10.857542] nss_ppe_lag_init[614]:LAG Manager Installed

[ 10.858026] loading qca-wifi

[ 10.865982] diag: failed to find diag_dload imem node

[ 10.879014] TRACK: P[0] PMask[4]

[ 10.879030] TRACK: P[1] PMask[4]

[ 10.881292] TRACK: P[2] PMask[4]

[ 10.884772] TRACK: P[3] PMask[4]

[ 10.887728] TRACK: P[4] PMask[4]

[ 10.890925] TRACK: P[5] PMask[4]

[ 10.894137] TRACK: P[6] PMask[4]

[ 10.908316] QCA multicast snooping installed successfully

[ 11.037358] bbf08a10: ifpp.bin version(0x7330)

qcawifi configuration is disable

[ 11.137851] bbf08a10: ipue.bin version(0x7330)

[ 11.244740] bbf08a10: ofpp.bin version(0x7330)

***Service Aware Wifi: 0 in Alder platfrom***

[ 11.345048] bbf08a10: opue.bin version(0x7330)

[ 11.345136] b6f80040: DMA ring(0) configured and Rx mapped to cpu(3)

[ 11.348461] b6f81240: DMA ring(1) configured and Rx mapped to cpu(2)

[ 11.354942] b6f82440: DMA ring(2) configured and Rx mapped to cpu(1)

[ 11.361258] b6f83640: DMA ring(3) configured and Rx mapped to cpu(0)

[ 11.367603] b6f84840: DMA ring(4) configured and Rx mapped to cpu(0)

[ 11.373918] b6f85a40: DMA ring(5) configured and Rx mapped to cpu(1)

[ 11.380262] b6f86c40: DMA ring(6) configured and Rx mapped to cpu(2)

[ 11.386597] b6f87e40: DMA ring(7) configured and Rx mapped to cpu(3)

[ 11.392994] bbf08a00: Redirection enabled, map(80f0) error ring(4)

[ 11.399303] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 11.413830] cannot find nss-macsec0 node

[ 11.413887] cannot find nss-macsec1 node

[ 11.416873] cannot find nss-macsec2 node

[ 11.420780] cannot find nss-macsec3 node

[ 11.424629] nss_macsec init success

[ 11.432765] l2tp_ppp: PPPoL2TP kernel driver, V2.0

[ 11.436372] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 11.441252] usbcore: registered new interface driver usbfs

[ 11.443851] usbcore: registered new interface driver hub

[ 11.449373] usbcore: registered new device driver usb

[ 11.460863] SCSI subsystem initialized

[ 11.462047] usbcore: registered new interface driver usb-storage

[ 11.463996] Mirror/redirect action on

[ 11.473629] u32 classifier

[ 11.473641] input device check on

[ 11.475821] Actions configured

[ 11.481841] GACT probability on

[ 11.483700] Simple TC action Loaded

[ 11.492468] fuse: init (API version 7.31)

[ 11.495044] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 11.497606] qcom-qusb2-phy 7b000.qusb: 7b000.qusb supply vdda-pll not found, using dummy regulator

[ 11.502649] qcom-qusb2-phy 7b000.qusb: 7b000.qusb supply vdda-phy-dpdm not found, using dummy regulator

[ 11.511853] qcom-qusb2-phy 7b000.qusb: Registered Qcom-QUSB2 phy

[ 11.520914] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 11.528186] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller

[ 11.534090] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 1

[ 11.540496] xhci-hcd xhci-hcd.0.auto: hcc params 0x0220fe65 hci version 0x110 quirks 0x0000000000010010

[ 11.547204] xhci-hcd xhci-hcd.0.auto: irq 99, io mem 0x08a00000

[ 11.556996] hub 1-0:1.0: USB hub found

[ 11.562428] hub 1-0:1.0: 1 port detected

[ 11.566484] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller

[ 11.570281] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 2

[ 11.571079] nf_conntrack_rtsp v0.7 loading

[ 11.575573] xhci-hcd xhci-hcd.0.auto: Host supports USB 3.0 SuperSpeed

[ 11.587356] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.

[ 11.591736] nf_nat_rtsp v0.7 loading

[ 11.594250] hub 2-0:1.0: USB hub found

[ 11.605655] hub 2-0:1.0: 1 port detected

[ 11.609528] qcom,cpr3-npu-regulator a4000.npu-cpr: NPU CPR valid fuse count: 2

[ 11.614722] PPP MPPE Compression module registered

[ 11.621911] usbcore: registered new interface driver uas

[ 11.636111] xt_time: kernel timezone is -0000

[ 11.637559] kmodloader: done loading kernel modules from /etc/modules.d/*

MLD Single Netdev is ENABLED

[ 12.271973] edma_cfg_rx_rps[1591]:EDMA RPS configured to use 3 cores

[ 12.429587] wlan: [1822:I:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: Could not find active PSOCs

[ 12.429608] wlan: [1822:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 0

[ 12.437456] wlan: [1822:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 1

[ 12.445851] wlan: [1822:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 2

[ 12.454292] wlan: [1822:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 3

[ 12.462703] wlan: [1822:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 4

[ 12.471111] wlan: [1822:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 0

[ 12.479538] wlan: [1822:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 1

[ 12.487958] wlan: [1822:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 2

[ 12.496378] wlan: [1822:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 3

[ 12.504791] wlan: [1822:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 4

[ 12.513233] wlan: [1822:I:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: Could not find active PSOCs

[ 12.521650] wlan: [1822:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 0

[ 12.530417] wlan: [1822:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 1

[ 12.538835] wlan: [1822:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 2

[ 12.547260] wlan: [1822:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 3

[ 12.555660] wlan: [1822:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 4

[ 12.564101] wlan: [1822:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 0

[ 12.572515] wlan: [1822:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 1

[ 12.580937] wlan: [1822:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 2

[ 12.589351] wlan: [1822:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 3

[ 12.597768] wlan: [1822:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 4

[ 12.610530] wlan: [1822:I:ANY] qdf_ini_parse: INI values read: 98

[ 12.614601] wlan: [1822:I:ANY] qdf_ini_parse: INI file parse successful

[ 12.623165] wlan: [1822:I:ANY] qdf_ini_parse: INI values read: 60

[ 12.627032] wlan: [1822:I:ANY] qdf_ini_parse: INI file parse successful

[ 12.640306] wlan: [2089:I:ANY] register_telemetry_agent_ops: Registered Telemetry Agent ops: ed99388f

******FW ini file not found******

*****cnssdaemon pid=543*********

*****hostapd pid=1804

1808*********

*****supplicant pid=1824*********

[ 12.721794] ECM init

[ 12.721849] ECM database jhash random seed: 0xdd5ed3f8

[ 12.796127] ECM init complete

[ 12.806229] ECM OVS Test INIT

[ 12.825715] br-lan: port 1(eth2) entered blocking state

[ 12.825733] br-lan: port 1(eth2) entered disabled state

[ 12.830072] nss_ppe_lag_update_slave[131]:b6347df8: Upper dev is not LAG for dev: eth2

[ 12.834977] ppe_port_vsi_get[477]:INFO:VSI is not configured on port 0x3

[ 12.843688] device eth2 entered promiscuous mode

[ 12.850162] Set globle Ageing time set to 300 which is same for all bridge

[ 12.857719] br-lan: port 2(eth3) entered blocking state

[ 12.861085] br-lan: port 2(eth3) entered disabled state

[ 12.866842] nss_ppe_lag_update_slave[131]:b6347df8: Upper dev is not LAG for dev: eth3

[ 12.871435] ppe_port_vsi_get[477]:INFO:VSI is not configured on port 0x5

[ 12.879664] device eth3 entered promiscuous mode

[ 12.886455] Set globle Ageing time set to 300 which is same for all bridge

[ 12.892711] br-lan: port 3(eth4) entered blocking state

[ 12.897723] br-lan: port 3(eth4) entered disabled state

[ 12.903031] nss_ppe_lag_update_slave[131]:b6347df8: Upper dev is not LAG for dev: eth4

[ 12.907914] ppe_port_vsi_get[477]:INFO:VSI is not configured on port 0x6

[ 12.916732] device eth4 entered promiscuous mode

[ 12.923275] Set globle Ageing time set to 300 which is same for all bridge

Setting default pvid for br-lan (lan) to 0 while doing ifup

[ 13.127146] smart_antenna: module license 'Proprietary' taints kernel.

[ 13.127163] Disabling lock debugging due to kernel taint

[ 13.142588] ./IPQ9574/regdb.bin ./qcn9224/amss_dualmac.bin ./qcn9224/regdb.bin ./qcn9224/amss.bin ./qcn9000/regdb.bin ./qcn9000/amss.bin

[ 13.219861] wlan: [2953:E:ANY] qdf_file_read: Failed to read file mlo_config.ini

[ 13.219881] wlan: [2953:E:ANY] qdf_ini_parse: Failed to read *.ini file @ mlo_config.ini

[ 13.226423] wlan: [2953:I:ANY] init_mlo_cfg: Set default MLO config

[ 13.234390] cnss[38]: INFO: cnss_set_static_mlo_config: Default MLO Config updated for QCN9224_PCI1

[ 13.234392] cnss[39]: INFO: cnss_set_static_mlo_config: Default MLO Config updated for QCN9224_PCI2

[ 13.241108] cnss[3a]: INFO: Default MLO configuration is set!

[ 13.249662] wlan: [2953:I:ANY] =======ol_if_register_wifi3_0==========

[ 13.249662]

[ 13.264353] wlan: [2953:I:ANY] mlo_setup_update_total_socs: Grp_id 0 Total MLO socs = 2 links = 0

[ 13.272567] remoteproc remoteproc0: powering up QCN9224_PCI1

[ 13.281781] remoteproc remoteproc0: Direct firmware load for qcn9224/amss.bin failed with error -2

[ 13.286916] remoteproc remoteproc0: Falling back to sysfs fallback for: qcn9224/amss.bin

hyd: ERROR: Bridge is not attached; start hyfi-bridging first

[ 13.300810] remoteproc remoteproc0: request_firmware failed: -12

[ 13.309370] cnss[38]: ERR: cnss_register_subsys: Failed to boot device QCN9224_PCI1 (-12)

[ 13.315373] qmi_history_index [127]

[ 13.323629] cnss[38]: ERR: ASSERT at line 4886

[ 13.327012] ------------[ cut here ]------------

[ 13.331252] kernel BUG at /projects/xer5_1024/qca_networking/work_fsw/qsdk/build_dir/target-arm/linux-ipq95xx_ipq95xx_32/qca-cnss-g43690d1/main.c:4886!

[ 13.336040] Internal error: Oops - BUG: 0 [#1] PREEMPT SMP ARM

[ 13.349309] Modules linked in: wifi_3_0(+) smart_antenna(P) qca_ol ecm_ovs ecm qca_spectral telemetry_agent umac qdf mem_manager nf_flow_table_ipv6 nf_flow_table_ipv4 nf_flow_table_inet ipt_REJECT xt_time xt_tcpudp xt_tcpmss xt_string xt_statistic xt_state xt_recent xt_quota xt_policy xt_pkttype xt_physdev xt_owner xt_nat xt_multiport xt_mark xt_mac xt_limit xt_length xt_hl xt_helper xt_esp xt_ecn xt_dscp xt_conntrack xt_connmark xt_connlimit xt_connbytes xt_comment xt_bpf xt_addrtype xt_TCPMSS xt_REDIRECT xt_NETMAP xt_MASQUERADE xt_LOG xt_HL xt_FLOWOFFLOAD xt_DSCP xt_CT xt_CLASSIFY uas ts_fsm ts_bm ppp_mppe ppp_async nft_reject_ipv6 nft_reject_ipv4 nft_reject_inet nft_reject nft_redir nft_quota nft_numgen nft_nat nft_masq nft_log nft_limit nft_fwd_netdev nft_flow_offload nft_dup_netdev nft_ct nft_counter nf_tables nf_reject_ipv4 nf_nat_tftp nf_nat_snmp_basic nf_nat_sip nf_nat_rtsp nf_nat_pptp nf_nat_irc nf_nat_h323 nf_nat_ftp nf_nat_amanda nf_log_ipv4 nf_flow_table_hw nf_flow_table

[ 13.349373] nf_dup_netdev nf_conntrack_tftp nf_conntrack_snmp nf_conntrack_sip nf_conntrack_rtsp nf_conntrack_rtcache nf_conntrack_pptp nf_conntrack_netlink nf_conntrack_irc nf_conntrack_h323 nf_conntrack_ftp nf_conntrack_broadcast ts_kmp nf_conntrack_amanda macvlan iptable_raw iptable_nat iptable_mangle iptable_filter ipt_ah ipt_ECN ip_tables arptable_filter arpt_mangle arp_tables ahci libahci libata sd_mod phy_qcom_qusb2 dwc3 dwc3_qcom fuse sch_teql sch_sfq sch_red sch_prio sch_pie sch_multiq sch_gred sch_fq sch_dsmark sch_codel sch_cake em_text em_nbyte em_meta em_cmp act_simple act_police act_pedit act_ipt act_gact act_csum act_connmark sch_tbf sch_ingress sch_htb sch_hfsc em_u32 cls_u32 cls_tcindex cls_route cls_matchall cls_fw cls_flow cls_basic act_skbedit act_mirred usb_storage scsi_mod xhci_plat_hcd xhci_pci xhci_hcd usbcore leds_gpio qca_nss_ppe_tunipip6 qca_nss_ppe_vxlanmgr qca_nss_ppe_netlink qca_nss_ppe_mapt qca_nss_ppe_l2tp l2tp_ppp qca_nss_ppe_gretap qca_nss_ppe_tun g_diag

[ 13.420107] qca_nss_ppe_qdisc qca_nss_macsec qca_nss_eip qca_mcs diagchar usb_f_diag crc_ccitt qca_nss_ppe_pppoe_mgr qca_nss_ppe_lag qca_nss_ppe_ds qca_nss_ppe_bridge_mgr qca_nss_ppe_vlan hyfi_bridging libcomposite udc_core usb_common qca_ovsmgr openvswitch nf_conncount xt_sctp emesh_sp cryptodev xt_set ip_set_list_set ip_set_hash_netportnet ip_set_hash_netport ip_set_hash_netnet ip_set_hash_netiface ip_set_hash_net ip_set_hash_mac ip_set_hash_ipportnet ip_set_hash_ipportip ip_set_hash_ipport ip_set_hash_ipmark ip_set_hash_ip ip_set_bitmap_port ip_set_bitmap_ipmac ip_set_bitmap_ip ip_set nfnetlink ip6table_nat nf_nat nf_conntrack pptp nf_defrag_ipv4 libcrc32c ip6t_NPT nf_log_ipv6 nf_log_common ip6table_mangle ip6table_filter ip6_tables ip6t_REJECT x_tables nf_reject_ipv6 msdos bonding ip6_gre ip_gre gre ifb l2tp_ip6 l2tp_ip l2tp_eth sit l2tp_netlink l2tp_core ipcomp6 xfrm6_tunnel esp6 ah6 qca_nss_ppe_vp xfrm4_tunnel ipcomp esp4 ah4 ip6_tunnel tunnel6 tunnel4 ip_tunnel veth tun snd_rawmidi

[ 13.507427] snd_seq_device

No q[ ca-m13.57147ad m6] modulc_ate entachable: end

[ 13.595220] snd_pcm_oss snd_mixer_oss snd_hwdep snd_compress xfrm_user xfrm_ipcomp af_key xfrm_algo vfat fat ntfs cfg80211 nls_utf8 nls_iso8859_1 nls_cp437 nls_base vxlan udp_tunnel ip6_udp_tunnel nsh qca_nss_sfe pppoe qca_nss_ppe_rule qca_nss_dp pppox qca_nss_ppe ppp_generic nat46 slhc qca_ssdk nf_defrag_ipv6 md5 ipq_cnss2 bootconfig gpio_button_hotplug button_hotplug input_core

[ 13.595251] CPU: 1 PID: 2953 Comm: insmod Tainted: P 5.4.213 #0

[ 13.658427] Hardware name: Generic DT based system

[ 13.666082] PC is at cnss_register_subsys+0x244/0x2b8 [ipq_cnss2]

[ 13.670683] LR is at cnss_register_subsys+0x234/0x2b8 [ipq_cnss2]

[ 13.676827] pc : [<3f02f6ec>] lr : [<3f02f6dc>] psr: 60000013

[ 13.682903] sp : b6323cd0 ip : 00000000 fp : 4210267c

[ 13.688979] r10: 0000000b r9 : 3f0796c4 r8 : 42b06e48

[ 13.694187] r7 : 00000000 r6 : 3f0796c0 r5 : fffffff4 r4 : bbfb0040

[ 13.699398] r3 : a2540533 r2 : a2540533 r1 : bc1ed404 r0 : 00000022

[ 13.705996] Flags: nZCv IRQs on FIQs on Mode SVC_32 ISA ARM Segment user

[ 13.712505] Control: 10c0383d Table: b45d806a DAC: 00000055

[ 13.719712] Process insmod (pid: 2953, stack limit = 0x3a51c5e0)

[ 13.725440] Stack: (0xb6323cd0 to 0xb6324000)

[ 13.731515] 3cc0: fffffff4 bbc01c00 00000dc0 bbc01c00

[ 13.735773] 3ce0: 42b9b474 a2540533 bbfb0040 00000000 3f0796c0 00000000 3f0796c0 3f02f7fc

[ 13.743931] 3d00: b668d440 00000000 00000001 b609da00 00000000 c0662c58 0000000b c0ac18cc

[ 13.752089] 3d20: 00000002 00000001 00000001 c0655158 00000002 00000001 00000001 00000002

[ 13.760250] 3d40: 00000001 be5ae1d4 00000000 427872c4 b375c300 422a23a8 b375c300 42b06e48

[ 13.768411] 3d60: 00000000 02006e48 00000100 00000000 00000100 01000000 01010000 00000001

[ 13.776571] 3d80: 00010001 00000000 00000000 00000000 00000000 00000000 00000000 a2540533

[ 13.784730] 3da0: b375d1c0 42b06e48 be5ae000 ffffc000 00000000 42b6f014 b375d1e4 b6323f28

[ 13.792890] 3dc0: 42194364 4210267c 42b06e48 20000013 8040003f b6937b40 b6937b40 00000001

[ 13.801048] 3de0: 4287f4f4 bd296d64 bd2bc30c a2540533 b69bfb60 8040003f bd2911f8 bbc01e00

[ 13.809209] 3e00: 00000cc0 bbc01e00 42194364 4222ae5c 429782a4 a2540533 00000001 c06a5800

[ 13.817368] 3e20: 00000001 b375d280 c06a5848 b375d1c0 b375d1e4 421961a0 c06a5800 7979f000

[ 13.825525] 3e40: c06a5800 00000001 00000001 42198350 c06a580c 00007fff c06a5800 42194f20

[ 13.833689] 3e60: 00000000 be5db570 c09ddfd0 be5b0000 428756e4 c06a59e0 0000065f 36ffb230

[ 13.841848] 3e80: b6a6d000 000001c2 00002cc0 ffffffff 00000002 00000400 c0656024 00000067

[ 13.850003] 3ea0: 00000000 00000000 00000000 00000000 6e72656b 00006c65 00000000 00000000

[ 13.858167] 3ec0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000

[ 13.866327] 3ee0: 00000000 00000000 00000000 a2540533 00000000 00001048 36f48058 c09de048

[ 13.874488] 3f00: 00000000 36ffb230 42874df7 ffffc000 42868530 421986a8 00000000 00000000

[ 13.882647] 3f20: 00000000 42b06e48 c0948b2a c094e480 c081d000 001c1048 c09dd968 c09dd7bc

[ 13.890805] 3f40: c097d708 00137000 001467f0 0003dbbc 001536f3 00000000 00000000 00000000

[ 13.898964] 3f60: 0003dbac 00000029 0000002a 00000020 00000000 00000019 00000000 a2540533

[ 13.907126] 3f80: 00485c39 00000000 00000000 36ffe1b4 00000080 42101204 b6320000 00000080

[ 13.915285] 3fa0: 00000000 42101000 00000000 00000000 36d87010 001c1048 36ffb230 00000013

[ 13.923445] 3fc0: 00000000 00000000 36ffe1b4 00000080 36ffb230 001c1048 001c1048 00000000

[ 13.931605] 3fe0: 3ef85ce4 3ef85cc0 00484ff0 36faf734 60000010 36d87010 00000000 00000000

[ 13.939809] [<3f02f6ec>] (cnss_register_subsys [ipq_cnss2]) from [<3f02f7fc>] (cnss_wlan_probe_driver+0x9c/0x218 [ipq_cnss2])

[ 13.948040] [<3f02f7fc>] (cnss_wlan_probe_driver [ipq_cnss2]) from [<c0ac18cc>] (pld_register_driver+0x11c/0x154 [qca_ol])

[ 13.959480] [<c0ac18cc>] (pld_register_driver [qca_ol]) from [<c0655158>] (init_ath_ahb_3_0+0xc/0x80 [wifi_3_0])

[ 13.970439] [<c0655158>] (init_ath_ahb_3_0 [wifi_3_0]) from [<be5ae1d4>] (init_module+0x1d4/0x1000 [wifi_3_0])

[ 13.980664] [<be5ae1d4>] (init_module [wifi_3_0]) from [<4210267c>] (do_one_initcall+0x78/0x1ac)

[ 13.990286] [<4210267c>] (do_one_initcall) from [<421961a0>] (do_init_module+0x38/0x1c8)

[ 13.999224] [<421961a0>] (do_init_module) from [<42198350>] (load_module+0x1f70/0x217c)

[ 14.007295] [<42198350>] (load_module) from [<421986a8>] (sys_init_module+0x14c/0x1ac)

[ 14.015020] [<421986a8>] (sys_init_module) from [<42101000>] (ret_fast_syscall+0x0/0x50)

[ 14.023006] Exception stack(0xb6323fa8 to 0xb6323ff0)

[ 14.031250] 3fa0: 00000000 00000000 36d87010 001c1048 36ffb230 00000013

[ 14.036202] 3fc0: 00000000 00000000 36ffe1b4 00000080 36ffb230 001c1048 001c1048 00000000

[ 14.044360] 3fe0: 3ef85ce4 3ef85cc0 00484ff0 36faf734

[ 14.052518] Code: ea000002 e3011316 e59f0070 eb0064cf (e7f001f2)

[ 14.057553] ---[ end trace bc9f238c682e29d4 ]---

[ 14.063627] Kernel panic - not syncing: Fatal exception

[ 14.068318] CPU0: stopping

[ 14.073263] CPU: 0 PID: 3456 Comm: e2fsck Tainted: P D 5.4.213 #0

[ 14.076043] Hardware name: Generic DT based system

[ 14.083599] [<4210f5a4>] (unwind_backtrace) from [<4210b88c>] (show_stack+0x10/0x14)

[ 14.088201] [<4210b88c>] (show_stack) from [<4276fd34>] (dump_stack+0x88/0xa8)

[ 14.096097] [<4276fd34>] (dump_stack) from [<4210e64c>] (handle_IPI+0xd4/0x17c)

[ 14.103130] [<4210e64c>] (handle_IPI) from [<423dfd44>] (gic_handle_irq+0x84/0x90)

[ 14.110334] [<423dfd44>] (gic_handle_irq) from [<42101a78>] (__irq_svc+0x58/0x8c)

[ 14.117970] Exception stack(0xb29c3d90 to 0xb29c3dd8)

[ 14.125520] 3d80: 00000001 00000004 00000003 bc1f7ab0

[ 14.130559] 3da0: 42b06fb4 bc1e5bc0 bc1e5bc8 42b06f30 bc1e5bc4 42a46b40 00000001 42b06fb4

[ 14.138717] 3dc0: 00000000 b29c3de0 42193270 42193258 00000013 ffffffff

[ 14.146877] [<42101a78>] (__irq_svc) from [<42193258>] (smp_call_function_many+0x2d4/0x324)

[ 14.153302] [<42193258>] (smp_call_function_many) from [<421933cc>] (on_each_cpu_mask+0x30/0x9c)

[ 14.161635] [<421933cc>] (on_each_cpu_mask) from [<42193520>] (on_each_cpu_cond_mask+0xe8/0x144)

[ 14.170664] [<42193520>] (on_each_cpu_cond_mask) from [<42193594>] (on_each_cpu_cond+0x18/0x24)

[ 14.179432] [<42193594>] (on_each_cpu_cond) from [<4226f160>] (invalidate_bh_lrus+0x20/0x30)

[ 14.187852] [<4226f160>] (invalidate_bh_lrus) from [<42274868>] (kill_bdev+0x28/0x3c)

[ 14.196531] [<42274868>] (kill_bdev) from [<422764f8>] (__blkdev_put+0xb4/0x1f0)

[ 14.204256] [<422764f8>] (__blkdev_put) from [<42276768>] (blkdev_close+0x18/0x20)

[ 14.211722] [<42276768>] (blkdev_close) from [<4223cb2c>] (__fput+0xf8/0x20c)

[ 14.219101] [<4223cb2c>] (__fput) from [<4213720c>] (task_work_run+0xa0/0xc4)

[ 14.226306] [<4213720c>] (task_work_run) from [<4210b1ec>] (do_work_pending+0x448/0x4a4)

[ 14.233423] [<4210b1ec>] (do_work_pending) from [<42101068>] (slow_work_pending+0xc/0x20)

[ 14.241581] Exception stack(0xb29c3fb0 to 0xb29c3ff8)

[ 14.249652] 3fa0: 00000000 00000000 00000000 00000000

[ 14.254690] 3fc0: 00000000 00000000 00000000 00000006 36f091b4 00000400 36e8933c 00000000

[ 14.262849] 3fe0: 3e9cea48 3e9cea38 36edcaac 36edbf44 60000010 00000003

[ 14.271007] CPU3: stopping

[ 14.277428] CPU: 3 PID: 0 Comm: swapper/3 Tainted: P D 5.4.213 #0

[ 14.280209] Hardware name: Generic DT based system

[ 14.287762] [<4210f5a4>] (unwind_backtrace) from [<4210b88c>] (show_stack+0x10/0x14)

[ 14.292364] [<4210b88c>] (show_stack) from [<4276fd34>] (dump_stack+0x88/0xa8)

[ 14.300263] [<4276fd34>] (dump_stack) from [<4210e64c>] (handle_IPI+0xd4/0x17c)

[ 14.307294] [<4210e64c>] (handle_IPI) from [<423dfd44>] (gic_handle_irq+0x84/0x90)

[ 14.314500] [<423dfd44>] (gic_handle_irq) from [<42101a78>] (__irq_svc+0x58/0x8c)

[ 14.322137] Exception stack(0xbbcc3f60 to 0xbbcc3fa8)

[ 14.329688] 3f60: 00000000 00005620 bc212ab4 42117ca0 00000000 ffffc000 00000000 42b06e48

[ 14.334725] 3f80: 00000008 42b06ea8 42a454f0 00000000 42b95730 bbcc3fb0 42108b38 42108b3c

[ 14.342883] 3fa0: 60000013 ffffffff

[ 14.351040] [<42101a78>] (__irq_svc) from [<42108b3c>] (arch_cpu_idle+0x2c/0x38)

[ 14.354345] [<42108b3c>] (arch_cpu_idle) from [<4214590c>] (do_idle+0xf8/0x274)

[ 14.361982] [<4214590c>] (do_idle) from [<42145d30>] (cpu_startup_entry+0x18/0x1c)

[ 14.369013] [<42145d30>] (cpu_startup_entry) from [<42102390>] (__enable_mmu+0x0/0x30)

[ 14.376651] CPU2: stopping

[ 14.384546] CPU: 2 PID: 0 Comm: swapper/2 Tainted: P D 5.4.213 #0

[ 14.387240] Hardware name: Generic DT based system

[ 14.394793] [<4210f5a4>] (unwind_backtrace) from [<4210b88c>] (show_stack+0x10/0x14)

[ 14.399396] [<4210b88c>] (show_stack) from [<4276fd34>] (dump_stack+0x88/0xa8)

[ 14.407295] [<4276fd34>] (dump_stack) from [<4210e64c>] (handle_IPI+0xd4/0x17c)

[ 14.414326] [<4210e64c>] (handle_IPI) from [<423dfd44>] (gic_handle_irq+0x84/0x90)

[ 14.421530] [<423dfd44>] (gic_handle_irq) from [<42101a78>] (__irq_svc+0x58/0x8c)

[ 14.429167] Exception stack(0xbbcbff60 to 0xbbcbffa8)

[ 14.436719] ff60: 00000000 00004c90 bc203ab4 42117ca0 00000000 ffffc000 00000000 42b06e48

[ 14.441757] ff80: 00000004 42b06ea8 42a454f0 00000000 42b95730 bbcbffb0 42108b38 42108b3c

[ 14.449915] ffa0: 60000013 ffffffff

[ 14.458072] [<42101a78>] (__irq_svc) from [<42108b3c>] (arch_cpu_idle+0x2c/0x38)

[ 14.461375] [<42108b3c>] (arch_cpu_idle) from [<4214590c>] (do_idle+0xf8/0x274)

[ 14.469013] [<4214590c>] (do_idle) from [<42145d30>] (cpu_startup_entry+0x18/0x1c)

[ 14.476044] [<42145d30>] (cpu_startup_entry) from [<42102390>] (__enable_mmu+0x0/0x30)

[ 14.483685] cnss: ERR: pci_priv is NULL

[ 14.491578] cnss: ERR: pci_priv is NULL

[ 14.495310] cnss: ERR: pci_priv is NULL

[ 14.499142] The reading for sensor 3 is 0x00203204

[ 14.502952] The reading for sensor 4 is 0x002041fe

[ 14.507852] Couldn't get reading for sensor 5

[ 14.512586] The reading for sensor 6 is 0x002061fe

[ 14.517015] The reading for sensor 7 is 0x002071fe

[ 14.521742] Couldn't get reading for sensor 8

[ 14.526516] Couldn't get reading for sensor 9

[ 14.530902] The reading for sensor 10 is 0x0020a22e

[ 14.535243] The reading for sensor 11 is 0x0020b218

[ 14.539970] Couldn't get reading for sensor 12

[ 14.544831] Couldn't get reading for sensor 13

[ 14.549306] The reading for sensor 14 is 0x0020e1fa

[ 14.553732] The reading for sensor 15 is 0x0020f204

[ 14.560479] Rebooting in 3 seconds..
