搜索只找到了资料非常有限
但是嘛 网友搞了几台回来,然后发了一台过来研究 到手一个半个多月了

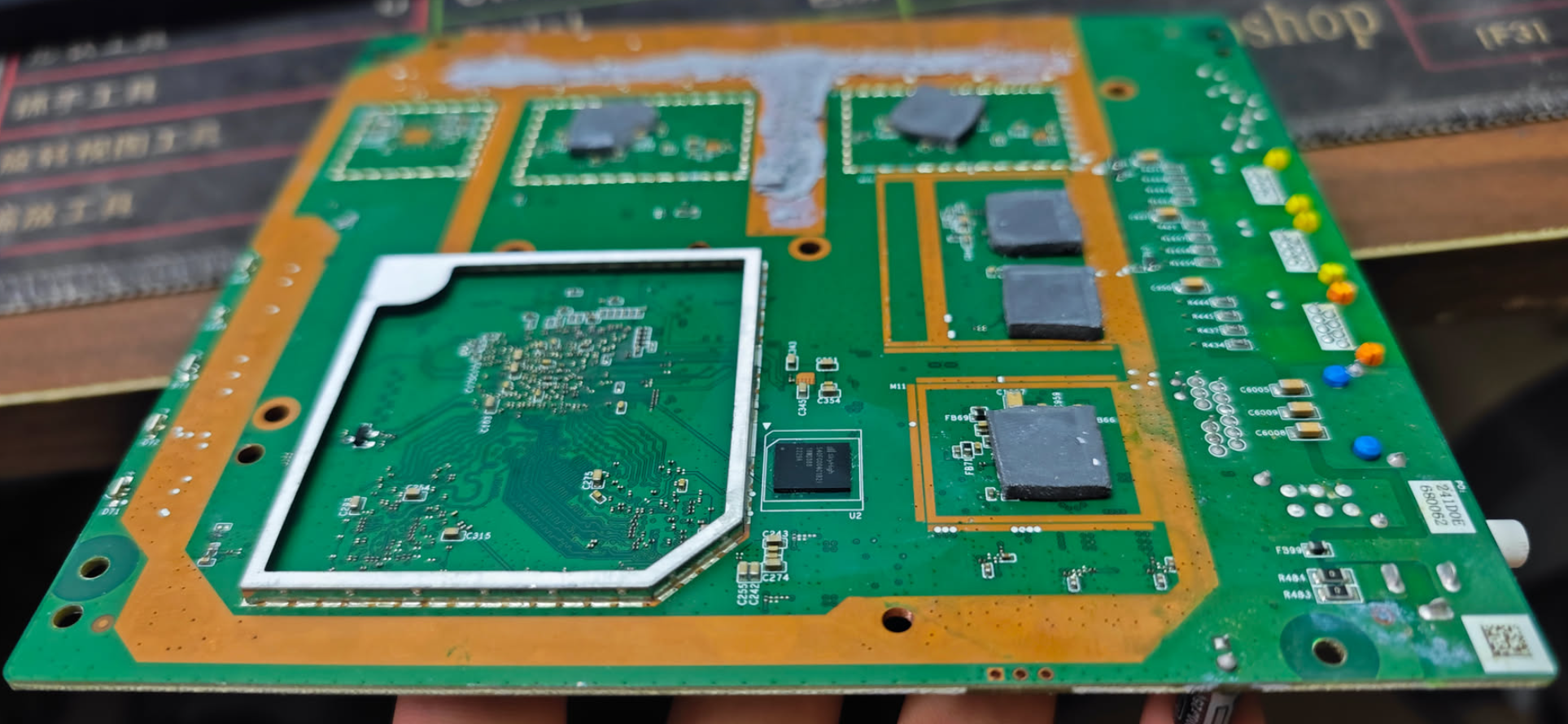

拆机 网友说是 emmc的 结果找半天。。全部屏蔽罩拆封硬是“”没发现” 它大小和 8*6的swop8差不多大小。。 我的编程器也没有适合的卡套

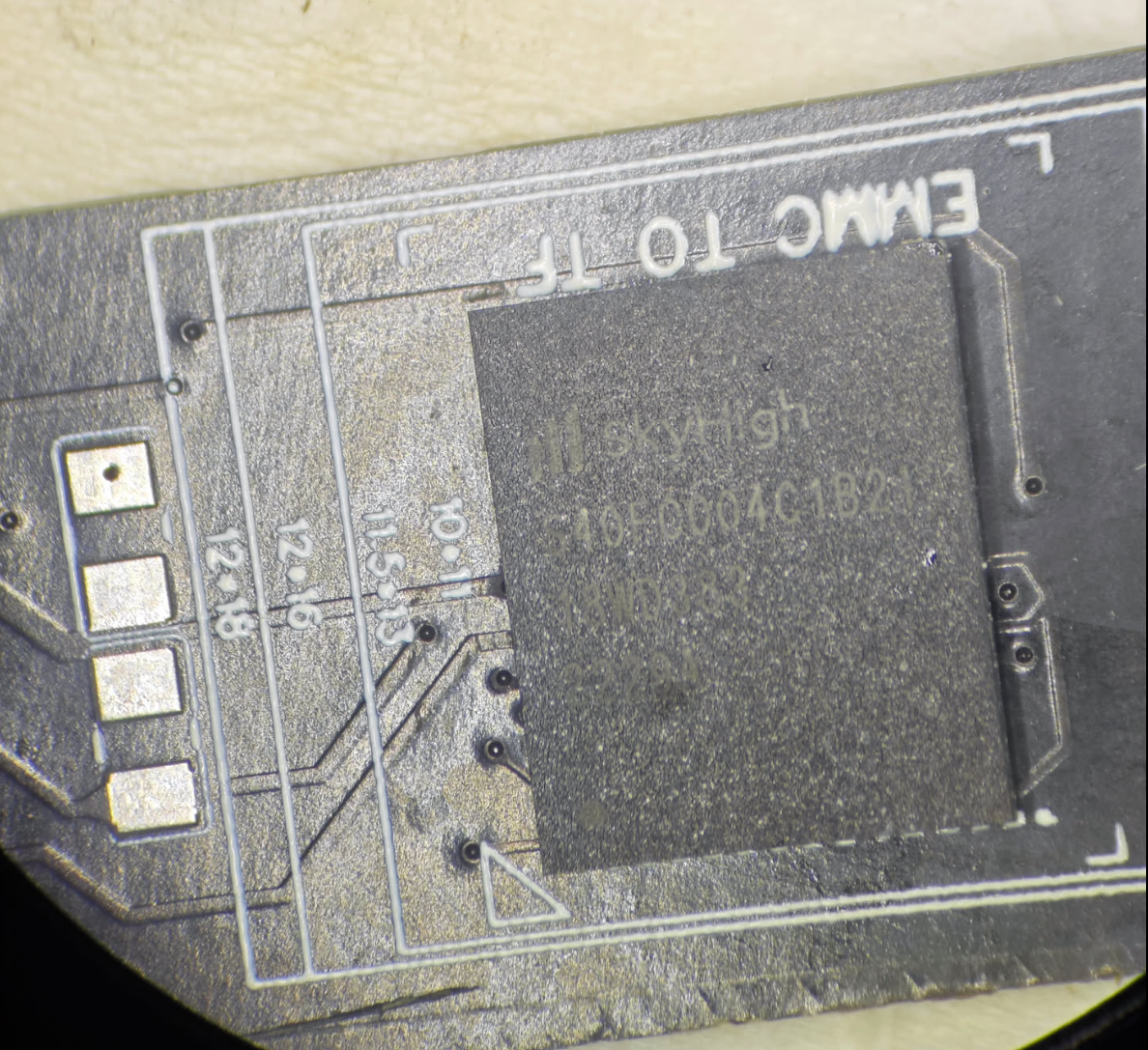

然后群力有人帮忙画图做一个,嘉立创打印了几次都不适合哎。。 拆下的emmc 装回还不开机。。。

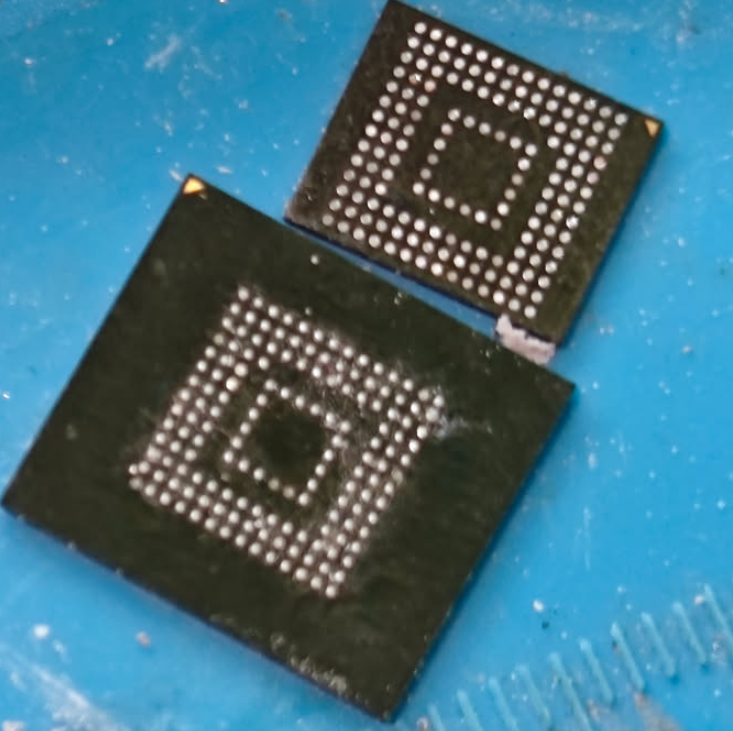

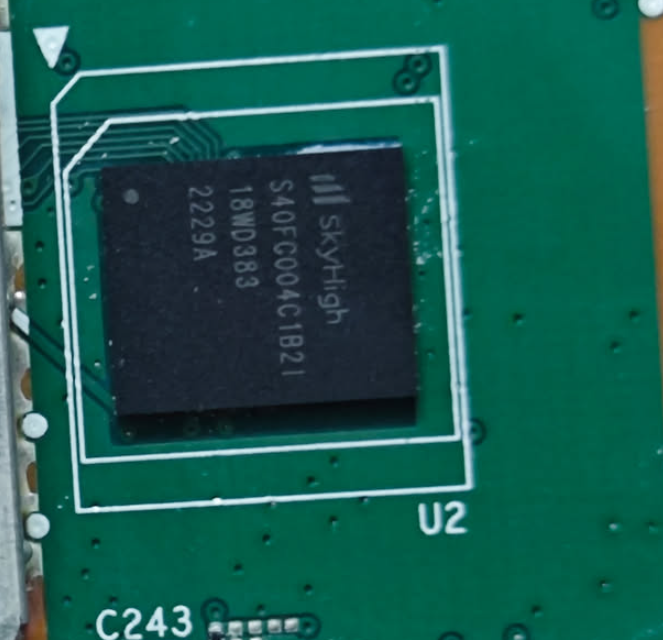

就是这个emmc 。。 看一开始看的还以为是 啥, 标准的 emmc 11*13.5是最外的圈,见过小一点的就中间那个圈,就是没见过这个这么小的。。。
今天在搜索竟然发现官方有了这个机型的星系了。。。

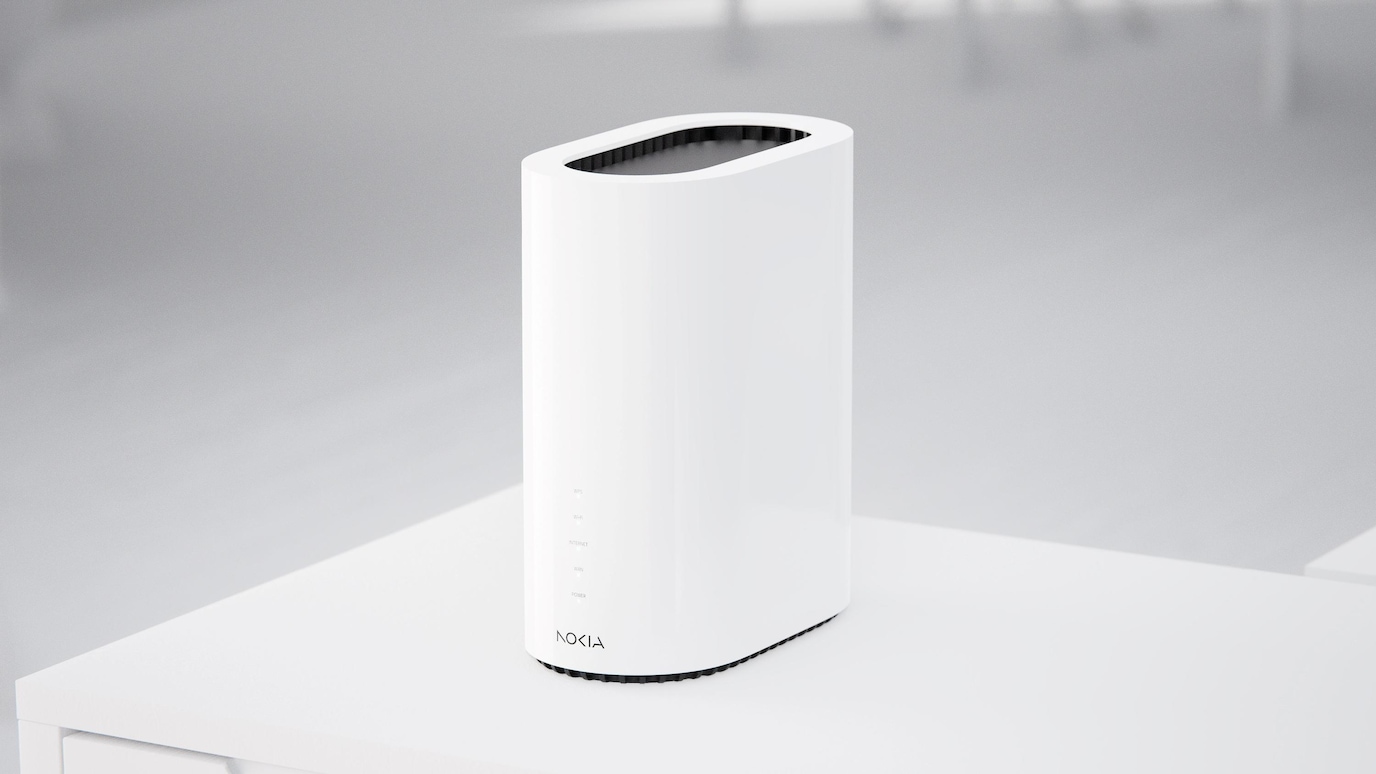

AX10200
The ultimate Wi-Fi 6E tri-band gateway
Nokia WiFi mesh creates a seamless Wi-Fi 6E network throughout the home
True tri-band: leverage the 2.4, 5 and 6 GHz bands
High-speed connectivity to the Internet (10 Gbps)
High-speed connectivity in the home (2.5 Gbps LAN port and Wi-Fi capacity of AX10200)
Extend the coverage with up to five Beacon 10 units
Simple, app-based setup and management.
On this page
![]()
Benefits and features
Unstoppable Wi-Fi
Based on EasyMesh™ enriched with Nokia value added features and functionalities
Intelligent channel selection ensures that the optimal Wi-Fi channel is always selected, avoiding any Wi-Fi glitches
Dynamic backhaul management ensures Nokia WiFi Beacons are perfectly connected with one another
Hyper-speeds
10 Gbps WAN port
2.5 Gbps LAN port
2x2 MIMO on 2.4 GHz
4x4 MIMO on 5 GHz
4x4 MIMO on 6 GHz
Supporting 160 MHz channels
PHY rate of AXE10200
Whole home Wi-Fi coverage
One unit covers up to 280m2 (~3000 sq. ft)
Connect up to five mesh extenders via Ethernet or Wi-Fi to create a single network in a large or multi-story house
iF Award winners!
Nokia’s FastMile 5G Gateway 7, WiFi Beacon 24, WiFi Beacon 3.1 have been recognized with the prestigious iF Design Award in 2024
Powered by Corteca
Boost your competitiveness with value-add applications
Our application containers can enhance the user experience, create customer loyalty, and bring you new forms of revenue. Use them to diversify your value-added offer, introduce new services, and get them to your subscribers more quickly.
Manage and optimize Wi-Fi networks
Leverage the Corteca Home Controller for an advanced helpdesk, proactive Wi-Fi optimization and network-wide visibility
Give your customers a local web interface that can be customized (branding, stylesheets, control what the end user can see and configure).
Nokia WiFi mobile app

![]()
Specifications
Physical characteristics
Height: 220 mm (8.66 in)
Width: 101 mm (3.90 in)
Depth: 188 mm (7.40 in)
Weight: 1.66 kg (3.66 lb)
Wireless LAN interfaces
802.11b/g/n/ax 2.4 GHz: 2x2 MIMO
802.11a/n/ac/ax 5 GHz: 4x4 MIMO
802.11a/n/ac/ax 6 GHz: 4x4 MIMO
Maximum EIRP on 2.4 GHz up to 1 W, on 5 GHz up to 2 W and on 6 GHz up to 2 W (dependent on hardware variant and local regulations)
Supports 160 MHz channel width
Ethernet interfaces
WAN side: One 1G/2.5G/5G/10G Base-T interface with RJ-45 connector
LAN side: One 10M/100M/1G/2.5G Base-T interface and two 10M/100M/1000M Base-T interfaces with RJ-45 connectors
![]()
-官方信息。。 感兴趣官方看
未完待续。。。
——————————————————————————————————————————————————————————————
看我官方的 看几张拆机的吧
