Xfinity XB10 WIFI7 6G 320mhz 10G网口的 拆机 折腾

#xb10#xfinity

群里 一个群友人肉拖回来的， 我也搞个回来看看 拆机完

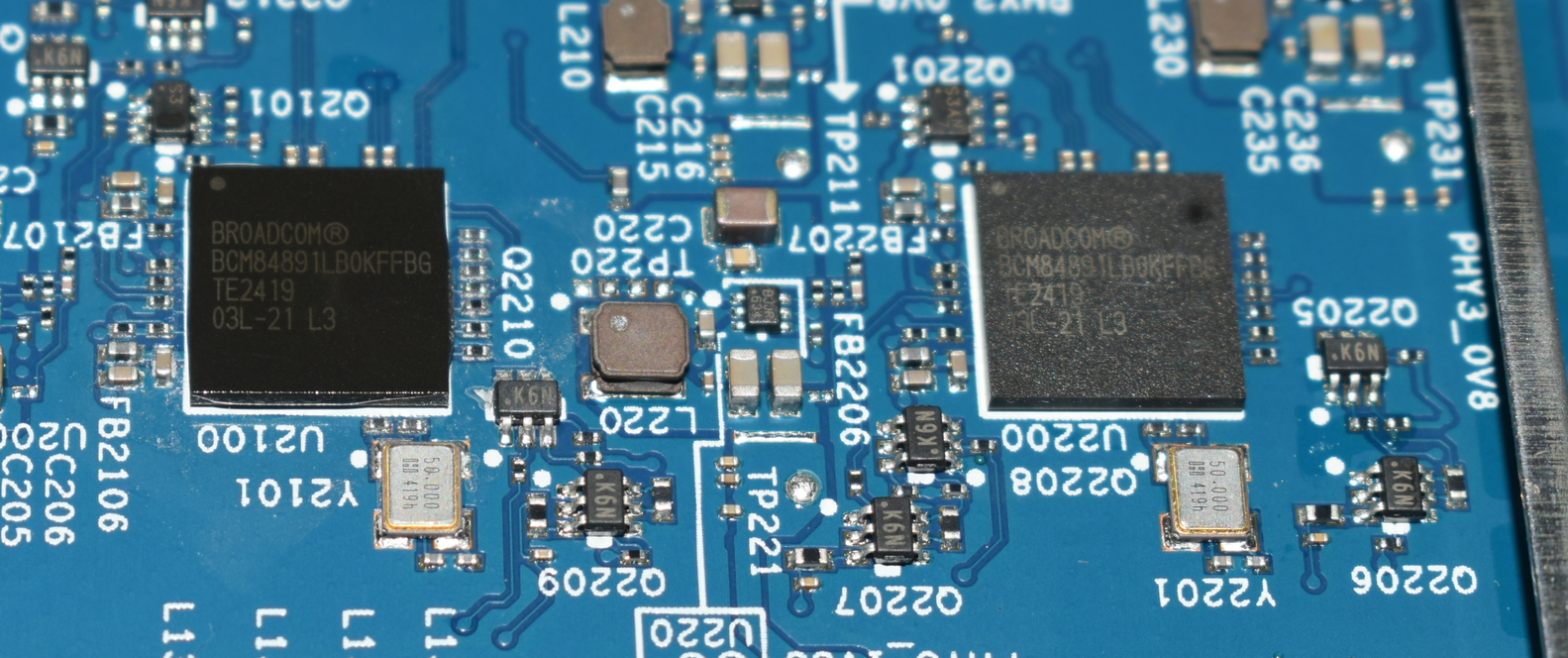

2个10G的芯片？

特殊电源 只好焊接2根线接DC5521用。。。 电源 15V 5.3A 好大。。。

细节后面有时间再补。。。

Xfinity XB10 是康卡斯特（Comcast）提供的一款高性能 DOCSIS 3.1 网关，整机重量接近 3斤，硬件规格极为强悍，采用双主板“汉堡式”堆叠结构：

  • 主控板：CPU、内存、存储、10G 芯片、接口等

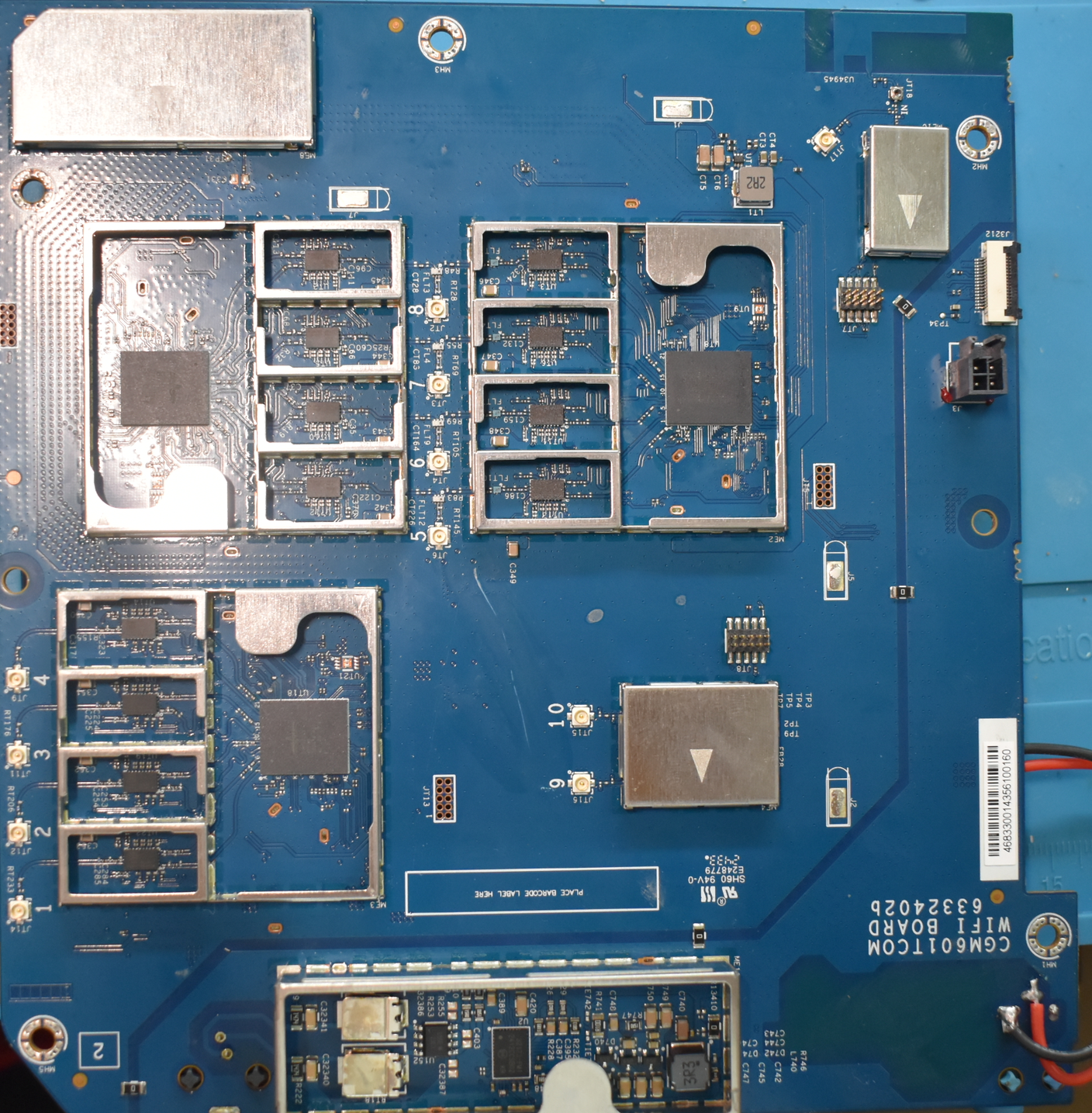

  • 无线板：三颗 Wi-Fi 7 芯片及其 FEM 模块

核心硬件

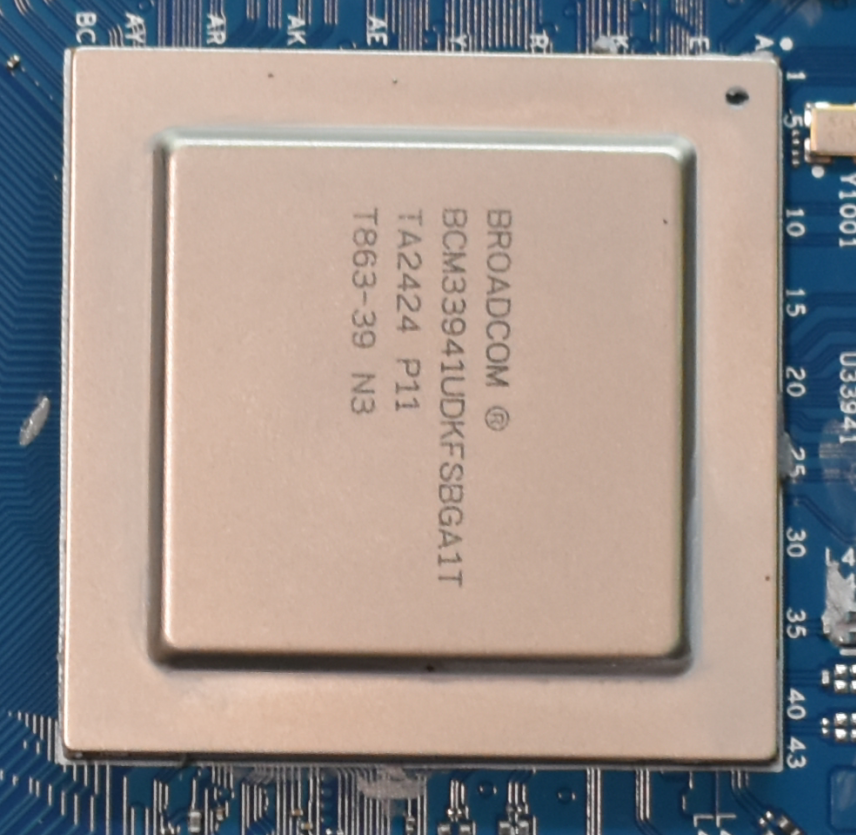

  1. 处理器（CPU）

    • Broadcom BCM33941UDKFSBGA1TA2424 P11 T863-39

  2. 内存（RAM）

    • 双颗镁光 D8CSC LPDDR4 BGA200，合计 4GB

  3. 存储（eMMC）

    • 东芝 4GB eMMC

  4. 无线部分（Wi-Fi 7）

    • 三颗 Broadcom BCM6726

    • 每颗配 4 个 AW750 FEM 模块

  5. 有线部分（10G 以太网）

    • 两颗 Broadcom BCM84891LB0KFFBG

接口配置

  • 4 个以太网口

    • 2 × 10G 端口（由 BCM84891 提供）

    • 2 × 千兆端口

  • 1 个电话接口（RJ11）

  • 1 个 RF 同轴接口（用于有线信号输入，DOCSIS 3.1）

  • 2 个 COM 串口（含 Type-C 转 CP2105 双串口调试）

散热与做工

  • 主板厚实，采用双层堆叠（汉堡式）结构

  • 采用大面积金属屏蔽与导热板

  • 底部装有 SUNON 6010 静音风扇（DC12V / 1.46W）

总结

XB10 不仅支持 DOCSIS 3.1，还集成 Wi-Fi 7、10G+千兆混合网口配置，并具备企业级散热与用料，完全能胜任大带宽和多用户环境的需求。

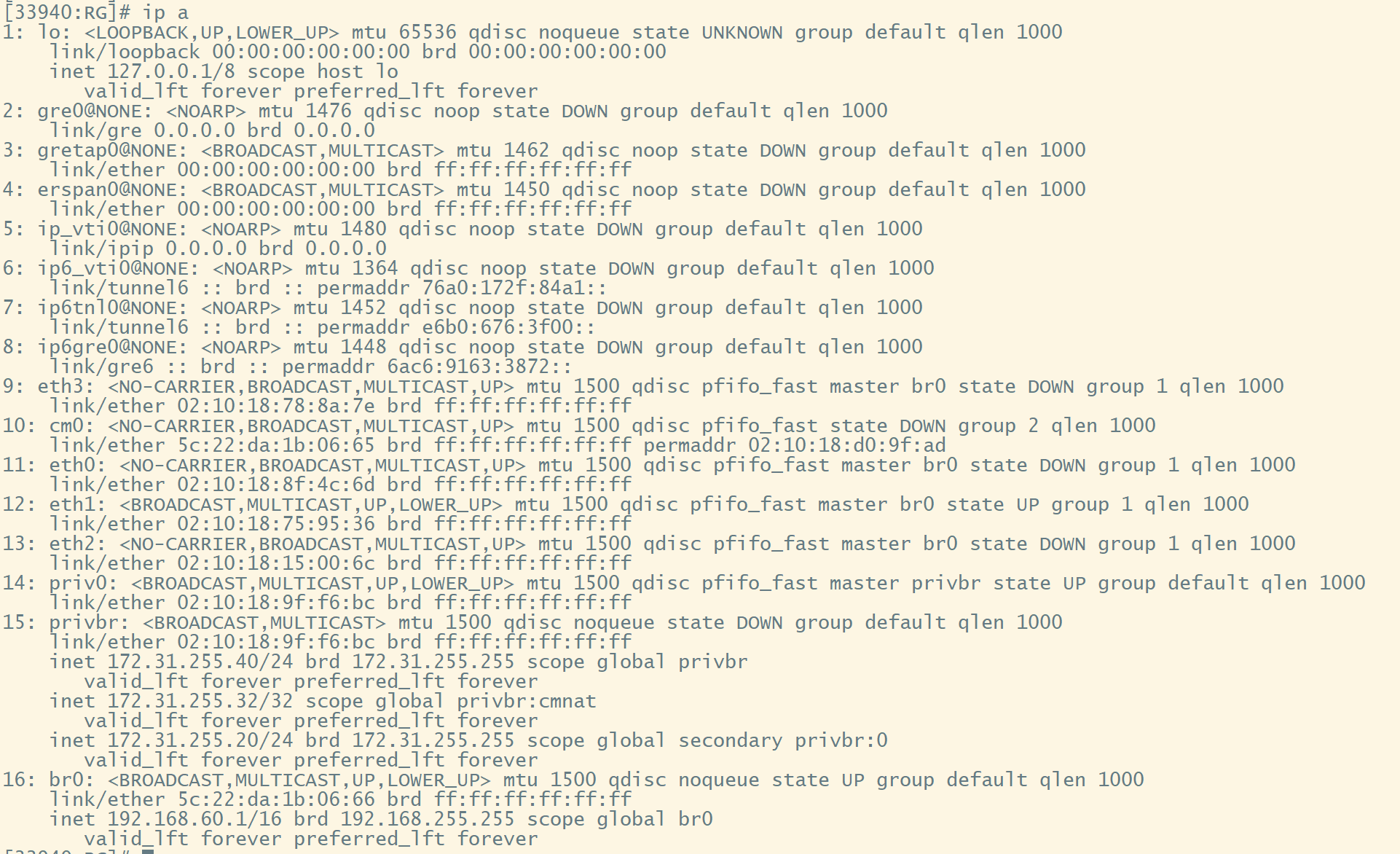

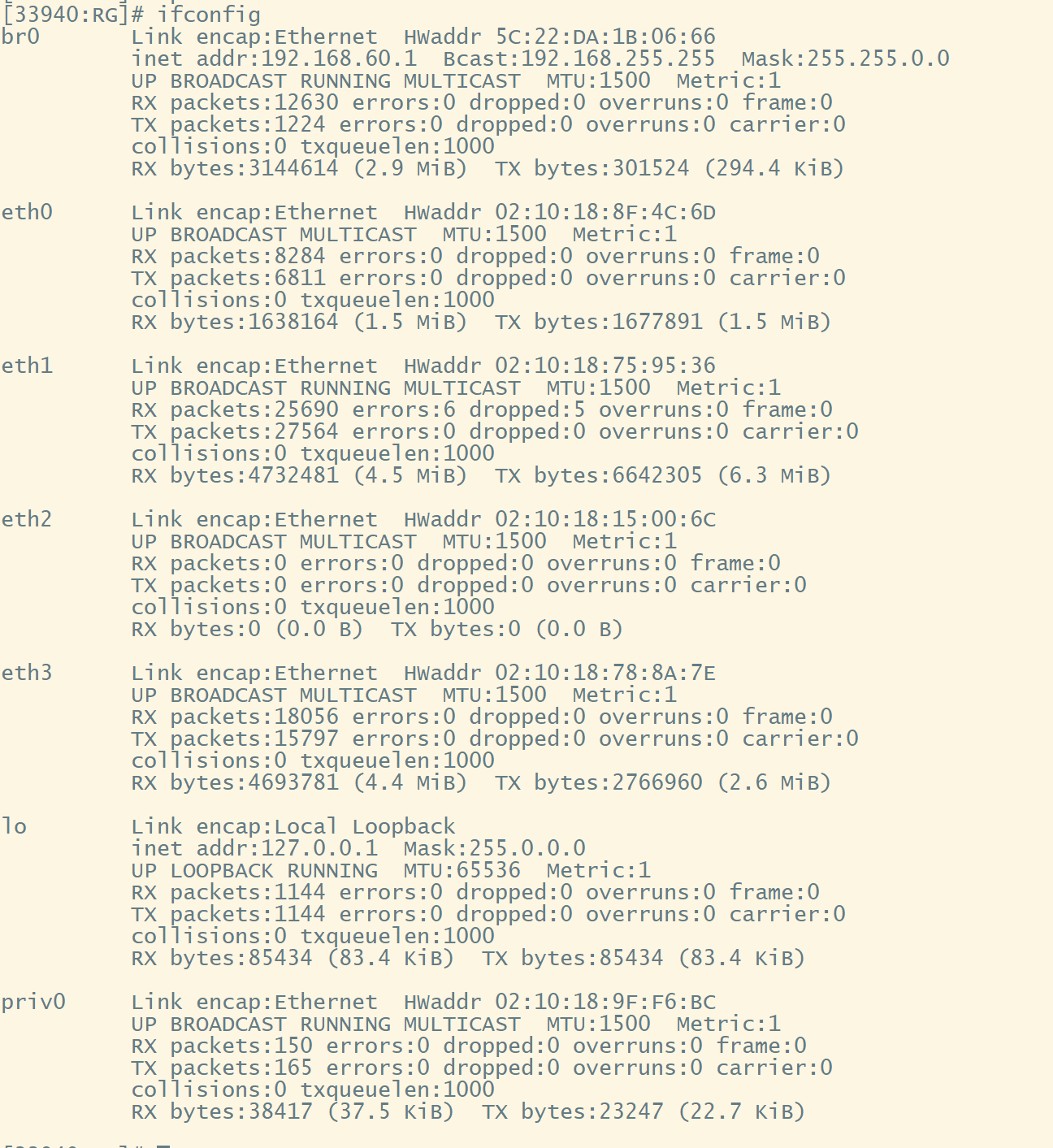

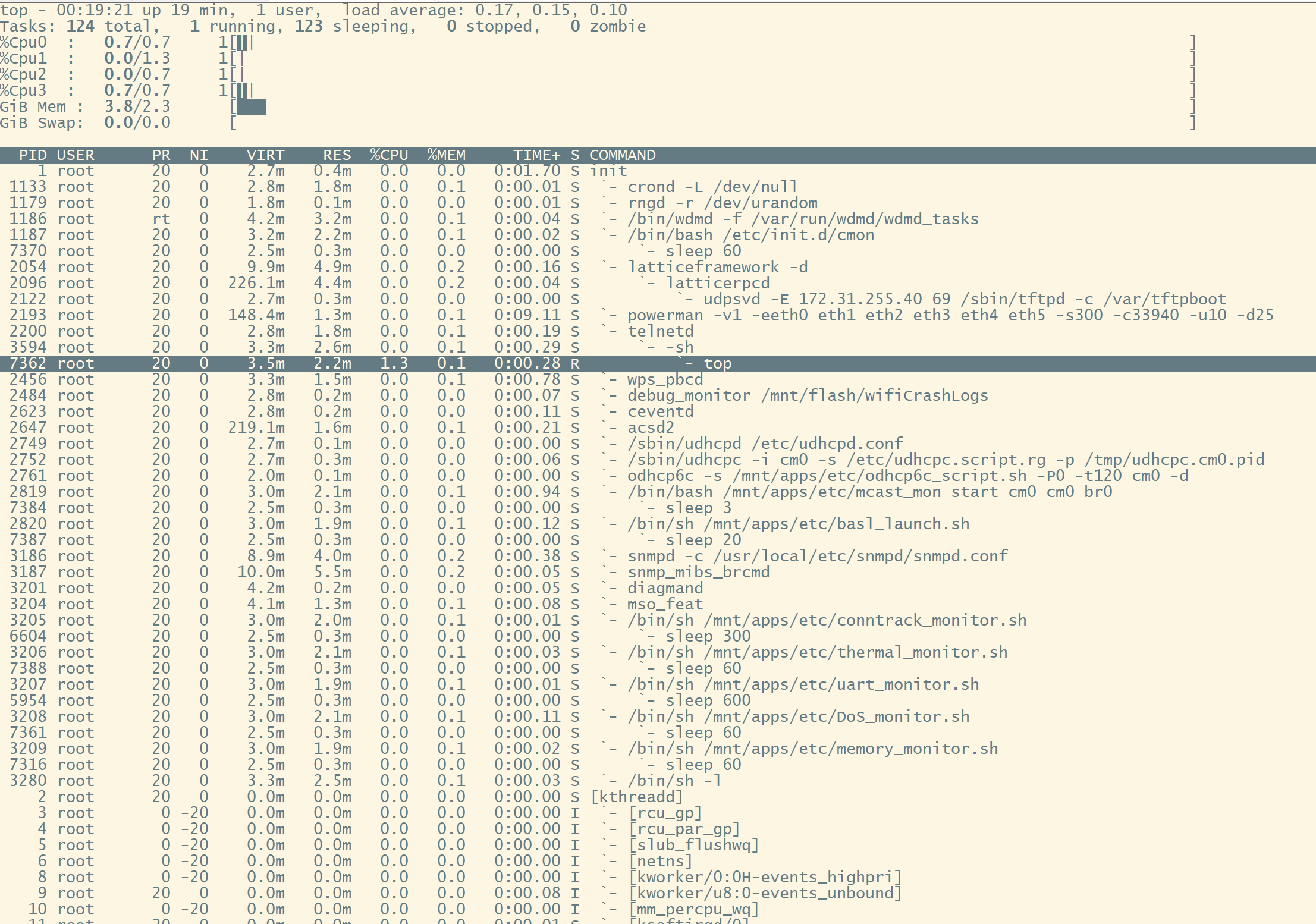

一些 进 telent获取的信息 和com1一样

sh-3.2# cat version.txt XB10 hwtest v1.21 Date: Tue Jul 23 09:09:30 EDT 2024 Branch: XB10_33941UD_0.8 Hash: 4591c33b38e3dc051856a9192f82344e810f707e Command Line: ./build-ref-comcast.sh

sh-3.2# cat /etc/os-release NAME=Buildroot VERSION=2018.11-00127-g4591c33-dirty ID=buildroot VERSION_ID=2018.11 PRETTY_NAME="Buildroot 2018.11"

sh-3.2# free -m total used free shared buff/cache available Mem: 2384 152 2116 0 114 2197 Swap: 0 0 0 sh-3.2# cat meminfo MemTotal: 2441324 kB MemFree: 2166484 kB MemAvailable: 2249672 kB Buffers: 3224 kB Cached: 99716 kB SwapCached: 0 kB Active: 23820 kB Inactive: 87028 kB Active(anon): 336 kB Inactive(anon): 11336 kB Active(file): 23484 kB Inactive(file): 75692 kB Unevictable: 3972 kB Mlocked: 3972 kB SwapTotal: 0 kB SwapFree: 0 kB Dirty: 0 kB Writeback: 0 kB AnonPages: 11968 kB Mapped: 11740 kB Shmem: 252 kB KReclaimable: 15364 kB Slab: 50356 kB SReclaimable: 15364 kB SUnreclaim: 34992 kB KernelStack: 2304 kB PageTables: 1540 kB NFS_Unstable: 0 kB Bounce: 0 kB WritebackTmp: 0 kB CommitLimit: 1220660 kB Committed_AS: 87968 kB VmallocTotal: 259653632 kB VmallocUsed: 18976 kB VmallocChunk: 0 kB Percpu: 944 kB CmaTotal: 131072 kB CmaFree: 45756 kB sh-3.2#

sh-3.2# cat /proc/meminfo | grep -i memtotal MemTotal: 2441324 kB sh-3.2# dmesg | grep -i memory sh-3.2# dmesg | grep -i mem [ 91.270012] CONSOLE[wl2]: 000017.450 wl2: wlc_bmac_bmc_init_start sysmem_size 0x640000 hwcap fifo_sz 0x1c0000 [ 92.393081] CONSOLE[wl2]: 000018.015 wl2: wlc_bmac_bmc_init_start sysmem_size 0x640000 hwcap fifo_sz 0x1c0000 [ 545.054776] CONSOLE[wl1]: 000468.668 wl1: wlc_bmac_bmc_init_start sysmem_size 0x640000 hwcap fifo_sz 0x1c0000 [ 546.282072] CONSOLE[wl1]: 000469.136 wl1: wlc_bmac_bmc_init_start sysmem_size 0x640000 hwcap fifo_sz 0x1c0000 [ 547.167533] CONSOLE[wl1]: 000469.519 wl1: wlc_bmac_bmc_init_start sysmem_size 0x640000 hwcap fifo_sz 0x1c0000 [ 548.061985] CONSOLE[wl1]: 000470.257 wl1: wlc_bmac_bmc_init_start sysmem_size 0x640000 hwcap fifo_sz 0x1c0000 [ 549.237917] CONSOLE[wl1]: 000470.822 wl1: wlc_bmac_bmc_init_start sysmem_size 0x640000 hwcap fifo_sz 0x1c0000 [ 600.407971] CONSOLE[wl0]: 000521.193 wl0: wlc_bmac_bmc_init_start sysmem_size 0x640000 hwcap fifo_sz 0x1c0000 [ 601.626853] CONSOLE[wl0]: 000521.644 wl0: wlc_bmac_bmc_init_start sysmem_size 0x640000 hwcap fifo_sz 0x1c0000 [ 602.470011] CONSOLE[wl0]: 000521.978 wl0: wlc_bmac_bmc_init_start sysmem_size 0x640000 hwcap fifo_sz 0x1c0000 [ 603.420872] CONSOLE[wl0]: 000522.607 wl0: wlc_bmac_bmc_init_start sysmem_size 0x640000 hwcap fifo_sz 0x1c0000 [ 604.506441] CONSOLE[wl0]: 000523.253 wl0: wlc_bmac_bmc_init_start sysmem_size 0x640000 hwcap fifo_sz 0x1c0000 sh-3.2# printenv SHELL=/bin/sh TERM=vt102 USER=root LD_LIBRARY_PATH=/usr/lib64:/lib64:/usr/local/lib:/usr/local/lib/public:/usr/local/lib/private:/usr/local/lib/gpl:/lib:/usr/local/usr/lib BP3ATA_PATH=/mnt/ata PATH=/usr/local/sbin:/usr/local/bin:/usr/local/usr/sbin:/usr/local/usr/bin:/usr/sbin:/usr/bin:/sbin:/bin product_name=bcm933941 PWD=/ SHLVL=5 HOME=/ BP3LIC_PATH=/mnt/bp3lic _=/bin/printenv

sh-3.2# uname -a Linux brcmrg 5.15.144-3.1pre #2 SMP Tue Jul 23 09:36:27 EDT 2024 aarch64 GNU/Linux sh-3.2# cat /proc/partitions major minor #blocks name

1 0 65536 ram0 1 1 65536 ram1 1 2 65536 ram2 1 3 65536 ram3 1 4 65536 ram4 1 5 65536 ram5 1 6 65536 ram6 1 7 65536 ram7 1 8 65536 ram8 1 9 65536 ram9 1 10 65536 ram10 1 11 65536 ram11 1 12 65536 ram12 1 13 65536 ram13 1 14 65536 ram14 1 15 65536 ram15 254 0 124 flash-smcnvo 254 16 124 flash-smcnvb 254 32 1536 flash-boltb 254 48 1536 flash-bolto 254 64 16384 flash-kernelb 254 80 16384 flash-kernelo 254 96 1048572 flash-rgb 254 112 1048572 flash-rgo 254 128 1024 flash-cmblb 254 144 1024 flash-cmblo 254 160 20480 flash-cmb 254 176 20480 flash-cmo 254 192 124 flash-nvramo 254 208 124 flash-nvramb 254 224 512 flash-devtreeb 254 240 512 flash-devtreeo 254 256 40956 flash-rgnonvolo 254 272 40956 flash-rgnonvolb 254 288 102396 flash-rdknvramo 254 304 102396 flash-rdknvramb 254 320 2044 flash-cmnvpo 254 336 2044 flash-cmnvpb 254 352 2044 flash-cmnvdo 254 368 2044 flash-cmnvdb 254 384 256 flash-smcblo 254 400 256 flash-smcblb 254 416 1536 flash-smcosb 254 432 1536 flash-smcoso 254 448 1024 flash-gfapb 254 464 1024 flash-gfapo 254 480 124 flash-macadro 254 496 124 flash-macadrb 254 512 1536 flash-reservedo 254 528 1536 flash-reservedb 254 544 8192 flash-asfb 254 560 8192 flash-asfo 254 576 128 flash-custcfgpo 254 592 128 flash-custcfgpb 254 608 262144 flash-stao 254 624 262144 flash-stab 254 640 4092 flash-debugo 254 656 4096 flash-ramlogo 254 672 2048 flash-amsb 254 688 2048 flash-amso 254 704 8192 flash-atab 254 720 8192 flash-atao 254 736 32764 flash-bp3lico 254 752 32764 flash-bp3licb 254 768 252 flash-smcnvexto 254 784 252 flash-smcnvextb 254 800 256 flash-custcfgdo 254 816 256 flash-custcfgdb 254 832 343800 flash-customo 254 848 343800 flash-customb sh-3.2# lsblk NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT flash-smcnvo 254:0 0 124K 0 disk flash-smcnvb 254:16 0 124K 0 disk flash-boltb 254:32 0 1.5M 0 disk flash-bolto 254:48 0 1.5M 0 disk flash-kernelb 254:64 0 16M 0 disk flash-kernelo 254:80 0 16M 0 disk flash-rgb 254:96 0 1024M 0 disk flash-rgo 254:112 0 1024M 0 disk / flash-cmblb 254:128 0 1M 0 disk flash-cmblo 254:144 0 1M 0 disk flash-cmb 254:160 0 20M 0 disk flash-cmo 254:176 0 20M 0 disk flash-nvramo 254:192 0 124K 0 disk flash-nvramb 254:208 0 124K 0 disk flash-devtreeb 254:224 0 512K 0 disk flash-devtreeo 254:240 0 512K 0 disk flash-rgnonvolo 254:256 0 40M 0 disk /data flash-rgnonvolb 254:272 0 40M 0 disk /data_bak flash-rdknvramo 254:288 0 100M 0 disk flash-rdknvramb 254:304 0 100M 0 disk flash-cmnvpo 254:320 0 2M 0 disk flash-cmnvpb 254:336 0 2M 0 disk flash-cmnvdo 254:352 0 2M 0 disk flash-cmnvdb 254:368 0 2M 0 disk flash-smcblo 254:384 0 256K 0 disk flash-smcblb 254:400 0 256K 0 disk flash-smcosb 254:416 0 1.5M 0 disk flash-smcoso 254:432 0 1.5M 0 disk flash-gfapb 254:448 0 1M 0 disk flash-gfapo 254:464 0 1M 0 disk flash-macadro 254:480 0 124K 0 disk flash-macadrb 254:496 0 124K 0 disk flash-reservedo 254:512 0 1.5M 0 disk flash-reservedb 254:528 0 1.5M 0 disk flash-asfb 254:544 0 8M 0 disk flash-asfo 254:560 0 8M 0 disk flash-custcfgpo 254:576 0 128K 0 disk flash-custcfgpb 254:592 0 128K 0 disk flash-stao 254:608 0 256M 0 disk flash-stab 254:624 0 256M 0 disk flash-debugo 254:640 0 4M 0 disk flash-ramlogo 254:656 0 4M 0 disk flash-amsb 254:672 0 2M 0 disk flash-amso 254:688 0 2M 0 disk flash-atab 254:704 0 8M 0 disk flash-atao 254:720 0 8M 0 disk /mnt/ata flash-bp3lico 254:736 0 32M 0 disk /mnt/bp3lic flash-bp3licb 254:752 0 32M 0 disk /mnt/bp3lic_bak flash-smcnvexto 254:768 0 252K 0 disk flash-smcnvextb 254:784 0 252K 0 disk flash-custcfgdo 254:800 0 256K 0 disk flash-custcfgdb 254:816 0 256K 0 disk flash-customo 254:832 0 335.8M 0 disk flash-customb 254:848 0 335.8M 0 disk sh-3.2#

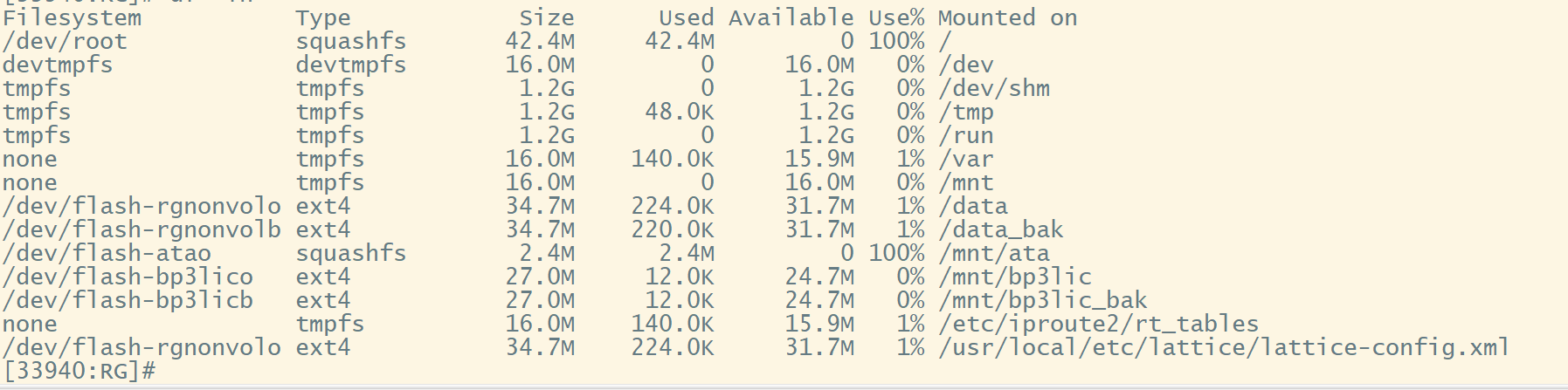

sh-3.2# df -Th Filesystem Type Size Used Available Use% Mounted on /dev/root squashfs 42.4M 42.4M 0 100% / devtmpfs devtmpfs 16.0M 0 16.0M 0% /dev tmpfs tmpfs 1.2G 0 1.2G 0% /dev/shm tmpfs tmpfs 1.2G 92.0K 1.2G 0% /tmp tmpfs tmpfs 1.2G 4.0K 1.2G 0% /run none tmpfs 16.0M 156.0K 15.8M 1% /var none tmpfs 16.0M 0 16.0M 0% /mnt /dev/flash-rgnonvolo ext4 34.7M 232.0K 31.7M 1% /data /dev/flash-rgnonvolb ext4 34.7M 228.0K 31.7M 1% /data_bak /dev/flash-atao squashfs 2.4M 2.4M 0 100% /mnt/ata /dev/flash-bp3lico ext4 27.0M 12.0K 24.7M 0% /mnt/bp3lic /dev/flash-bp3licb ext4 27.0M 12.0K 24.7M 0% /mnt/bp3lic_bak none tmpfs 16.0M 156.0K 15.8M 1% /etc/iproute2/rt_tables /dev/flash-rgnonvolo ext4 34.7M 232.0K 31.7M 1% /usr/local/etc/lattice/lattice-config.xml sh-3.2#

sh-3.2# ls bin data_bak etc lib64 media opt root sbin tmp var www data dev lib linuxrc mnt proc run sys usr version.txt sh-3.2# ls -la total 9 drwxr-xr-x 19 root root 307 Jul 23 2024 . drwxr-xr-x 19 root root 307 Jul 23 2024 .. drwxr-xr-x 2 root root 1740 Jul 23 2024 bin drwxr-xr-x 3 root root 4096 Jan 1 00:11 data drwxr-xr-x 3 root root 4096 Jan 1 00:12 data_bak drwxr-xr-x 4 root root 12840 Jan 1 00:00 dev drwxr-xr-x 16 root root 942 Jul 23 2024 etc drwxr-xr-x 5 root root 1156 Jun 12 2024 lib lrwxrwxrwx 1 root root 3 Jul 23 2024 lib64 -> lib lrwxrwxrwx 1 root root 11 Jul 23 2024 linuxrc -> bin/busybox drwxr-xr-x 2 root root 3 Apr 24 2024 media drwxrwxrwt 9 root root 200 Jan 1 00:01 mnt drwxr-xr-x 2 root root 3 Apr 24 2024 opt dr-xr-xr-x 190 root root 0 Jan 1 00:00 proc drwxr-xr-x 3 root root 27 Jul 23 2024 root drwxr-xr-x 3 root root 100 Jan 1 00:28 run drwxr-xr-x 2 root root 1645 Jul 23 2024 sbin dr-xr-xr-x 12 root root 0 Jan 1 00:00 sys drwxrwxrwt 9 root root 620 Jan 1 00:10 tmp drwxr-xr-x 8 root root 163 Jul 23 2024 usr drwxrwxrwt 11 root root 420 Jan 1 00:09 var -rw-r--r-- 1 root root 163 Jul 23 2024 version.txt lrwxrwxrwx 1 root root 14 Jul 23 2024 www -> /usr/local/www sh-3.2#

sh-3.2# cat /proc/cpuinfo processor : 0 BogoMIPS : 54.00 Features : fp asimd evtstrm aes pmull sha1 sha2 crc32 cpuid CPU implementer : 0x42 CPU architecture: 8 CPU variant : 0x0 CPU part : 0x100 CPU revision : 0

processor : 1 BogoMIPS : 54.00 Features : fp asimd evtstrm aes pmull sha1 sha2 crc32 cpuid CPU implementer : 0x42 CPU architecture: 8 CPU variant : 0x0 CPU part : 0x100 CPU revision : 0

processor : 2 BogoMIPS : 54.00 Features : fp asimd evtstrm aes pmull sha1 sha2 crc32 cpuid CPU implementer : 0x42 CPU architecture: 8 CPU variant : 0x0 CPU part : 0x100 CPU revision : 0

processor : 3 BogoMIPS : 54.00 Features : fp asimd evtstrm aes pmull sha1 sha2 crc32 cpuid CPU implementer : 0x42 CPU architecture: 8 CPU variant : 0x0 CPU part : 0x100 CPU revision : 0

sh-3.2#

sh-3.2# cat version Linux version 5.15.144-3.1pre (scott@scott-ubuntu18) (aarch64-linux-gcc (stbgcc-8.3-0.4-dirty) 8.3.0, GNU ld (stbgcc-8.3-0.4-dirty) 2.32) #2 SMP Tue Jul 23 09:36:27 EDT 2024

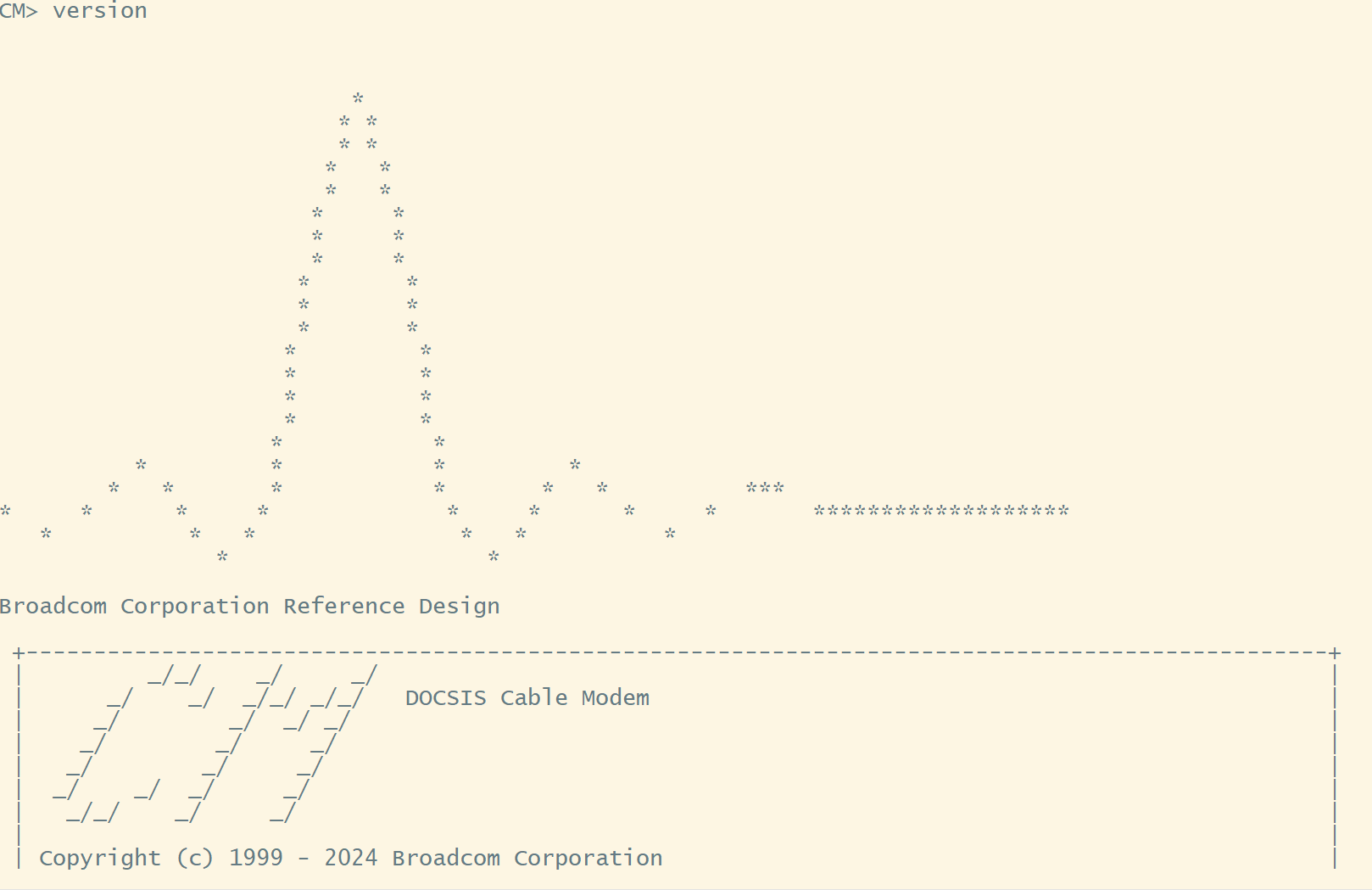

这个是com2口

Scanning 871.750 MHz SC-QAM (HRC)

Scanning 865.750 MHz SC-QAM (HRC)

Scanning 859.750 MHz SC-QAM (HRC)

Scanning 853.750 MHz SC-QAM (HRC)

Scanning 847.750 MHz SC-QAM (HRC)

Scanning 841.750 MHz SC-QAM (HRC)

Scanning 835.750 MHz SC-QAM (HRC)

Scanning 829.750 MHz SC-QAM (HRC)

Scanning 823.750 MHz SC-QAM (HRC)

Scanning 817.750 MHz SC-QAM (HRC)

Scanning 811.750 MHz SC-QAM (HRC)

Scanning 805.750 MHz SC-QAM (HRC)

Scanning 799.750 MHz SC-QAM (HRC)

Scanning 793.750 MHz SC-QAM (HRC)

Scanning 787.750 MHz SC-QAM (HRC)

Scanning 781.750 MHz SC-QAM (HRC)

Scanning 775.750 MHz SC-QAM (HRC)

Scanning 769.750 MHz SC-QAM (HRC)

Scanning 763.750 MHz SC-QAM (HRC)

Scanning 757.750 MHz SC-QAM (HRC)

Scanning 606.000 MHz PLC/SC-QAM (Scan list #32)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 751.750 MHz SC-QAM (HRC)

Scanning 745.750 MHz SC-QAM (HRC)

Scanning 739.750 MHz SC-QAM (HRC)

Scanning 733.750 MHz SC-QAM (HRC)

Scanning 727.750 MHz SC-QAM (HRC)

Scanning 721.750 MHz SC-QAM (HRC)

Scanning 715.750 MHz SC-QAM (HRC)

Scanning 709.750 MHz SC-QAM (HRC)

Scanning 703.750 MHz SC-QAM (HRC)

Scanning 697.750 MHz SC-QAM (HRC)

Scanning 691.750 MHz SC-QAM (HRC)

Scanning 685.750 MHz SC-QAM (HRC)

Scanning 679.750 MHz SC-QAM (HRC)

Scanning 673.750 MHz SC-QAM (HRC)

Scanning 667.750 MHz SC-QAM (HRC)

Scanning 661.750 MHz SC-QAM (HRC)

Scanning 655.750 MHz SC-QAM (HRC)

Scanning 649.750 MHz SC-QAM (HRC)

Scanning 643.750 MHz SC-QAM (HRC)

Scanning 637.750 MHz SC-QAM (HRC)

Scanning 631.750 MHz SC-QAM (HRC)

Scanning 625.750 MHz SC-QAM (HRC)

Scanning 619.750 MHz SC-QAM (HRC)

Scanning 613.750 MHz SC-QAM (HRC)

Scanning 607.750 MHz SC-QAM (HRC)

Scanning 601.750 MHz SC-QAM (HRC)

Scanning 595.750 MHz SC-QAM (HRC)

Scanning 589.750 MHz SC-QAM (HRC)

Scanning 612.000 MHz PLC/SC-QAM (Scan list #33)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 583.750 MHz SC-QAM (HRC)

Scanning 577.750 MHz SC-QAM (HRC)

Scanning 571.750 MHz SC-QAM (HRC)

Scanning 565.750 MHz SC-QAM (HRC)

Scanning 559.750 MHz SC-QAM (HRC)

Scanning 553.750 MHz SC-QAM (HRC)

Scanning 547.750 MHz SC-QAM (HRC)

Scanning 541.750 MHz SC-QAM (HRC)

Scanning 535.750 MHz SC-QAM (HRC)

Scanning 529.750 MHz SC-QAM (HRC)

Scanning 523.750 MHz SC-QAM (HRC)

Scanning 517.750 MHz SC-QAM (HRC)

Scanning 511.750 MHz SC-QAM (HRC)

Scanning 505.750 MHz SC-QAM (HRC)

Scanning 499.750 MHz SC-QAM (HRC)

Scanning 493.750 MHz SC-QAM (HRC)

Scanning 487.750 MHz SC-QAM (HRC)

Scanning 481.750 MHz SC-QAM (HRC)

Scanning 475.750 MHz SC-QAM (HRC)

Scanning 469.750 MHz SC-QAM (HRC)

Scanning 463.750 MHz SC-QAM (HRC)

Scanning 457.750 MHz SC-QAM (HRC)

Scanning 451.750 MHz SC-QAM (HRC)

Scanning 445.750 MHz SC-QAM (HRC)

Scanning 439.750 MHz SC-QAM (HRC)

Scanning 433.750 MHz SC-QAM (HRC)

Scanning 427.750 MHz SC-QAM (HRC)

Scanning 421.750 MHz SC-QAM (HRC)

Scanning 381.000 MHz PLC/SC-QAM (Scan list #0)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 415.750 MHz SC-QAM (HRC)

Scanning 409.750 MHz SC-QAM (HRC)

Scanning 403.750 MHz SC-QAM (HRC)

Scanning 397.750 MHz SC-QAM (HRC)

Scanning 391.750 MHz SC-QAM (HRC)

Scanning 385.750 MHz SC-QAM (HRC)

Scanning 379.750 MHz SC-QAM (HRC)

Scanning 373.750 MHz SC-QAM (HRC)

Scanning 367.750 MHz SC-QAM (HRC)

Scanning 361.750 MHz SC-QAM (HRC)

Scanning 355.750 MHz SC-QAM (HRC)

Scanning 349.750 MHz SC-QAM (HRC)

Scanning 343.750 MHz SC-QAM (HRC)

Scanning 337.750 MHz SC-QAM (HRC)

Scanning 331.750 MHz SC-QAM (HRC)

Scanning 325.750 MHz SC-QAM (HRC)

Scanning 319.750 MHz SC-QAM (HRC)

Scanning 313.750 MHz SC-QAM (HRC)

Scanning 307.750 MHz SC-QAM (HRC)

Scanning 301.750 MHz SC-QAM (HRC)

Scanning 295.750 MHz SC-QAM (HRC)

Scanning 289.750 MHz SC-QAM (HRC)

Scanning 283.750 MHz SC-QAM (HRC)

Scanning 277.750 MHz SC-QAM (HRC)

Scanning 271.750 MHz SC-QAM (HRC)

Scanning 265.750 MHz SC-QAM (HRC)

Scanning 259.750 MHz SC-QAM (HRC)

Scanning 253.750 MHz SC-QAM (HRC)

Scanning 247.750 MHz SC-QAM (HRC)

Scanning 241.750 MHz SC-QAM (HRC)

Scanning 235.750 MHz SC-QAM (HRC)

Scanning 229.750 MHz SC-QAM (HRC)

Scanning 223.750 MHz SC-QAM (HRC)

Scanning 217.750 MHz SC-QAM (HRC)

Scanning 211.750 MHz SC-QAM (HRC)

Scanning 205.750 MHz SC-QAM (HRC)

Scanning 199.750 MHz SC-QAM (HRC)

Scanning 193.750 MHz SC-QAM (HRC)

Scanning 187.750 MHz SC-QAM (HRC)

Scanning 181.750 MHz SC-QAM (HRC)

Scanning 175.750 MHz SC-QAM (HRC)

Scanning 169.750 MHz SC-QAM (HRC)

Scanning 163.750 MHz SC-QAM (HRC)

Scanning 157.750 MHz SC-QAM (HRC)

Scanning 151.750 MHz SC-QAM (HRC)

Scanning 145.750 MHz SC-QAM (HRC)

Scanning 139.750 MHz SC-QAM (HRC)

Scanning 133.750 MHz SC-QAM (HRC)

Scanning 127.750 MHz SC-QAM (HRC)

Scanning 121.750 MHz SC-QAM (HRC)

Scanning 115.750 MHz SC-QAM (HRC)

Scanning 109.750 MHz SC-QAM (HRC)

[00:03:44 01/01/1970] [CmDocsisCtlThread] BcmCmDocsisCtlThread::ScanNextQd: Scanning algorithm has been 'round the horn' 1 times.

CM> Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol entry #1)

Scanning 813.000 MHz PLC/SC-QAM (Non-vol entry #2)

Scanning 633.000 MHz PLC/SC-QAM (Non-vol entry #3)

Scanning 333.000 MHz PLC/SC-QAM (Non-vol entry #4)

Scanning 477.000 MHz PLC/SC-QAM (Non-vol entry #5)

Scanning 429.000 MHz PLC/SC-QAM (Non-vol entry #6)

Scanning 1050.000 MHz PLC/SC-QAM (Non-vol entry #7)

Scanning 999.000 MHz PLC/SC-QAM (Non-vol entry #8)

Scanning 975.000 MHz PLC/SC-QAM (Non-vol entry #9)

Scanning 951.000 MHz PLC/SC-QAM (Non-vol entry #10)

Scanning 927.000 MHz PLC/SC-QAM (Non-vol entry #11)

Scanning 903.000 MHz PLC/SC-QAM (Non-vol entry #12)

Scanning 879.000 MHz PLC/SC-QAM (Non-vol entry #13)

Scanning 855.000 MHz PLC/SC-QAM (Non-vol entry #14)

Scanning 831.000 MHz PLC/SC-QAM (Non-vol entry #15)

Scanning 812.000 MHz PLC/SC-QAM (Non-vol entry #16)

Scanning 282.000 MHz PLC/SC-QAM (Non-vol entry #17)

Scanning 516.000 MHz PLC/SC-QAM (Non-vol entry #18)

Scanning 522.000 MHz PLC/SC-QAM (Non-vol entry #19)

Scanning 528.000 MHz PLC/SC-QAM (Non-vol entry #20)

Scanning 534.000 MHz PLC/SC-QAM (Non-vol entry #21)

Scanning 540.000 MHz PLC/SC-QAM (Non-vol entry #22)

Scanning 546.000 MHz PLC/SC-QAM (Non-vol entry #23)

Scanning 552.000 MHz PLC/SC-QAM (Non-vol entry #24)

Scanning 558.000 MHz PLC/SC-QAM (Non-vol entry #25)

Scanning 564.000 MHz PLC/SC-QAM (Non-vol entry #26)

Scanning 570.000 MHz PLC/SC-QAM (Non-vol entry #27)

Scanning 576.000 MHz PLC/SC-QAM (Non-vol entry #28)

Scanning 582.000 MHz PLC/SC-QAM (Non-vol entry #29)

Scanning 588.000 MHz PLC/SC-QAM (Non-vol entry #30)

Scanning 594.000 MHz PLC/SC-QAM (Non-vol entry #31)

Scanning 600.000 MHz PLC/SC-QAM (Non-vol entry #32)

Scanning 606.000 MHz PLC/SC-QAM (Non-vol entry #33)

Scanning 612.000 MHz PLC/SC-QAM (Non-vol entry #34)

Scanning 804.000 MHz PLC

Scanning 805.000 MHz PLC

Scanning 806.000 MHz PLC

Scanning 807.000 MHz PLC

Scanning 808.000 MHz PLC

Scanning 809.000 MHz PLC

Scanning 810.000 MHz PLC

Scanning 811.000 MHz PLC

Scanning 812.000 MHz PLC

Scanning 813.000 MHz PLC

Scanning 814.000 MHz PLC

Scanning 815.000 MHz PLC

Scanning 816.000 MHz PLC

Scanning 817.000 MHz PLC

Scanning 818.000 MHz PLC

Scanning 819.000 MHz PLC

Scanning 820.000 MHz PLC

Scanning 821.000 MHz PLC

Scanning 822.000 MHz PLC

Scanning 823.000 MHz PLC

Scanning 824.000 MHz PLC

Scanning 825.000 MHz PLC

Scanning 826.000 MHz PLC

Scanning 827.000 MHz PLC

Scanning 828.000 MHz PLC

Scanning 829.000 MHz PLC

Scanning 830.000 MHz PLC

Scanning 831.000 MHz PLC

Scanning 832.000 MHz PLC

Scanning 833.000 MHz PLC

Scanning 381.000 MHz PLC/SC-QAM (Scan list #0)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 834.000 MHz PLC

Scanning 835.000 MHz PLC

Scanning 836.000 MHz PLC

Scanning 837.000 MHz PLC

Scanning 838.000 MHz PLC

Scanning 839.000 MHz PLC

Scanning 840.000 MHz PLC

Scanning 841.000 MHz PLC

Scanning 842.000 MHz PLC

Scanning 843.000 MHz PLC

Scanning 844.000 MHz PLC

Scanning 845.000 MHz PLC

Scanning 846.000 MHz PLC

Scanning 847.000 MHz PLC

Scanning 848.000 MHz PLC

Scanning 849.000 MHz PLC

Scanning 850.000 MHz PLC

Scanning 851.000 MHz PLC

Scanning 852.000 MHz PLC

Scanning 853.000 MHz PLC

Scanning 854.000 MHz PLC

Scanning 855.000 MHz PLC

Scanning 856.000 MHz PLC

Scanning 857.000 MHz PLC

Scanning 858.000 MHz PLC

Scanning 859.000 MHz PLC

Scanning 860.000 MHz PLC

Scanning 861.000 MHz PLC

Scanning 813.000 MHz PLC/SC-QAM (Scan list #1)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 862.000 MHz PLC

Scanning 863.000 MHz PLC

Scanning 864.000 MHz PLC

Scanning 865.000 MHz PLC

Scanning 866.000 MHz PLC

Scanning 867.000 MHz PLC

Scanning 868.000 MHz PLC

Scanning 869.000 MHz PLC

Scanning 870.000 MHz PLC

Scanning 871.000 MHz PLC

Scanning 872.000 MHz PLC

Scanning 873.000 MHz PLC

Scanning 874.000 MHz PLC

Scanning 875.000 MHz PLC

Scanning 876.000 MHz PLC

Scanning 877.000 MHz PLC

Scanning 878.000 MHz PLC

Scanning 879.000 MHz PLC

Scanning 880.000 MHz PLC

Scanning 881.000 MHz PLC

Scanning 882.000 MHz PLC

Scanning 883.000 MHz PLC

Scanning 884.000 MHz PLC

Scanning 885.000 MHz PLC

Scanning 886.000 MHz PLC

Scanning 887.000 MHz PLC

Scanning 888.000 MHz PLC

Scanning 889.000 MHz PLC

Scanning 633.000 MHz PLC/SC-QAM (Scan list #2)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 890.000 MHz PLC

Scanning 891.000 MHz PLC

Scanning 892.000 MHz PLC

Scanning 893.000 MHz PLC

Scanning 894.000 MHz PLC

Scanning 895.000 MHz PLC

Scanning 896.000 MHz PLC

Scanning 897.000 MHz PLC

Scanning 898.000 MHz PLC

Scanning 899.000 MHz PLC

Scanning 900.000 MHz PLC

Scanning 901.000 MHz PLC

Scanning 902.000 MHz PLC

Scanning 903.000 MHz PLC

Scanning 904.000 MHz PLC

Scanning 905.000 MHz PLC

Scanning 906.000 MHz PLC

Scanning 907.000 MHz PLC

Scanning 908.000 MHz PLC

Scanning 909.000 MHz PLC

Scanning 910.000 MHz PLC

Scanning 911.000 MHz PLC

Scanning 912.000 MHz PLC

Scanning 913.000 MHz PLC

Scanning 914.000 MHz PLC

Scanning 915.000 MHz PLC

Scanning 916.000 MHz PLC

Scanning 917.000 MHz PLC

Scanning 333.000 MHz PLC/SC-QAM (Scan list #3)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 918.000 MHz PLC

Scanning 919.000 MHz PLC

Scanning 920.000 MHz PLC

Scanning 921.000 MHz PLC

Scanning 922.000 MHz PLC

Scanning 923.000 MHz PLC

Scanning 924.000 MHz PLC

Scanning 925.000 MHz PLC

Scanning 926.000 MHz PLC

Scanning 927.000 MHz PLC

Scanning 928.000 MHz PLC

Scanning 929.000 MHz PLC

Scanning 930.000 MHz PLC

Scanning 931.000 MHz PLC

Scanning 932.000 MHz PLC

Scanning 933.000 MHz PLC

Scanning 934.000 MHz PLC

Scanning 935.000 MHz PLC

Scanning 936.000 MHz PLC

Scanning 937.000 MHz PLC

Scanning 938.000 MHz PLC

Scanning 939.000 MHz PLC

Scanning 940.000 MHz PLC

Scanning 941.000 MHz PLC

Scanning 942.000 MHz PLC

Scanning 943.000 MHz PLC

Scanning 944.000 MHz PLC

Scanning 945.000 MHz PLC

Scanning 477.000 MHz PLC/SC-QAM (Scan list #4)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 946.000 MHz PLC

Scanning 947.000 MHz PLC

Scanning 948.000 MHz PLC

Scanning 949.000 MHz PLC

Scanning 950.000 MHz PLC

Scanning 951.000 MHz PLC

Scanning 952.000 MHz PLC

Scanning 953.000 MHz PLC

Scanning 954.000 MHz PLC

Scanning 955.000 MHz PLC

Scanning 956.000 MHz PLC

Scanning 957.000 MHz PLC

Scanning 958.000 MHz PLC

Scanning 959.000 MHz PLC

Scanning 960.000 MHz PLC

Scanning 961.000 MHz PLC

Scanning 962.000 MHz PLC

Scanning 963.000 MHz PLC

Scanning 964.000 MHz PLC

Scanning 965.000 MHz PLC

Scanning 966.000 MHz PLC

Scanning 967.000 MHz PLC

Scanning 968.000 MHz PLC

Scanning 969.000 MHz PLC

Scanning 970.000 MHz PLC

Scanning 971.000 MHz PLC

Scanning 972.000 MHz PLC

Scanning 973.000 MHz PLC

Scanning 429.000 MHz PLC/SC-QAM (Scan list #5)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 974.000 MHz PLC

Scanning 975.000 MHz PLC

Scanning 976.000 MHz PLC

Scanning 977.000 MHz PLC

Scanning 978.000 MHz PLC

Scanning 979.000 MHz PLC

Scanning 980.000 MHz PLC

Scanning 981.000 MHz PLC

Scanning 982.000 MHz PLC

Scanning 983.000 MHz PLC

Scanning 984.000 MHz PLC

Scanning 985.000 MHz PLC

Scanning 986.000 MHz PLC

Scanning 987.000 MHz PLC

Scanning 988.000 MHz PLC

Scanning 989.000 MHz PLC

Scanning 990.000 MHz PLC

Scanning 991.000 MHz PLC

Scanning 992.000 MHz PLC

Scanning 993.000 MHz PLC

Scanning 994.000 MHz PLC

Scanning 995.000 MHz PLC

Scanning 996.000 MHz PLC

Scanning 997.000 MHz PLC

Scanning 998.000 MHz PLC

Scanning 999.000 MHz PLC

Scanning 1000.000 MHz PLC

Scanning 1001.000 MHz PLC

Scanning 1050.000 MHz PLC/SC-QAM (Scan list #6)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1002.000 MHz PLC

Scanning 1003.000 MHz PLC

Scanning 1004.000 MHz PLC

Scanning 1005.000 MHz PLC

Scanning 1006.000 MHz PLC

Scanning 1007.000 MHz PLC

Scanning 1008.000 MHz PLC

Scanning 1009.000 MHz PLC

Scanning 1010.000 MHz PLC

Scanning 1011.000 MHz PLC

Scanning 1012.000 MHz PLC

Scanning 1013.000 MHz PLC

Scanning 1014.000 MHz PLC

Scanning 1015.000 MHz PLC

Scanning 1016.000 MHz PLC

Scanning 1017.000 MHz PLC

Scanning 1018.000 MHz PLC

Scanning 1019.000 MHz PLC

Scanning 1020.000 MHz PLC

Scanning 1021.000 MHz PLC

Scanning 1022.000 MHz PLC

Scanning 1023.000 MHz PLC

Scanning 1024.000 MHz PLC

Scanning 1025.000 MHz PLC

Scanning 1026.000 MHz PLC

Scanning 1027.000 MHz PLC

Scanning 1028.000 MHz PLC

Scanning 1029.000 MHz PLC

Scanning 999.000 MHz PLC/SC-QAM (Scan list #7)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1030.000 MHz PLC

Scanning 1031.000 MHz PLC

Scanning 1032.000 MHz PLC

Scanning 1033.000 MHz PLC

Scanning 1034.000 MHz PLC

Scanning 1035.000 MHz PLC

Scanning 1036.000 MHz PLC

Scanning 1037.000 MHz PLC

Scanning 1038.000 MHz PLC

Scanning 1039.000 MHz PLC

Scanning 1040.000 MHz PLC

Scanning 1041.000 MHz PLC

Scanning 1042.000 MHz PLC

Scanning 1043.000 MHz PLC

Scanning 1044.000 MHz PLC

Scanning 1045.000 MHz PLC

Scanning 1046.000 MHz PLC

Scanning 1047.000 MHz PLC

Scanning 1048.000 MHz PLC

Scanning 1049.000 MHz PLC

Scanning 1050.000 MHz PLC

Scanning 1051.000 MHz PLC

Scanning 1052.000 MHz PLC

Scanning 1053.000 MHz PLC

Scanning 1054.000 MHz PLC

Scanning 1055.000 MHz PLC

Scanning 1056.000 MHz PLC

Scanning 1057.000 MHz PLC

Scanning 975.000 MHz PLC/SC-QAM (Scan list #8)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1058.000 MHz PLC

Scanning 1059.000 MHz PLC

Scanning 1060.000 MHz PLC

Scanning 1061.000 MHz PLC

Scanning 1062.000 MHz PLC

Scanning 1063.000 MHz PLC

Scanning 1064.000 MHz PLC

Scanning 1065.000 MHz PLC

Scanning 1066.000 MHz PLC

Scanning 1067.000 MHz PLC

Scanning 1068.000 MHz PLC

Scanning 1069.000 MHz PLC

Scanning 1070.000 MHz PLC

Scanning 1071.000 MHz PLC

Scanning 1072.000 MHz PLC

Scanning 1073.000 MHz PLC

Scanning 1074.000 MHz PLC

Scanning 1075.000 MHz PLC

Scanning 1076.000 MHz PLC

Scanning 1077.000 MHz PLC

Scanning 1078.000 MHz PLC

Scanning 1079.000 MHz PLC

Scanning 1080.000 MHz PLC

Scanning 1081.000 MHz PLC

Scanning 1082.000 MHz PLC

Scanning 1083.000 MHz PLC

Scanning 1084.000 MHz PLC

Scanning 1085.000 MHz PLC

Scanning 951.000 MHz PLC/SC-QAM (Scan list #9)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1086.000 MHz PLC

Scanning 1087.000 MHz PLC

Scanning 1088.000 MHz PLC

Scanning 1089.000 MHz PLC

Scanning 1090.000 MHz PLC

Scanning 1091.000 MHz PLC

Scanning 1092.000 MHz PLC

Scanning 1093.000 MHz PLC

Scanning 1094.000 MHz PLC

Scanning 1095.000 MHz PLC

Scanning 1096.000 MHz PLC

Scanning 1097.000 MHz PLC

Scanning 1098.000 MHz PLC

Scanning 1099.000 MHz PLC

Scanning 1100.000 MHz PLC

Scanning 1101.000 MHz PLC

Scanning 1102.000 MHz PLC

Scanning 1103.000 MHz PLC

Scanning 1104.000 MHz PLC

Scanning 1105.000 MHz PLC

Scanning 1106.000 MHz PLC

Scanning 1107.000 MHz PLC

Scanning 1108.000 MHz PLC

Scanning 1109.000 MHz PLC

Scanning 1110.000 MHz PLC

Scanning 1111.000 MHz PLC

Scanning 1112.000 MHz PLC

Scanning 1113.000 MHz PLC

Scanning 927.000 MHz PLC/SC-QAM (Scan list #10)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1114.000 MHz PLC

Scanning 1115.000 MHz PLC

Scanning 1116.000 MHz PLC

Scanning 1117.000 MHz PLC

Scanning 1118.000 MHz PLC

Scanning 1119.000 MHz PLC

Scanning 1120.000 MHz PLC

Scanning 1121.000 MHz PLC

Scanning 1122.000 MHz PLC

Scanning 1123.000 MHz PLC

Scanning 1124.000 MHz PLC

Scanning 1125.000 MHz PLC

Scanning 1126.000 MHz PLC

Scanning 1127.000 MHz PLC

Scanning 1128.000 MHz PLC

Scanning 1129.000 MHz PLC

Scanning 1130.000 MHz PLC

Scanning 1131.000 MHz PLC

Scanning 1132.000 MHz PLC

Scanning 1133.000 MHz PLC

Scanning 1134.000 MHz PLC

Scanning 1135.000 MHz PLC

Scanning 1136.000 MHz PLC

Scanning 1137.000 MHz PLC

Scanning 1138.000 MHz PLC

Scanning 1139.000 MHz PLC

Scanning 1140.000 MHz PLC

Scanning 1141.000 MHz PLC

Scanning 903.000 MHz PLC/SC-QAM (Scan list #11)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1142.000 MHz PLC

Scanning 1143.000 MHz PLC

Scanning 1144.000 MHz PLC

Scanning 1145.000 MHz PLC

Scanning 1146.000 MHz PLC

Scanning 1147.000 MHz PLC

Scanning 1148.000 MHz PLC

Scanning 1149.000 MHz PLC

Scanning 1150.000 MHz PLC

Scanning 1151.000 MHz PLC

Scanning 1152.000 MHz PLC

Scanning 1153.000 MHz PLC

Scanning 1154.000 MHz PLC

Scanning 1155.000 MHz PLC

Scanning 1156.000 MHz PLC

Scanning 1157.000 MHz PLC

Scanning 1158.000 MHz PLC

Scanning 1159.000 MHz PLC

Scanning 1160.000 MHz PLC

Scanning 1161.000 MHz PLC

Scanning 1162.000 MHz PLC

Scanning 1163.000 MHz PLC

Scanning 1164.000 MHz PLC

Scanning 1165.000 MHz PLC

Scanning 1166.000 MHz PLC

Scanning 1167.000 MHz PLC

Scanning 1168.000 MHz PLC

Scanning 1169.000 MHz PLC

Scanning 879.000 MHz PLC/SC-QAM (Scan list #12)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1170.000 MHz PLC

Scanning 1171.000 MHz PLC

Scanning 1172.000 MHz PLC

Scanning 1173.000 MHz PLC

Scanning 1174.000 MHz PLC

Scanning 1175.000 MHz PLC

Scanning 1176.000 MHz PLC

Scanning 1177.000 MHz PLC

Scanning 1178.000 MHz PLC

Scanning 1179.000 MHz PLC

Scanning 1180.000 MHz PLC

Scanning 1181.000 MHz PLC

Scanning 1182.000 MHz PLC

Scanning 1183.000 MHz PLC

Scanning 1184.000 MHz PLC

Scanning 1185.000 MHz PLC

Scanning 1186.000 MHz PLC

Scanning 1187.000 MHz PLC

Scanning 1188.000 MHz PLC

Scanning 1189.000 MHz PLC

Scanning 1190.000 MHz PLC

Scanning 1191.000 MHz PLC

Scanning 1192.000 MHz PLC

Scanning 1193.000 MHz PLC

Scanning 1194.000 MHz PLC

Scanning 1195.000 MHz PLC

Scanning 1196.000 MHz PLC

Scanning 1197.000 MHz PLC

Scanning 855.000 MHz PLC/SC-QAM (Scan list #13)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1198.000 MHz PLC

Scanning 1199.000 MHz PLC

Scanning 1200.000 MHz PLC

Scanning 1201.000 MHz PLC

Scanning 1202.000 MHz PLC

Scanning 1203.000 MHz PLC

Scanning 1204.000 MHz PLC

Scanning 1205.000 MHz PLC

Scanning 1206.000 MHz PLC

Scanning 1207.000 MHz PLC

Scanning 1208.000 MHz PLC

Scanning 1209.000 MHz PLC

Scanning 1210.000 MHz PLC

Scanning 1211.000 MHz PLC

Scanning 1212.000 MHz PLC

Scanning 1213.000 MHz PLC

Scanning 1214.000 MHz PLC

Scanning 1215.000 MHz PLC

Scanning 1216.000 MHz PLC

Scanning 1217.000 MHz PLC

Scanning 1218.000 MHz PLC

Scanning 1219.000 MHz PLC

Scanning 1220.000 MHz PLC

Scanning 1221.000 MHz PLC

Scanning 1222.000 MHz PLC

Scanning 1223.000 MHz PLC

Scanning 1224.000 MHz PLC

Scanning 1225.000 MHz PLC

Scanning 831.000 MHz PLC/SC-QAM (Scan list #14)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1226.000 MHz PLC

Scanning 1227.000 MHz PLC

Scanning 1228.000 MHz PLC

Scanning 1229.000 MHz PLC

Scanning 1230.000 MHz PLC

Scanning 1231.000 MHz PLC

Scanning 1232.000 MHz PLC

Scanning 1233.000 MHz PLC

Scanning 1234.000 MHz PLC

Scanning 1235.000 MHz PLC

Scanning 1236.000 MHz PLC

Scanning 1237.000 MHz PLC

Scanning 1238.000 MHz PLC

Scanning 1239.000 MHz PLC

Scanning 1240.000 MHz PLC

Scanning 1241.000 MHz PLC

Scanning 1242.000 MHz PLC

Scanning 1243.000 MHz PLC

Scanning 1244.000 MHz PLC

Scanning 1245.000 MHz PLC

Scanning 1246.000 MHz PLC

Scanning 1247.000 MHz PLC

Scanning 1248.000 MHz PLC

Scanning 1249.000 MHz PLC

Scanning 1250.000 MHz PLC

Scanning 1251.000 MHz PLC

Scanning 1252.000 MHz PLC

Scanning 1253.000 MHz PLC

Scanning 812.000 MHz PLC/SC-QAM (Scan list #15)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1254.000 MHz PLC

Scanning 1255.000 MHz PLC

Scanning 1256.000 MHz PLC

Scanning 1257.000 MHz PLC

Scanning 1258.000 MHz PLC

Scanning 1259.000 MHz PLC

Scanning 1260.000 MHz PLC

Scanning 1261.000 MHz PLC

Scanning 1262.000 MHz PLC

Scanning 1263.000 MHz PLC

Scanning 1264.000 MHz PLC

Scanning 1265.000 MHz PLC

Scanning 1266.000 MHz PLC

Scanning 1267.000 MHz PLC

Scanning 1268.000 MHz PLC

Scanning 1269.000 MHz PLC

Scanning 1270.000 MHz PLC

Scanning 1271.000 MHz PLC

Scanning 1272.000 MHz PLC

Scanning 1273.000 MHz PLC

Scanning 1274.000 MHz PLC

Scanning 1275.000 MHz PLC

Scanning 1276.000 MHz PLC

Scanning 1277.000 MHz PLC

Scanning 1278.000 MHz PLC

Scanning 1279.000 MHz PLC

Scanning 1280.000 MHz PLC

Scanning 1281.000 MHz PLC

Scanning 282.000 MHz PLC/SC-QAM (Scan list #16)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1282.000 MHz PLC

Scanning 1283.000 MHz PLC

Scanning 1284.000 MHz PLC

Scanning 1285.000 MHz PLC

Scanning 1286.000 MHz PLC

Scanning 1287.000 MHz PLC

Scanning 1288.000 MHz PLC

Scanning 1289.000 MHz PLC

Scanning 1290.000 MHz PLC

Scanning 1291.000 MHz PLC

Scanning 1292.000 MHz PLC

Scanning 1293.000 MHz PLC

Scanning 1294.000 MHz PLC

Scanning 1295.000 MHz PLC

Scanning 1296.000 MHz PLC

Scanning 1297.000 MHz PLC

Scanning 1298.000 MHz PLC

Scanning 1299.000 MHz PLC

Scanning 1300.000 MHz PLC

Scanning 1301.000 MHz PLC

Scanning 1302.000 MHz PLC

Scanning 1303.000 MHz PLC

Scanning 1304.000 MHz PLC

Scanning 1305.000 MHz PLC

Scanning 1306.000 MHz PLC

Scanning 1307.000 MHz PLC

Scanning 1308.000 MHz PLC

Scanning 1309.000 MHz PLC

Scanning 516.000 MHz PLC/SC-QAM (Scan list #17)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1310.000 MHz PLC

Scanning 1311.000 MHz PLC

Scanning 1312.000 MHz PLC

Scanning 1313.000 MHz PLC

Scanning 1314.000 MHz PLC

Scanning 1315.000 MHz PLC

Scanning 1316.000 MHz PLC

Scanning 1317.000 MHz PLC

Scanning 1318.000 MHz PLC

Scanning 1319.000 MHz PLC

Scanning 1320.000 MHz PLC

Scanning 1321.000 MHz PLC

Scanning 1322.000 MHz PLC

Scanning 1323.000 MHz PLC

Scanning 1324.000 MHz PLC

Scanning 1325.000 MHz PLC

Scanning 1326.000 MHz PLC

Scanning 1327.000 MHz PLC

Scanning 1328.000 MHz PLC

Scanning 1329.000 MHz PLC

Scanning 1330.000 MHz PLC

Scanning 1331.000 MHz PLC

Scanning 1332.000 MHz PLC

Scanning 1333.000 MHz PLC

Scanning 1334.000 MHz PLC

Scanning 1335.000 MHz PLC

Scanning 1336.000 MHz PLC

Scanning 1337.000 MHz PLC

Scanning 522.000 MHz PLC/SC-QAM (Scan list #18)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1338.000 MHz PLC

Scanning 1339.000 MHz PLC

Scanning 1340.000 MHz PLC

Scanning 1341.000 MHz PLC

Scanning 1342.000 MHz PLC

Scanning 1343.000 MHz PLC

Scanning 1344.000 MHz PLC

Scanning 1345.000 MHz PLC

Scanning 1346.000 MHz PLC

Scanning 1347.000 MHz PLC

Scanning 1348.000 MHz PLC

Scanning 1349.000 MHz PLC

Scanning 1350.000 MHz PLC

Scanning 1351.000 MHz PLC

Scanning 1352.000 MHz PLC

Scanning 1353.000 MHz PLC

Scanning 1354.000 MHz PLC

Scanning 1355.000 MHz PLC

Scanning 1356.000 MHz PLC

Scanning 1357.000 MHz PLC

Scanning 1358.000 MHz PLC

Scanning 1359.000 MHz PLC

Scanning 1360.000 MHz PLC

Scanning 1361.000 MHz PLC

Scanning 1362.000 MHz PLC

Scanning 1363.000 MHz PLC

Scanning 1364.000 MHz PLC

Scanning 1365.000 MHz PLC

Scanning 528.000 MHz PLC/SC-QAM (Scan list #19)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1366.000 MHz PLC

Scanning 1367.000 MHz PLC

Scanning 1368.000 MHz PLC

Scanning 1369.000 MHz PLC

Scanning 1370.000 MHz PLC

Scanning 1371.000 MHz PLC

Scanning 1372.000 MHz PLC

Scanning 1373.000 MHz PLC

Scanning 1374.000 MHz PLC

Scanning 1375.000 MHz PLC

Scanning 1376.000 MHz PLC

Scanning 1377.000 MHz PLC

Scanning 1378.000 MHz PLC

Scanning 1379.000 MHz PLC

Scanning 1380.000 MHz PLC

Scanning 1381.000 MHz PLC

Scanning 1382.000 MHz PLC

Scanning 1383.000 MHz PLC

Scanning 1384.000 MHz PLC

Scanning 1385.000 MHz PLC

Scanning 1386.000 MHz PLC

Scanning 1387.000 MHz PLC

Scanning 1388.000 MHz PLC

Scanning 1389.000 MHz PLC

Scanning 1390.000 MHz PLC

Scanning 1391.000 MHz PLC

Scanning 1392.000 MHz PLC

Scanning 1393.000 MHz PLC

Scanning 534.000 MHz PLC/SC-QAM (Scan list #20)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1394.000 MHz PLC

Scanning 1395.000 MHz PLC

Scanning 1396.000 MHz PLC

Scanning 1397.000 MHz PLC

Scanning 1398.000 MHz PLC

Scanning 1399.000 MHz PLC

Scanning 1400.000 MHz PLC

Scanning 1401.000 MHz PLC

Scanning 1402.000 MHz PLC

Scanning 1403.000 MHz PLC

Scanning 1404.000 MHz PLC

Scanning 1405.000 MHz PLC

Scanning 1406.000 MHz PLC

Scanning 1407.000 MHz PLC

Scanning 1408.000 MHz PLC

Scanning 1409.000 MHz PLC

Scanning 1410.000 MHz PLC

Scanning 1411.000 MHz PLC

Scanning 1412.000 MHz PLC

Scanning 1413.000 MHz PLC

Scanning 1414.000 MHz PLC

Scanning 1415.000 MHz PLC

Scanning 1416.000 MHz PLC

Scanning 1417.000 MHz PLC

Scanning 1418.000 MHz PLC

Scanning 1419.000 MHz PLC

Scanning 1420.000 MHz PLC

Scanning 1421.000 MHz PLC

Scanning 540.000 MHz PLC/SC-QAM (Scan list #21)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1422.000 MHz PLC

Scanning 1423.000 MHz PLC

Scanning 1424.000 MHz PLC

Scanning 1425.000 MHz PLC

Scanning 1426.000 MHz PLC

Scanning 1427.000 MHz PLC

Scanning 1428.000 MHz PLC

Scanning 1429.000 MHz PLC

Scanning 1430.000 MHz PLC

Scanning 1431.000 MHz PLC

Scanning 1432.000 MHz PLC

Scanning 1433.000 MHz PLC

Scanning 1434.000 MHz PLC

Scanning 1435.000 MHz PLC

Scanning 1436.000 MHz PLC

Scanning 1437.000 MHz PLC

Scanning 1438.000 MHz PLC

Scanning 1439.000 MHz PLC

Scanning 1440.000 MHz PLC

Scanning 1441.000 MHz PLC

Scanning 1442.000 MHz PLC

Scanning 1443.000 MHz PLC

Scanning 1444.000 MHz PLC

Scanning 1445.000 MHz PLC

Scanning 1446.000 MHz PLC

Scanning 1447.000 MHz PLC

Scanning 1448.000 MHz PLC

Scanning 1449.000 MHz PLC

Scanning 546.000 MHz PLC/SC-QAM (Scan list #22)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1450.000 MHz PLC

Scanning 1451.000 MHz PLC

Scanning 1452.000 MHz PLC

Scanning 1453.000 MHz PLC

Scanning 1454.000 MHz PLC

Scanning 1455.000 MHz PLC

Scanning 1456.000 MHz PLC

Scanning 1457.000 MHz PLC

Scanning 1458.000 MHz PLC

Scanning 1459.000 MHz PLC

Scanning 1460.000 MHz PLC

Scanning 1461.000 MHz PLC

Scanning 1462.000 MHz PLC

Scanning 1463.000 MHz PLC

Scanning 1464.000 MHz PLC

Scanning 1465.000 MHz PLC

Scanning 1466.000 MHz PLC

Scanning 1467.000 MHz PLC

Scanning 1468.000 MHz PLC

Scanning 1469.000 MHz PLC

Scanning 1470.000 MHz PLC

Scanning 1471.000 MHz PLC

Scanning 1472.000 MHz PLC

Scanning 1473.000 MHz PLC

Scanning 1474.000 MHz PLC

Scanning 1475.000 MHz PLC

Scanning 1476.000 MHz PLC

Scanning 1477.000 MHz PLC

Scanning 552.000 MHz PLC/SC-QAM (Scan list #23)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1478.000 MHz PLC

Scanning 1479.000 MHz PLC

Scanning 1480.000 MHz PLC

Scanning 1481.000 MHz PLC

Scanning 1482.000 MHz PLC

Scanning 1483.000 MHz PLC

Scanning 1484.000 MHz PLC

Scanning 1485.000 MHz PLC

Scanning 1486.000 MHz PLC

Scanning 1487.000 MHz PLC

Scanning 1488.000 MHz PLC

Scanning 1489.000 MHz PLC

Scanning 1490.000 MHz PLC

Scanning 1491.000 MHz PLC

Scanning 1492.000 MHz PLC

Scanning 1493.000 MHz PLC

Scanning 1494.000 MHz PLC

Scanning 1495.000 MHz PLC

Scanning 1496.000 MHz PLC

Scanning 1497.000 MHz PLC

Scanning 1498.000 MHz PLC

Scanning 1499.000 MHz PLC

Scanning 1500.000 MHz PLC

Scanning 1501.000 MHz PLC

Scanning 1502.000 MHz PLC

Scanning 1503.000 MHz PLC

Scanning 1504.000 MHz PLC

Scanning 1505.000 MHz PLC

Scanning 558.000 MHz PLC/SC-QAM (Scan list #24)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1506.000 MHz PLC

Scanning 1507.000 MHz PLC

Scanning 1508.000 MHz PLC

Scanning 1509.000 MHz PLC

Scanning 1510.000 MHz PLC

Scanning 1511.000 MHz PLC

Scanning 1512.000 MHz PLC

Scanning 1513.000 MHz PLC

Scanning 1514.000 MHz PLC

Scanning 1515.000 MHz PLC

Scanning 1516.000 MHz PLC

Scanning 1517.000 MHz PLC

Scanning 1518.000 MHz PLC

Scanning 1519.000 MHz PLC

Scanning 1520.000 MHz PLC

Scanning 1521.000 MHz PLC

Scanning 1522.000 MHz PLC

Scanning 1523.000 MHz PLC

Scanning 1524.000 MHz PLC

Scanning 1525.000 MHz PLC

Scanning 1526.000 MHz PLC

Scanning 1527.000 MHz PLC

Scanning 1528.000 MHz PLC

Scanning 1529.000 MHz PLC

Scanning 1530.000 MHz PLC

Scanning 1531.000 MHz PLC

Scanning 1532.000 MHz PLC

Scanning 1533.000 MHz PLC

Scanning 564.000 MHz PLC/SC-QAM (Scan list #25)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1534.000 MHz PLC

Scanning 1535.000 MHz PLC

Scanning 1536.000 MHz PLC

Scanning 1537.000 MHz PLC

Scanning 1538.000 MHz PLC

Scanning 1539.000 MHz PLC

Scanning 1540.000 MHz PLC

Scanning 1541.000 MHz PLC

Scanning 1542.000 MHz PLC

Scanning 1543.000 MHz PLC

Scanning 1544.000 MHz PLC

Scanning 1545.000 MHz PLC

Scanning 1546.000 MHz PLC

Scanning 1547.000 MHz PLC

Scanning 1548.000 MHz PLC

Scanning 1549.000 MHz PLC

Scanning 1550.000 MHz PLC

Scanning 1551.000 MHz PLC

Scanning 1552.000 MHz PLC

Scanning 1553.000 MHz PLC

Scanning 1554.000 MHz PLC

Scanning 1555.000 MHz PLC

Scanning 1556.000 MHz PLC

Scanning 1557.000 MHz PLC

Scanning 1558.000 MHz PLC

Scanning 1559.000 MHz PLC

Scanning 1560.000 MHz PLC

Scanning 1561.000 MHz PLC

Scanning 570.000 MHz PLC/SC-QAM (Scan list #26)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1562.000 MHz PLC

Scanning 1563.000 MHz PLC

Scanning 1564.000 MHz PLC

Scanning 1565.000 MHz PLC

Scanning 1566.000 MHz PLC

Scanning 1567.000 MHz PLC

Scanning 1568.000 MHz PLC

Scanning 1569.000 MHz PLC

Scanning 1570.000 MHz PLC

Scanning 1571.000 MHz PLC

Scanning 1572.000 MHz PLC

Scanning 1573.000 MHz PLC

Scanning 1574.000 MHz PLC

Scanning 1575.000 MHz PLC

Scanning 1576.000 MHz PLC

Scanning 1577.000 MHz PLC

Scanning 1578.000 MHz PLC

Scanning 1579.000 MHz PLC

Scanning 1580.000 MHz PLC

Scanning 1581.000 MHz PLC

Scanning 1582.000 MHz PLC

Scanning 1583.000 MHz PLC

Scanning 1584.000 MHz PLC

Scanning 1585.000 MHz PLC

Scanning 1586.000 MHz PLC

Scanning 1587.000 MHz PLC

Scanning 1588.000 MHz PLC

Scanning 1589.000 MHz PLC

Scanning 576.000 MHz PLC/SC-QAM (Scan list #27)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1590.000 MHz PLC

Scanning 1591.000 MHz PLC

Scanning 1592.000 MHz PLC

Scanning 1593.000 MHz PLC

Scanning 1594.000 MHz PLC

Scanning 1595.000 MHz PLC

Scanning 1596.000 MHz PLC

Scanning 1597.000 MHz PLC

Scanning 1598.000 MHz PLC

Scanning 1599.000 MHz PLC

Scanning 1600.000 MHz PLC

Scanning 1601.000 MHz PLC

Scanning 1602.000 MHz PLC

Scanning 1603.000 MHz PLC

Scanning 1604.000 MHz PLC

Scanning 1605.000 MHz PLC

Scanning 1606.000 MHz PLC

Scanning 1607.000 MHz PLC

Scanning 1608.000 MHz PLC

Scanning 1609.000 MHz PLC

Scanning 1610.000 MHz PLC

Scanning 1611.000 MHz PLC

Scanning 1612.000 MHz PLC

Scanning 1613.000 MHz PLC

Scanning 1614.000 MHz PLC

Scanning 1615.000 MHz PLC

Scanning 1616.000 MHz PLC

Scanning 1617.000 MHz PLC

Scanning 582.000 MHz PLC/SC-QAM (Scan list #28)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1618.000 MHz PLC

Scanning 1619.000 MHz PLC

Scanning 1620.000 MHz PLC

Scanning 1621.000 MHz PLC

Scanning 1622.000 MHz PLC

Scanning 1623.000 MHz PLC

Scanning 1624.000 MHz PLC

Scanning 1625.000 MHz PLC

Scanning 1626.000 MHz PLC

Scanning 1627.000 MHz PLC

Scanning 1628.000 MHz PLC

Scanning 1629.000 MHz PLC

Scanning 1630.000 MHz PLC

Scanning 1631.000 MHz PLC

Scanning 1632.000 MHz PLC

Scanning 1633.000 MHz PLC

Scanning 1634.000 MHz PLC

Scanning 1635.000 MHz PLC

Scanning 1636.000 MHz PLC

Scanning 1637.000 MHz PLC

Scanning 1638.000 MHz PLC

Scanning 1639.000 MHz PLC

Scanning 1640.000 MHz PLC

Scanning 1641.000 MHz PLC

Scanning 1642.000 MHz PLC

Scanning 1643.000 MHz PLC

Scanning 1644.000 MHz PLC

Scanning 1645.000 MHz PLC

Scanning 588.000 MHz PLC/SC-QAM (Scan list #29)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1646.000 MHz PLC

Scanning 1647.000 MHz PLC

Scanning 1648.000 MHz PLC

Scanning 1649.000 MHz PLC

Scanning 1650.000 MHz PLC

Scanning 1651.000 MHz PLC

Scanning 1652.000 MHz PLC

Scanning 1653.000 MHz PLC

Scanning 1654.000 MHz PLC

Scanning 1655.000 MHz PLC

Scanning 1656.000 MHz PLC

Scanning 1657.000 MHz PLC

Scanning 1658.000 MHz PLC

Scanning 1659.000 MHz PLC

Scanning 1660.000 MHz PLC

Scanning 1661.000 MHz PLC

Scanning 1662.000 MHz PLC

Scanning 1663.000 MHz PLC

Scanning 1664.000 MHz PLC

Scanning 1665.000 MHz PLC

Scanning 1666.000 MHz PLC

Scanning 1667.000 MHz PLC

Scanning 1668.000 MHz PLC

Scanning 1669.000 MHz PLC

Scanning 1670.000 MHz PLC

Scanning 1671.000 MHz PLC

Scanning 1672.000 MHz PLC

Scanning 1673.000 MHz PLC

Scanning 594.000 MHz PLC/SC-QAM (Scan list #30)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1674.000 MHz PLC

Scanning 1675.000 MHz PLC

Scanning 1676.000 MHz PLC

Scanning 1677.000 MHz PLC

Scanning 1678.000 MHz PLC

Scanning 1679.000 MHz PLC

Scanning 1680.000 MHz PLC

Scanning 1681.000 MHz PLC

Scanning 1682.000 MHz PLC

Scanning 1683.000 MHz PLC

Scanning 1684.000 MHz PLC

Scanning 1685.000 MHz PLC

Scanning 1686.000 MHz PLC

Scanning 1687.000 MHz PLC

Scanning 1688.000 MHz PLC

Scanning 1689.000 MHz PLC

Scanning 1690.000 MHz PLC

Scanning 1691.000 MHz PLC

Scanning 1692.000 MHz PLC

Scanning 1693.000 MHz PLC

Scanning 1694.000 MHz PLC

Scanning 1695.000 MHz PLC

Scanning 1696.000 MHz PLC

Scanning 1697.000 MHz PLC

Scanning 1698.000 MHz PLC

Scanning 1699.000 MHz PLC

Scanning 1700.000 MHz PLC

Scanning 1701.000 MHz PLC

Scanning 600.000 MHz PLC/SC-QAM (Scan list #31)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1702.000 MHz PLC

Scanning 1703.000 MHz PLC

Scanning 1704.000 MHz PLC

Scanning 1705.000 MHz PLC

Scanning 1706.000 MHz PLC

Scanning 1707.000 MHz PLC

Scanning 1708.000 MHz PLC

Scanning 1709.000 MHz PLC

Scanning 1710.000 MHz PLC

Scanning 1711.000 MHz PLC

Scanning 1712.000 MHz PLC

Scanning 1713.000 MHz PLC

Scanning 1714.000 MHz PLC

Scanning 1715.000 MHz PLC

Scanning 1716.000 MHz PLC

Scanning 1717.000 MHz PLC

Scanning 1718.000 MHz PLC

Scanning 1719.000 MHz PLC

Scanning 1720.000 MHz PLC

Scanning 1721.000 MHz PLC

Scanning 1722.000 MHz PLC

Scanning 1723.000 MHz PLC

Scanning 1724.000 MHz PLC

Scanning 1725.000 MHz PLC

Scanning 1726.000 MHz PLC

Scanning 1727.000 MHz PLC

Scanning 1728.000 MHz PLC

Scanning 1729.000 MHz PLC

Scanning 606.000 MHz PLC/SC-QAM (Scan list #32)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1730.000 MHz PLC

Scanning 1731.000 MHz PLC

Scanning 1732.000 MHz PLC

Scanning 1733.000 MHz PLC

Scanning 1734.000 MHz PLC

Scanning 1735.000 MHz PLC

Scanning 1736.000 MHz PLC

Scanning 1737.000 MHz PLC

Scanning 1738.000 MHz PLC

Scanning 1739.000 MHz PLC

Scanning 1740.000 MHz PLC

Scanning 1741.000 MHz PLC

Scanning 1742.000 MHz PLC

Scanning 1743.000 MHz PLC

Scanning 1744.000 MHz PLC

Scanning 1745.000 MHz PLC

Scanning 1746.000 MHz PLC

Scanning 1747.000 MHz PLC

Scanning 1748.000 MHz PLC

Scanning 1749.000 MHz PLC

Scanning 1750.000 MHz PLC

Scanning 1751.000 MHz PLC

Scanning 1752.000 MHz PLC

Scanning 1753.000 MHz PLC

Scanning 1754.000 MHz PLC

Scanning 1755.000 MHz PLC

Scanning 1756.000 MHz PLC

Scanning 1757.000 MHz PLC

Scanning 612.000 MHz PLC/SC-QAM (Scan list #33)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1758.000 MHz PLC

Scanning 1759.000 MHz PLC

Scanning 1760.000 MHz PLC

Scanning 1761.000 MHz PLC

Scanning 1762.000 MHz PLC

Scanning 1763.000 MHz PLC

Scanning 1764.000 MHz PLC

Scanning 1765.000 MHz PLC

Scanning 1766.000 MHz PLC

Scanning 1767.000 MHz PLC

Scanning 1768.000 MHz PLC

Scanning 1769.000 MHz PLC

Scanning 1770.000 MHz PLC

Scanning 1771.000 MHz PLC

Scanning 1772.000 MHz PLC

Scanning 1773.000 MHz PLC

Scanning 1774.000 MHz PLC

Scanning 1775.000 MHz PLC

Scanning 1776.000 MHz PLC

Scanning 1777.000 MHz PLC

Scanning 1778.000 MHz PLC

Scanning 1779.000 MHz PLC

Scanning 1780.000 MHz PLC

Scanning 1781.000 MHz PLC

Scanning 1782.000 MHz PLC

Scanning 1783.000 MHz PLC

Scanning 1784.000 MHz PLC

Scanning 1785.000 MHz PLC

Scanning 381.000 MHz PLC/SC-QAM (Scan list #0)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1786.000 MHz PLC

Scanning 1787.000 MHz PLC

Scanning 1788.000 MHz PLC

Scanning 1789.000 MHz PLC

Scanning 1790.000 MHz PLC

Scanning 1791.000 MHz PLC

Scanning 1792.000 MHz PLC

Scanning 1793.000 MHz PLC

Scanning 1794.000 MHz PLC

Scanning 108.000 MHz PLC

Scanning 109.000 MHz PLC

Scanning 110.000 MHz PLC

Scanning 111.000 MHz PLC

Scanning 112.000 MHz PLC

Scanning 113.000 MHz PLC

Scanning 114.000 MHz PLC

Scanning 115.000 MHz PLC

Scanning 116.000 MHz PLC

Scanning 117.000 MHz PLC

Scanning 118.000 MHz PLC

Scanning 119.000 MHz PLC

Scanning 120.000 MHz PLC

Scanning 121.000 MHz PLC

Scanning 122.000 MHz PLC

Scanning 123.000 MHz PLC

Scanning 124.000 MHz PLC

Scanning 125.000 MHz PLC

Scanning 126.000 MHz PLC

Scanning 813.000 MHz PLC/SC-QAM (Scan list #1)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 127.000 MHz PLC

Scanning 128.000 MHz PLC

Scanning 129.000 MHz PLC

Scanning 130.000 MHz PLC

Scanning 131.000 MHz PLC

Scanning 132.000 MHz PLC

Scanning 133.000 MHz PLC

Scanning 134.000 MHz PLC

Scanning 135.000 MHz PLC

Scanning 136.000 MHz PLC

Scanning 137.000 MHz PLC

Scanning 138.000 MHz PLC

Scanning 139.000 MHz PLC

Scanning 140.000 MHz PLC

Scanning 141.000 MHz PLC

Scanning 142.000 MHz PLC

Scanning 143.000 MHz PLC

Scanning 144.000 MHz PLC

Scanning 145.000 MHz PLC

Scanning 146.000 MHz PLC

Scanning 147.000 MHz PLC

Scanning 148.000 MHz PLC

Scanning 149.000 MHz PLC

Scanning 150.000 MHz PLC

Scanning 151.000 MHz PLC

Scanning 152.000 MHz PLC

Scanning 153.000 MHz PLC

Scanning 154.000 MHz PLC

Scanning 633.000 MHz PLC/SC-QAM (Scan list #2)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 155.000 MHz PLC

Scanning 156.000 MHz PLC

Scanning 157.000 MHz PLC

Scanning 158.000 MHz PLC

Scanning 159.000 MHz PLC

Scanning 160.000 MHz PLC

Scanning 161.000 MHz PLC

Scanning 162.000 MHz PLC

Scanning 163.000 MHz PLC

Scanning 164.000 MHz PLC

Scanning 165.000 MHz PLC

Scanning 166.000 MHz PLC

Scanning 167.000 MHz PLC

Scanning 168.000 MHz PLC

Scanning 169.000 MHz PLC

Scanning 170.000 MHz PLC

Scanning 171.000 MHz PLC

Scanning 172.000 MHz PLC

Scanning 173.000 MHz PLC

Scanning 174.000 MHz PLC

Scanning 175.000 MHz PLC

Scanning 176.000 MHz PLC

Scanning 177.000 MHz PLC

Scanning 178.000 MHz PLC

Scanning 179.000 MHz PLC

Scanning 180.000 MHz PLC

Scanning 181.000 MHz PLC

Scanning 182.000 MHz PLC

Scanning 333.000 MHz PLC/SC-QAM (Scan list #3)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 183.000 MHz PLC

Scanning 184.000 MHz PLC

Scanning 185.000 MHz PLC

Scanning 186.000 MHz PLC

Scanning 187.000 MHz PLC

Scanning 188.000 MHz PLC

Scanning 189.000 MHz PLC

Scanning 190.000 MHz PLC

Scanning 191.000 MHz PLC

Scanning 192.000 MHz PLC

Scanning 193.000 MHz PLC

Scanning 194.000 MHz PLC

Scanning 195.000 MHz PLC

Scanning 196.000 MHz PLC

Scanning 197.000 MHz PLC

Scanning 198.000 MHz PLC

Scanning 199.000 MHz PLC

Scanning 200.000 MHz PLC

Scanning 201.000 MHz PLC

Scanning 202.000 MHz PLC

Scanning 203.000 MHz PLC

Scanning 204.000 MHz PLC

Scanning 205.000 MHz PLC

Scanning 206.000 MHz PLC

Scanning 207.000 MHz PLC

Scanning 208.000 MHz PLC

Scanning 209.000 MHz PLC

Scanning 210.000 MHz PLC

Scanning 477.000 MHz PLC/SC-QAM (Scan list #4)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 211.000 MHz PLC

Scanning 212.000 MHz PLC

Scanning 213.000 MHz PLC

Scanning 214.000 MHz PLC

Scanning 215.000 MHz PLC

Scanning 216.000 MHz PLC

Scanning 217.000 MHz PLC

Scanning 218.000 MHz PLC

Scanning 219.000 MHz PLC

Scanning 220.000 MHz PLC

Scanning 221.000 MHz PLC

Scanning 222.000 MHz PLC

Scanning 223.000 MHz PLC

Scanning 224.000 MHz PLC

Scanning 225.000 MHz PLC

Scanning 226.000 MHz PLC

Scanning 227.000 MHz PLC

Scanning 228.000 MHz PLC

Scanning 229.000 MHz PLC

Scanning 230.000 MHz PLC

Scanning 231.000 MHz PLC

Scanning 232.000 MHz PLC

Scanning 233.000 MHz PLC

Scanning 234.000 MHz PLC

Scanning 235.000 MHz PLC

Scanning 236.000 MHz PLC

Scanning 237.000 MHz PLC

Scanning 238.000 MHz PLC

Scanning 429.000 MHz PLC/SC-QAM (Scan list #5)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 239.000 MHz PLC

Scanning 240.000 MHz PLC

Scanning 241.000 MHz PLC

Scanning 242.000 MHz PLC

Scanning 243.000 MHz PLC

Scanning 244.000 MHz PLC

Scanning 245.000 MHz PLC

Scanning 246.000 MHz PLC

Scanning 247.000 MHz PLC

Scanning 248.000 MHz PLC

Scanning 249.000 MHz PLC

Scanning 250.000 MHz PLC

Scanning 251.000 MHz PLC

Scanning 252.000 MHz PLC

Scanning 253.000 MHz PLC

Scanning 254.000 MHz PLC

Scanning 255.000 MHz PLC

Scanning 256.000 MHz PLC

Scanning 257.000 MHz PLC

Scanning 258.000 MHz PLC

Scanning 259.000 MHz PLC

Scanning 260.000 MHz PLC

Scanning 261.000 MHz PLC

Scanning 262.000 MHz PLC

Scanning 263.000 MHz PLC

Scanning 264.000 MHz PLC

Scanning 265.000 MHz PLC

Scanning 266.000 MHz PLC

Scanning 1050.000 MHz PLC/SC-QAM (Scan list #6)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 267.000 MHz PLC

Scanning 268.000 MHz PLC

Scanning 269.000 MHz PLC

Scanning 270.000 MHz PLC

Scanning 271.000 MHz PLC

Scanning 272.000 MHz PLC

Scanning 273.000 MHz PLC

Scanning 274.000 MHz PLC

Scanning 275.000 MHz PLC

Scanning 276.000 MHz PLC

Scanning 277.000 MHz PLC

Scanning 278.000 MHz PLC

Scanning 279.000 MHz PLC

Scanning 280.000 MHz PLC

Scanning 281.000 MHz PLC

Scanning 282.000 MHz PLC

Scanning 283.000 MHz PLC

Scanning 284.000 MHz PLC

Scanning 285.000 MHz PLC

Scanning 286.000 MHz PLC

Scanning 287.000 MHz PLC

Scanning 288.000 MHz PLC

Scanning 289.000 MHz PLC

Scanning 290.000 MHz PLC

Scanning 291.000 MHz PLC

Scanning 292.000 MHz PLC

Scanning 293.000 MHz PLC

Scanning 294.000 MHz PLC

Scanning 999.000 MHz PLC/SC-QAM (Scan list #7)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 295.000 MHz PLC

Scanning 296.000 MHz PLC

Scanning 297.000 MHz PLC

Scanning 298.000 MHz PLC

Scanning 299.000 MHz PLC

Scanning 300.000 MHz PLC

Scanning 301.000 MHz PLC

Scanning 302.000 MHz PLC

Scanning 303.000 MHz PLC

Scanning 304.000 MHz PLC

Scanning 305.000 MHz PLC

Scanning 306.000 MHz PLC

Scanning 307.000 MHz PLC

Scanning 308.000 MHz PLC

Scanning 309.000 MHz PLC

Scanning 310.000 MHz PLC

Scanning 311.000 MHz PLC

Scanning 312.000 MHz PLC

Scanning 313.000 MHz PLC

Scanning 314.000 MHz PLC

Scanning 315.000 MHz PLC

Scanning 316.000 MHz PLC

Scanning 317.000 MHz PLC

Scanning 318.000 MHz PLC

Scanning 319.000 MHz PLC

Scanning 320.000 MHz PLC

Scanning 321.000 MHz PLC

Scanning 322.000 MHz PLC

Scanning 975.000 MHz PLC/SC-QAM (Scan list #8)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 323.000 MHz PLC

Scanning 324.000 MHz PLC

Scanning 325.000 MHz PLC

Scanning 326.000 MHz PLC

Scanning 327.000 MHz PLC

Scanning 328.000 MHz PLC

Scanning 329.000 MHz PLC

Scanning 330.000 MHz PLC

Scanning 331.000 MHz PLC

Scanning 332.000 MHz PLC

Scanning 333.000 MHz PLC

Scanning 334.000 MHz PLC

Scanning 335.000 MHz PLC

Scanning 336.000 MHz PLC

Scanning 337.000 MHz PLC

Scanning 338.000 MHz PLC

Scanning 339.000 MHz PLC

Scanning 340.000 MHz PLC

Scanning 341.000 MHz PLC

Scanning 342.000 MHz PLC

Scanning 343.000 MHz PLC

Scanning 344.000 MHz PLC

Scanning 345.000 MHz PLC

Scanning 346.000 MHz PLC

Scanning 347.000 MHz PLC

Scanning 348.000 MHz PLC

Scanning 349.000 MHz PLC

Scanning 350.000 MHz PLC

Scanning 951.000 MHz PLC/SC-QAM (Scan list #9)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 351.000 MHz PLC

Scanning 352.000 MHz PLC

Scanning 353.000 MHz PLC

Scanning 354.000 MHz PLC

Scanning 355.000 MHz PLC

Scanning 356.000 MHz PLC

Scanning 357.000 MHz PLC

Scanning 358.000 MHz PLC

Scanning 359.000 MHz PLC

Scanning 360.000 MHz PLC

Scanning 361.000 MHz PLC

Scanning 362.000 MHz PLC

Scanning 363.000 MHz PLC

Scanning 364.000 MHz PLC

Scanning 365.000 MHz PLC

Scanning 366.000 MHz PLC

Scanning 367.000 MHz PLC

Scanning 368.000 MHz PLC

Scanning 369.000 MHz PLC

Scanning 370.000 MHz PLC

Scanning 371.000 MHz PLC

Scanning 372.000 MHz PLC

Scanning 373.000 MHz PLC

Scanning 374.000 MHz PLC

Scanning 375.000 MHz PLC

Scanning 376.000 MHz PLC

Scanning 377.000 MHz PLC

Scanning 378.000 MHz PLC

Scanning 927.000 MHz PLC/SC-QAM (Scan list #10)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 379.000 MHz PLC

Scanning 380.000 MHz PLC

Scanning 381.000 MHz PLC

Scanning 382.000 MHz PLC

Scanning 383.000 MHz PLC

Scanning 384.000 MHz PLC

Scanning 385.000 MHz PLC

Scanning 386.000 MHz PLC

Scanning 387.000 MHz PLC

Scanning 388.000 MHz PLC

Scanning 389.000 MHz PLC

Scanning 390.000 MHz PLC

Scanning 391.000 MHz PLC

Scanning 392.000 MHz PLC

Scanning 393.000 MHz PLC

Scanning 394.000 MHz PLC

Scanning 395.000 MHz PLC

Scanning 396.000 MHz PLC

Scanning 397.000 MHz PLC

Scanning 398.000 MHz PLC

Scanning 399.000 MHz PLC

Scanning 400.000 MHz PLC

Scanning 401.000 MHz PLC

Scanning 402.000 MHz PLC

Scanning 403.000 MHz PLC

Scanning 404.000 MHz PLC

Scanning 405.000 MHz PLC

Scanning 406.000 MHz PLC

Scanning 903.000 MHz PLC/SC-QAM (Scan list #11)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 407.000 MHz PLC

Scanning 408.000 MHz PLC

Scanning 409.000 MHz PLC

Scanning 410.000 MHz PLC

Scanning 411.000 MHz PLC

Scanning 412.000 MHz PLC

Scanning 413.000 MHz PLC

Scanning 414.000 MHz PLC

Scanning 415.000 MHz PLC

Scanning 416.000 MHz PLC

Scanning 417.000 MHz PLC

Scanning 418.000 MHz PLC

Scanning 419.000 MHz PLC

Scanning 420.000 MHz PLC

Scanning 421.000 MHz PLC

Scanning 422.000 MHz PLC

Scanning 423.000 MHz PLC

Scanning 424.000 MHz PLC

Scanning 425.000 MHz PLC

Scanning 426.000 MHz PLC

Scanning 427.000 MHz PLC

Scanning 428.000 MHz PLC

Scanning 429.000 MHz PLC

Scanning 430.000 MHz PLC

Scanning 431.000 MHz PLC

Scanning 432.000 MHz PLC

Scanning 433.000 MHz PLC

Scanning 434.000 MHz PLC

Scanning 879.000 MHz PLC/SC-QAM (Scan list #12)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 435.000 MHz PLC

Scanning 436.000 MHz PLC

Scanning 437.000 MHz PLC

Scanning 438.000 MHz PLC

Scanning 439.000 MHz PLC

Scanning 440.000 MHz PLC

Scanning 441.000 MHz PLC

Scanning 442.000 MHz PLC

Scanning 443.000 MHz PLC

Scanning 444.000 MHz PLC

Scanning 445.000 MHz PLC

Scanning 446.000 MHz PLC

Scanning 447.000 MHz PLC

Scanning 448.000 MHz PLC

Scanning 449.000 MHz PLC

Scanning 450.000 MHz PLC

Scanning 451.000 MHz PLC

Scanning 452.000 MHz PLC

Scanning 453.000 MHz PLC

Scanning 454.000 MHz PLC

Scanning 455.000 MHz PLC

Scanning 456.000 MHz PLC

Scanning 457.000 MHz PLC

Scanning 458.000 MHz PLC

Scanning 459.000 MHz PLC

Scanning 460.000 MHz PLC

Scanning 461.000 MHz PLC

Scanning 462.000 MHz PLC

Scanning 855.000 MHz PLC/SC-QAM (Scan list #13)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 463.000 MHz PLC

Scanning 464.000 MHz PLC

Scanning 465.000 MHz PLC

Scanning 466.000 MHz PLC

Scanning 467.000 MHz PLC

Scanning 468.000 MHz PLC

Scanning 469.000 MHz PLC

Scanning 470.000 MHz PLC

Scanning 471.000 MHz PLC

Scanning 472.000 MHz PLC

Scanning 473.000 MHz PLC

Scanning 474.000 MHz PLC

Scanning 475.000 MHz PLC

Scanning 476.000 MHz PLC

Scanning 477.000 MHz PLC

Scanning 478.000 MHz PLC

Scanning 479.000 MHz PLC

Scanning 480.000 MHz PLC

Scanning 481.000 MHz PLC

Scanning 482.000 MHz PLC

Scanning 483.000 MHz PLC

Scanning 484.000 MHz PLC

Scanning 485.000 MHz PLC

Scanning 486.000 MHz PLC

Scanning 487.000 MHz PLC

Scanning 488.000 MHz PLC

Scanning 489.000 MHz PLC

Scanning 490.000 MHz PLC

Scanning 831.000 MHz PLC/SC-QAM (Scan list #14)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 491.000 MHz PLC

Scanning 492.000 MHz PLC

Scanning 493.000 MHz PLC

Scanning 494.000 MHz PLC

Scanning 495.000 MHz PLC

Scanning 496.000 MHz PLC

Scanning 497.000 MHz PLC

Scanning 498.000 MHz PLC

Scanning 499.000 MHz PLC

Scanning 500.000 MHz PLC

Scanning 501.000 MHz PLC

Scanning 502.000 MHz PLC

Scanning 503.000 MHz PLC

Scanning 504.000 MHz PLC

Scanning 505.000 MHz PLC

Scanning 506.000 MHz PLC

Scanning 507.000 MHz PLC

Scanning 508.000 MHz PLC

Scanning 509.000 MHz PLC

Scanning 510.000 MHz PLC

Scanning 511.000 MHz PLC

Scanning 512.000 MHz PLC

Scanning 513.000 MHz PLC

Scanning 514.000 MHz PLC

Scanning 515.000 MHz PLC

Scanning 516.000 MHz PLC

Scanning 517.000 MHz PLC

Scanning 518.000 MHz PLC

Scanning 812.000 MHz PLC/SC-QAM (Scan list #15)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 519.000 MHz PLC

Scanning 520.000 MHz PLC

Scanning 521.000 MHz PLC

Scanning 522.000 MHz PLC

Scanning 523.000 MHz PLC

Scanning 524.000 MHz PLC

Scanning 525.000 MHz PLC

Scanning 526.000 MHz PLC

Scanning 527.000 MHz PLC

Scanning 528.000 MHz PLC

Scanning 529.000 MHz PLC

Scanning 530.000 MHz PLC

Scanning 531.000 MHz PLC

Scanning 532.000 MHz PLC

Scanning 533.000 MHz PLC

Scanning 534.000 MHz PLC

Scanning 535.000 MHz PLC

Scanning 536.000 MHz PLC

Scanning 537.000 MHz PLC

Scanning 538.000 MHz PLC

Scanning 539.000 MHz PLC

Scanning 540.000 MHz PLC

Scanning 541.000 MHz PLC

Scanning 542.000 MHz PLC

Scanning 543.000 MHz PLC

Scanning 544.000 MHz PLC

Scanning 545.000 MHz PLC

Scanning 546.000 MHz PLC

Scanning 282.000 MHz PLC/SC-QAM (Scan list #16)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 547.000 MHz PLC

Scanning 548.000 MHz PLC

Scanning 549.000 MHz PLC

Scanning 550.000 MHz PLC

Scanning 551.000 MHz PLC

Scanning 552.000 MHz PLC

Scanning 553.000 MHz PLC

Scanning 554.000 MHz PLC

Scanning 555.000 MHz PLC

Scanning 556.000 MHz PLC

Scanning 557.000 MHz PLC

Scanning 558.000 MHz PLC

Scanning 559.000 MHz PLC

Scanning 560.000 MHz PLC

Scanning 561.000 MHz PLC

Scanning 562.000 MHz PLC

Scanning 563.000 MHz PLC

Scanning 564.000 MHz PLC

Scanning 565.000 MHz PLC

Scanning 566.000 MHz PLC

Scanning 567.000 MHz PLC

Scanning 568.000 MHz PLC

Scanning 569.000 MHz PLC

Scanning 570.000 MHz PLC

Scanning 571.000 MHz PLC

Scanning 572.000 MHz PLC

Scanning 573.000 MHz PLC

Scanning 574.000 MHz PLC

Scanning 516.000 MHz PLC/SC-QAM (Scan list #17)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 575.000 MHz PLC

Scanning 576.000 MHz PLC

Scanning 577.000 MHz PLC

Scanning 578.000 MHz PLC

Scanning 579.000 MHz PLC

Scanning 580.000 MHz PLC

Scanning 581.000 MHz PLC

Scanning 582.000 MHz PLC

Scanning 583.000 MHz PLC

Scanning 584.000 MHz PLC

Scanning 585.000 MHz PLC

Scanning 586.000 MHz PLC

Scanning 587.000 MHz PLC

Scanning 588.000 MHz PLC

Scanning 589.000 MHz PLC

Scanning 590.000 MHz PLC

Scanning 591.000 MHz PLC

Scanning 592.000 MHz PLC

Scanning 593.000 MHz PLC

Scanning 594.000 MHz PLC

Scanning 595.000 MHz PLC

Scanning 596.000 MHz PLC

Scanning 597.000 MHz PLC

Scanning 598.000 MHz PLC

Scanning 599.000 MHz PLC

Scanning 600.000 MHz PLC

Scanning 601.000 MHz PLC

Scanning 602.000 MHz PLC

Scanning 522.000 MHz PLC/SC-QAM (Scan list #18)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 603.000 MHz PLC

Scanning 604.000 MHz PLC

Scanning 605.000 MHz PLC

Scanning 606.000 MHz PLC

Scanning 607.000 MHz PLC

Scanning 608.000 MHz PLC

Scanning 609.000 MHz PLC

Scanning 610.000 MHz PLC

Scanning 611.000 MHz PLC

Scanning 612.000 MHz PLC

Scanning 613.000 MHz PLC

Scanning 614.000 MHz PLC

Scanning 615.000 MHz PLC

Scanning 616.000 MHz PLC

Scanning 617.000 MHz PLC

Scanning 618.000 MHz PLC

Scanning 619.000 MHz PLC

Scanning 620.000 MHz PLC

Scanning 621.000 MHz PLC

Scanning 622.000 MHz PLC

Scanning 623.000 MHz PLC

Scanning 624.000 MHz PLC

Scanning 625.000 MHz PLC

Scanning 626.000 MHz PLC

Scanning 627.000 MHz PLC

Scanning 628.000 MHz PLC

Scanning 629.000 MHz PLC

Scanning 630.000 MHz PLC

Scanning 528.000 MHz PLC/SC-QAM (Scan list #19)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 631.000 MHz PLC

Scanning 632.000 MHz PLC

Scanning 633.000 MHz PLC

Scanning 634.000 MHz PLC

Scanning 635.000 MHz PLC

Scanning 636.000 MHz PLC

Scanning 637.000 MHz PLC

Scanning 638.000 MHz PLC

Scanning 639.000 MHz PLC

Scanning 640.000 MHz PLC

Scanning 641.000 MHz PLC

Scanning 642.000 MHz PLC

Scanning 643.000 MHz PLC

Scanning 644.000 MHz PLC

Scanning 645.000 MHz PLC

Scanning 646.000 MHz PLC

Scanning 647.000 MHz PLC

Scanning 648.000 MHz PLC

Scanning 649.000 MHz PLC

Scanning 650.000 MHz PLC

Scanning 651.000 MHz PLC

Scanning 652.000 MHz PLC

Scanning 653.000 MHz PLC

Scanning 654.000 MHz PLC

Scanning 655.000 MHz PLC

Scanning 656.000 MHz PLC

Scanning 657.000 MHz PLC

Scanning 658.000 MHz PLC

Scanning 534.000 MHz PLC/SC-QAM (Scan list #20)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 659.000 MHz PLC

Scanning 660.000 MHz PLC

Scanning 661.000 MHz PLC

Scanning 662.000 MHz PLC

Scanning 663.000 MHz PLC

Scanning 664.000 MHz PLC

Scanning 665.000 MHz PLC

Scanning 666.000 MHz PLC

Scanning 667.000 MHz PLC

Scanning 668.000 MHz PLC

Scanning 669.000 MHz PLC

Scanning 670.000 MHz PLC

Scanning 671.000 MHz PLC

Scanning 672.000 MHz PLC

Scanning 673.000 MHz PLC

Scanning 674.000 MHz PLC

Scanning 675.000 MHz PLC

Scanning 676.000 MHz PLC

Scanning 677.000 MHz PLC

Scanning 678.000 MHz PLC

Scanning 679.000 MHz PLC

Scanning 680.000 MHz PLC

Scanning 681.000 MHz PLC

Scanning 682.000 MHz PLC

Scanning 683.000 MHz PLC

Scanning 684.000 MHz PLC

Scanning 685.000 MHz PLC

Scanning 686.000 MHz PLC

Scanning 540.000 MHz PLC/SC-QAM (Scan list #21)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 687.000 MHz PLC

Scanning 688.000 MHz PLC

Scanning 689.000 MHz PLC

Scanning 690.000 MHz PLC

Scanning 691.000 MHz PLC

Scanning 692.000 MHz PLC

Scanning 693.000 MHz PLC

Scanning 694.000 MHz PLC

Scanning 695.000 MHz PLC

Scanning 696.000 MHz PLC

Scanning 697.000 MHz PLC

Scanning 698.000 MHz PLC

Scanning 699.000 MHz PLC

Scanning 700.000 MHz PLC

Scanning 701.000 MHz PLC

Scanning 702.000 MHz PLC

Scanning 703.000 MHz PLC

Scanning 704.000 MHz PLC

Scanning 705.000 MHz PLC

Scanning 706.000 MHz PLC

Scanning 707.000 MHz PLC

Scanning 708.000 MHz PLC

Scanning 709.000 MHz PLC

Scanning 710.000 MHz PLC

Scanning 711.000 MHz PLC

Scanning 712.000 MHz PLC

Scanning 713.000 MHz PLC

Scanning 714.000 MHz PLC

Scanning 546.000 MHz PLC/SC-QAM (Scan list #22)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 715.000 MHz PLC

Scanning 716.000 MHz PLC

Scanning 717.000 MHz PLC

Scanning 718.000 MHz PLC

Scanning 719.000 MHz PLC

Scanning 720.000 MHz PLC

Scanning 721.000 MHz PLC

Scanning 722.000 MHz PLC

Scanning 723.000 MHz PLC

Scanning 724.000 MHz PLC

Scanning 725.000 MHz PLC

Scanning 726.000 MHz PLC

Scanning 727.000 MHz PLC

Scanning 728.000 MHz PLC

Scanning 729.000 MHz PLC

Scanning 730.000 MHz PLC

Scanning 731.000 MHz PLC

Scanning 732.000 MHz PLC

Scanning 733.000 MHz PLC

Scanning 734.000 MHz PLC

Scanning 735.000 MHz PLC

Scanning 736.000 MHz PLC

Scanning 737.000 MHz PLC

Scanning 738.000 MHz PLC

Scanning 739.000 MHz PLC

Scanning 740.000 MHz PLC

Scanning 741.000 MHz PLC

Scanning 742.000 MHz PLC

Scanning 552.000 MHz PLC/SC-QAM (Scan list #23)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 743.000 MHz PLC

Scanning 744.000 MHz PLC

Scanning 745.000 MHz PLC

Scanning 746.000 MHz PLC

Scanning 747.000 MHz PLC

Scanning 748.000 MHz PLC

Scanning 749.000 MHz PLC

Scanning 750.000 MHz PLC

Scanning 751.000 MHz PLC

Scanning 752.000 MHz PLC

Scanning 753.000 MHz PLC

Scanning 754.000 MHz PLC

Scanning 755.000 MHz PLC

Scanning 756.000 MHz PLC

Scanning 757.000 MHz PLC

Scanning 758.000 MHz PLC

Scanning 759.000 MHz PLC

Scanning 760.000 MHz PLC

Scanning 761.000 MHz PLC

Scanning 762.000 MHz PLC

Scanning 763.000 MHz PLC

Scanning 764.000 MHz PLC

Scanning 765.000 MHz PLC

Scanning 766.000 MHz PLC

Scanning 767.000 MHz PLC

Scanning 768.000 MHz PLC

Scanning 769.000 MHz PLC

Scanning 770.000 MHz PLC

Scanning 558.000 MHz PLC/SC-QAM (Scan list #24)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 771.000 MHz PLC

Scanning 772.000 MHz PLC

Scanning 773.000 MHz PLC

Scanning 774.000 MHz PLC

Scanning 775.000 MHz PLC

Scanning 776.000 MHz PLC

Scanning 777.000 MHz PLC

Scanning 778.000 MHz PLC

Scanning 779.000 MHz PLC

Scanning 780.000 MHz PLC

Scanning 781.000 MHz PLC

Scanning 782.000 MHz PLC

Scanning 783.000 MHz PLC

Scanning 784.000 MHz PLC

Scanning 785.000 MHz PLC

Scanning 786.000 MHz PLC

Scanning 787.000 MHz PLC

Scanning 788.000 MHz PLC

Scanning 789.000 MHz PLC

Scanning 790.000 MHz PLC

Scanning 791.000 MHz PLC

Scanning 792.000 MHz PLC

Scanning 793.000 MHz PLC

Scanning 794.000 MHz PLC

Scanning 795.000 MHz PLC

Scanning 796.000 MHz PLC

Scanning 797.000 MHz PLC

Scanning 798.000 MHz PLC

Scanning 564.000 MHz PLC/SC-QAM (Scan list #25)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 799.000 MHz PLC

Scanning 800.000 MHz PLC

Scanning 801.000 MHz PLC

Scanning 802.000 MHz PLC

Scanning 803.000 MHz PLC

Scanning 804.000 MHz PLC

Scanning 999.000 MHz SC-QAM (STD/IRC)

Scanning 993.000 MHz SC-QAM (STD/IRC)

Scanning 987.000 MHz SC-QAM (STD/IRC)

Scanning 981.000 MHz SC-QAM (STD/IRC)

Scanning 975.000 MHz SC-QAM (STD/IRC)

Scanning 969.000 MHz SC-QAM (STD/IRC)

Scanning 963.000 MHz SC-QAM (STD/IRC)

Scanning 957.000 MHz SC-QAM (STD/IRC)

Scanning 951.000 MHz SC-QAM (STD/IRC)

Scanning 945.000 MHz SC-QAM (STD/IRC)

Scanning 939.000 MHz SC-QAM (STD/IRC)

Scanning 933.000 MHz SC-QAM (STD/IRC)

Scanning 927.000 MHz SC-QAM (STD/IRC)

Scanning 921.000 MHz SC-QAM (STD/IRC)

Scanning 915.000 MHz SC-QAM (STD/IRC)

Scanning 909.000 MHz SC-QAM (STD/IRC)

Scanning 903.000 MHz SC-QAM (STD/IRC)

Scanning 897.000 MHz SC-QAM (STD/IRC)

Scanning 891.000 MHz SC-QAM (STD/IRC)

Scanning 885.000 MHz SC-QAM (STD/IRC)

Scanning 879.000 MHz SC-QAM (STD/IRC)

Scanning 873.000 MHz SC-QAM (STD/IRC)

Scanning 570.000 MHz PLC/SC-QAM (Scan list #26)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 867.000 MHz SC-QAM (STD/IRC)

Scanning 861.000 MHz SC-QAM (STD/IRC)

Scanning 855.000 MHz SC-QAM (STD/IRC)

Scanning 849.000 MHz SC-QAM (STD/IRC)

Scanning 843.000 MHz SC-QAM (STD/IRC)

Scanning 837.000 MHz SC-QAM (STD/IRC)

Scanning 831.000 MHz SC-QAM (STD/IRC)

Scanning 825.000 MHz SC-QAM (STD/IRC)

Scanning 819.000 MHz SC-QAM (STD/IRC)

Scanning 813.000 MHz SC-QAM (STD/IRC)

Scanning 807.000 MHz SC-QAM (STD/IRC)

Scanning 801.000 MHz SC-QAM (STD/IRC)

Scanning 795.000 MHz SC-QAM (STD/IRC)

Scanning 789.000 MHz SC-QAM (STD/IRC)

Scanning 783.000 MHz SC-QAM (STD/IRC)

Scanning 777.000 MHz SC-QAM (STD/IRC)

Scanning 771.000 MHz SC-QAM (STD/IRC)

Scanning 765.000 MHz SC-QAM (STD/IRC)

Scanning 759.000 MHz SC-QAM (STD/IRC)

Scanning 753.000 MHz SC-QAM (STD/IRC)

Scanning 747.000 MHz SC-QAM (STD/IRC)

Scanning 741.000 MHz SC-QAM (STD/IRC)

Scanning 735.000 MHz SC-QAM (STD/IRC)

Scanning 729.000 MHz SC-QAM (STD/IRC)

Scanning 723.000 MHz SC-QAM (STD/IRC)

Scanning 717.000 MHz SC-QAM (STD/IRC)

Scanning 711.000 MHz SC-QAM (STD/IRC)

Scanning 705.000 MHz SC-QAM (STD/IRC)

Scanning 576.000 MHz PLC/SC-QAM (Scan list #27)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 699.000 MHz SC-QAM (STD/IRC)

Scanning 693.000 MHz SC-QAM (STD/IRC)

Scanning 687.000 MHz SC-QAM (STD/IRC)

Scanning 681.000 MHz SC-QAM (STD/IRC)

Scanning 675.000 MHz SC-QAM (STD/IRC)

Scanning 669.000 MHz SC-QAM (STD/IRC)

Scanning 663.000 MHz SC-QAM (STD/IRC)

Scanning 657.000 MHz SC-QAM (STD/IRC)

Scanning 651.000 MHz SC-QAM (STD/IRC)

Scanning 645.000 MHz SC-QAM (STD/IRC)

Scanning 639.000 MHz SC-QAM (STD/IRC)

Scanning 633.000 MHz SC-QAM (STD/IRC)

Scanning 627.000 MHz SC-QAM (STD/IRC)

Scanning 621.000 MHz SC-QAM (STD/IRC)

Scanning 615.000 MHz SC-QAM (STD/IRC)

Scanning 609.000 MHz SC-QAM (STD/IRC)

Scanning 603.000 MHz SC-QAM (STD/IRC)

Scanning 597.000 MHz SC-QAM (STD/IRC)

Scanning 591.000 MHz SC-QAM (STD/IRC)

Scanning 585.000 MHz SC-QAM (STD/IRC)

Scanning 579.000 MHz SC-QAM (STD/IRC)

Scanning 573.000 MHz SC-QAM (STD/IRC)

Scanning 567.000 MHz SC-QAM (STD/IRC)

Scanning 561.000 MHz SC-QAM (STD/IRC)

Scanning 555.000 MHz SC-QAM (STD/IRC)

Scanning 549.000 MHz SC-QAM (STD/IRC)

Scanning 543.000 MHz SC-QAM (STD/IRC)

Scanning 537.000 MHz SC-QAM (STD/IRC)

Scanning 582.000 MHz PLC/SC-QAM (Scan list #28)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 531.000 MHz SC-QAM (STD/IRC)

Scanning 525.000 MHz SC-QAM (STD/IRC)

Scanning 519.000 MHz SC-QAM (STD/IRC)

Scanning 513.000 MHz SC-QAM (STD/IRC)

Scanning 507.000 MHz SC-QAM (STD/IRC)

Scanning 501.000 MHz SC-QAM (STD/IRC)

Scanning 495.000 MHz SC-QAM (STD/IRC)

Scanning 489.000 MHz SC-QAM (STD/IRC)

Scanning 483.000 MHz SC-QAM (STD/IRC)

Scanning 477.000 MHz SC-QAM (STD/IRC)

Scanning 471.000 MHz SC-QAM (STD/IRC)

Scanning 465.000 MHz SC-QAM (STD/IRC)

Scanning 459.000 MHz SC-QAM (STD/IRC)

Scanning 453.000 MHz SC-QAM (STD/IRC)

Scanning 447.000 MHz SC-QAM (STD/IRC)

Scanning 441.000 MHz SC-QAM (STD/IRC)

Scanning 435.000 MHz SC-QAM (STD/IRC)

Scanning 429.000 MHz SC-QAM (STD/IRC)

Scanning 423.000 MHz SC-QAM (STD/IRC)

Scanning 417.000 MHz SC-QAM (STD/IRC)

Scanning 411.000 MHz SC-QAM (STD/IRC)

Scanning 405.000 MHz SC-QAM (STD/IRC)

Scanning 399.000 MHz SC-QAM (STD/IRC)

Scanning 393.000 MHz SC-QAM (STD/IRC)

Scanning 387.000 MHz SC-QAM (STD/IRC)

Scanning 381.000 MHz SC-QAM (STD/IRC)

Scanning 375.000 MHz SC-QAM (STD/IRC)

Scanning 369.000 MHz SC-QAM (STD/IRC)

Scanning 588.000 MHz PLC/SC-QAM (Scan list #29)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 363.000 MHz SC-QAM (STD/IRC)

Scanning 357.000 MHz SC-QAM (STD/IRC)

Scanning 351.000 MHz SC-QAM (STD/IRC)

Scanning 345.000 MHz SC-QAM (STD/IRC)

Scanning 339.000 MHz SC-QAM (STD/IRC)

Scanning 333.000 MHz SC-QAM (STD/IRC)

Scanning 327.000 MHz SC-QAM (STD/IRC)

Scanning 321.000 MHz SC-QAM (STD/IRC)

Scanning 315.000 MHz SC-QAM (STD/IRC)

Scanning 309.000 MHz SC-QAM (STD/IRC)

Scanning 303.000 MHz SC-QAM (STD/IRC)

Scanning 297.000 MHz SC-QAM (STD/IRC)

Scanning 291.000 MHz SC-QAM (STD/IRC)

Scanning 285.000 MHz SC-QAM (STD/IRC)

Scanning 279.000 MHz SC-QAM (STD/IRC)

Scanning 273.000 MHz SC-QAM (STD/IRC)

Scanning 267.000 MHz SC-QAM (STD/IRC)

Scanning 261.000 MHz SC-QAM (STD/IRC)

Scanning 255.000 MHz SC-QAM (STD/IRC)

Scanning 249.000 MHz SC-QAM (STD/IRC)

Scanning 243.000 MHz SC-QAM (STD/IRC)

Scanning 237.000 MHz SC-QAM (STD/IRC)

Scanning 231.000 MHz SC-QAM (STD/IRC)

Scanning 225.000 MHz SC-QAM (STD/IRC)

Scanning 219.000 MHz SC-QAM (STD/IRC)

Scanning 213.000 MHz SC-QAM (STD/IRC)

Scanning 207.000 MHz SC-QAM (STD/IRC)

Scanning 201.000 MHz SC-QAM (STD/IRC)

Scanning 594.000 MHz PLC/SC-QAM (Scan list #30)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 195.000 MHz SC-QAM (STD/IRC)

Scanning 189.000 MHz SC-QAM (STD/IRC)

Scanning 183.000 MHz SC-QAM (STD/IRC)

Scanning 177.000 MHz SC-QAM (STD/IRC)

Scanning 171.000 MHz SC-QAM (STD/IRC)

Scanning 165.000 MHz SC-QAM (STD/IRC)

Scanning 159.000 MHz SC-QAM (STD/IRC)

Scanning 153.000 MHz SC-QAM (STD/IRC)

Scanning 147.000 MHz SC-QAM (STD/IRC)

Scanning 141.000 MHz SC-QAM (STD/IRC)

Scanning 135.000 MHz SC-QAM (STD/IRC)

Scanning 129.000 MHz SC-QAM (STD/IRC)

Scanning 123.000 MHz SC-QAM (STD/IRC)

Scanning 117.000 MHz SC-QAM (STD/IRC)

Scanning 111.000 MHz SC-QAM (STD/IRC)

Scanning 997.750 MHz SC-QAM (HRC)

Scanning 991.750 MHz SC-QAM (HRC)

Scanning 985.750 MHz SC-QAM (HRC)

Scanning 979.750 MHz SC-QAM (HRC)

Scanning 973.750 MHz SC-QAM (HRC)

Scanning 967.750 MHz SC-QAM (HRC)

Scanning 961.750 MHz SC-QAM (HRC)

Scanning 955.750 MHz SC-QAM (HRC)

Scanning 949.750 MHz SC-QAM (HRC)

Scanning 943.750 MHz SC-QAM (HRC)

Scanning 937.750 MHz SC-QAM (HRC)

Scanning 931.750 MHz SC-QAM (HRC)

Scanning 925.750 MHz SC-QAM (HRC)

Scanning 600.000 MHz PLC/SC-QAM (Scan list #31)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 919.750 MHz SC-QAM (HRC)

Scanning 913.750 MHz SC-QAM (HRC)

Scanning 907.750 MHz SC-QAM (HRC)

Scanning 901.750 MHz SC-QAM (HRC)

Scanning 895.750 MHz SC-QAM (HRC)

Scanning 889.750 MHz SC-QAM (HRC)

Scanning 883.750 MHz SC-QAM (HRC)

Scanning 877.750 MHz SC-QAM (HRC)

Scanning 871.750 MHz SC-QAM (HRC)

Scanning 865.750 MHz SC-QAM (HRC)

Scanning 859.750 MHz SC-QAM (HRC)

Scanning 853.750 MHz SC-QAM (HRC)

Scanning 847.750 MHz SC-QAM (HRC)

Scanning 841.750 MHz SC-QAM (HRC)

Scanning 835.750 MHz SC-QAM (HRC)

Scanning 829.750 MHz SC-QAM (HRC)

Scanning 823.750 MHz SC-QAM (HRC)

Scanning 817.750 MHz SC-QAM (HRC)

Scanning 811.750 MHz SC-QAM (HRC)

Scanning 805.750 MHz SC-QAM (HRC)

Scanning 799.750 MHz SC-QAM (HRC)

Scanning 793.750 MHz SC-QAM (HRC)

Scanning 787.750 MHz SC-QAM (HRC)

Scanning 781.750 MHz SC-QAM (HRC)

Scanning 775.750 MHz SC-QAM (HRC)

Scanning 769.750 MHz SC-QAM (HRC)

Scanning 763.750 MHz SC-QAM (HRC)

Scanning 757.750 MHz SC-QAM (HRC)

Scanning 606.000 MHz PLC/SC-QAM (Scan list #32)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 751.750 MHz SC-QAM (HRC)

Scanning 745.750 MHz SC-QAM (HRC)

Scanning 739.750 MHz SC-QAM (HRC)

Scanning 733.750 MHz SC-QAM (HRC)

Scanning 727.750 MHz SC-QAM (HRC)

Scanning 721.750 MHz SC-QAM (HRC)

Scanning 715.750 MHz SC-QAM (HRC)

Scanning 709.750 MHz SC-QAM (HRC)

Scanning 703.750 MHz SC-QAM (HRC)

Scanning 697.750 MHz SC-QAM (HRC)

Scanning 691.750 MHz SC-QAM (HRC)

Scanning 685.750 MHz SC-QAM (HRC)

Scanning 679.750 MHz SC-QAM (HRC)

Scanning 673.750 MHz SC-QAM (HRC)

Scanning 667.750 MHz SC-QAM (HRC)

Scanning 661.750 MHz SC-QAM (HRC)

Scanning 655.750 MHz SC-QAM (HRC)

Scanning 649.750 MHz SC-QAM (HRC)

Scanning 643.750 MHz SC-QAM (HRC)

Scanning 637.750 MHz SC-QAM (HRC)

Scanning 631.750 MHz SC-QAM (HRC)

Scanning 625.750 MHz SC-QAM (HRC)

Scanning 619.750 MHz SC-QAM (HRC)

Scanning 613.750 MHz SC-QAM (HRC)

Scanning 607.750 MHz SC-QAM (HRC)

Scanning 601.750 MHz SC-QAM (HRC)

Scanning 595.750 MHz SC-QAM (HRC)

Scanning 589.750 MHz SC-QAM (HRC)

Scanning 612.000 MHz PLC/SC-QAM (Scan list #33)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 583.750 MHz SC-QAM (HRC)

Scanning 577.750 MHz SC-QAM (HRC)

Scanning 571.750 MHz SC-QAM (HRC)

Scanning 565.750 MHz SC-QAM (HRC)

Scanning 559.750 MHz SC-QAM (HRC)

Scanning 553.750 MHz SC-QAM (HRC)

Scanning 547.750 MHz SC-QAM (HRC)

Scanning 541.750 MHz SC-QAM (HRC)

Scanning 535.750 MHz SC-QAM (HRC)

Scanning 529.750 MHz SC-QAM (HRC)

Scanning 523.750 MHz SC-QAM (HRC)

Scanning 517.750 MHz SC-QAM (HRC)

Scanning 511.750 MHz SC-QAM (HRC)

Scanning 505.750 MHz SC-QAM (HRC)

Scanning 499.750 MHz SC-QAM (HRC)

Scanning 493.750 MHz SC-QAM (HRC)

Scanning 487.750 MHz SC-QAM (HRC)

Scanning 481.750 MHz SC-QAM (HRC)

Scanning 475.750 MHz SC-QAM (HRC)

Scanning 469.750 MHz SC-QAM (HRC)

Scanning 463.750 MHz SC-QAM (HRC)

Scanning 457.750 MHz SC-QAM (HRC)

Scanning 451.750 MHz SC-QAM (HRC)

Scanning 445.750 MHz SC-QAM (HRC)

Scanning 439.750 MHz SC-QAM (HRC)

Scanning 433.750 MHz SC-QAM (HRC)

Scanning 427.750 MHz SC-QAM (HRC)

Scanning 421.750 MHz SC-QAM (HRC)

Scanning 381.000 MHz PLC/SC-QAM (Scan list #0)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 415.750 MHz SC-QAM (HRC)

Scanning 409.750 MHz SC-QAM (HRC)

Scanning 403.750 MHz SC-QAM (HRC)

Scanning 397.750 MHz SC-QAM (HRC)

Scanning 391.750 MHz SC-QAM (HRC)

Scanning 385.750 MHz SC-QAM (HRC)

Scanning 379.750 MHz SC-QAM (HRC)

Scanning 373.750 MHz SC-QAM (HRC)

Scanning 367.750 MHz SC-QAM (HRC)

Scanning 361.750 MHz SC-QAM (HRC)

Scanning 355.750 MHz SC-QAM (HRC)

Scanning 349.750 MHz SC-QAM (HRC)

Scanning 343.750 MHz SC-QAM (HRC)

Scanning 337.750 MHz SC-QAM (HRC)

Scanning 331.750 MHz SC-QAM (HRC)

Scanning 325.750 MHz SC-QAM (HRC)

Scanning 319.750 MHz SC-QAM (HRC)

Scanning 313.750 MHz SC-QAM (HRC)

Scanning 307.750 MHz SC-QAM (HRC)

Scanning 301.750 MHz SC-QAM (HRC)

Scanning 295.750 MHz SC-QAM (HRC)

Scanning 289.750 MHz SC-QAM (HRC)

Scanning 283.750 MHz SC-QAM (HRC)

Scanning 277.750 MHz SC-QAM (HRC)

Scanning 271.750 MHz SC-QAM (HRC)

Scanning 265.750 MHz SC-QAM (HRC)

Scanning 259.750 MHz SC-QAM (HRC)

Scanning 253.750 MHz SC-QAM (HRC)

Scanning 247.750 MHz SC-QAM (HRC)

Scanning 241.750 MHz SC-QAM (HRC)

Scanning 235.750 MHz SC-QAM (HRC)

Scanning 229.750 MHz SC-QAM (HRC)

Scanning 223.750 MHz SC-QAM (HRC)

Scanning 217.750 MHz SC-QAM (HRC)

Scanning 211.750 MHz SC-QAM (HRC)

Scanning 205.750 MHz SC-QAM (HRC)

Scanning 199.750 MHz SC-QAM (HRC)

Scanning 193.750 MHz SC-QAM (HRC)

Scanning 187.750 MHz SC-QAM (HRC)

Scanning 181.750 MHz SC-QAM (HRC)

Scanning 175.750 MHz SC-QAM (HRC)

Scanning 169.750 MHz SC-QAM (HRC)

Scanning 163.750 MHz SC-QAM (HRC)

Scanning 157.750 MHz SC-QAM (HRC)

Scanning 151.750 MHz SC-QAM (HRC)

Scanning 145.750 MHz SC-QAM (HRC)

Scanning 139.750 MHz SC-QAM (HRC)

Scanning 133.750 MHz SC-QAM (HRC)

Scanning 127.750 MHz SC-QAM (HRC)

Scanning 121.750 MHz SC-QAM (HRC)

Scanning 115.750 MHz SC-QAM (HRC)

Scanning 109.750 MHz SC-QAM (HRC)

[00:06:37 01/01/1970] [CmDocsisCtlThread] BcmCmDocsisCtlThread::ScanNextQd: Scanning algorithm has been 'round the horn' 2 times.

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

CM> Scanning 381.000 MHz PLC/SC-QAM (Non-vol entry #1)

Scanning 813.000 MHz PLC/SC-QAM (Non-vol entry #2)

Scanning 633.000 MHz PLC/SC-QAM (Non-vol entry #3)

Scanning 333.000 MHz PLC/SC-QAM (Non-vol entry #4)

Scanning 477.000 MHz PLC/SC-QAM (Non-vol entry #5)

Scanning 429.000 MHz PLC/SC-QAM (Non-vol entry #6)

Scanning 1050.000 MHz PLC/SC-QAM (Non-vol entry #7)

Scanning 999.000 MHz PLC/SC-QAM (Non-vol entry #8)

Scanning 975.000 MHz PLC/SC-QAM (Non-vol entry #9)

Scanning 951.000 MHz PLC/SC-QAM (Non-vol entry #10)

Scanning 927.000 MHz PLC/SC-QAM (Non-vol entry #11)

Scanning 903.000 MHz PLC/SC-QAM (Non-vol entry #12)

Scanning 879.000 MHz PLC/SC-QAM (Non-vol entry #13)

Scanning 855.000 MHz PLC/SC-QAM (Non-vol entry #14)

Scanning 831.000 MHz PLC/SC-QAM (Non-vol entry #15)

Scanning 812.000 MHz PLC/SC-QAM (Non-vol entry #16)

Scanning 282.000 MHz PLC/SC-QAM (Non-vol entry #17)

Scanning 516.000 MHz PLC/SC-QAM (Non-vol entry #18)

Scanning 522.000 MHz PLC/SC-QAM (Non-vol entry #19)

Scanning 528.000 MHz PLC/SC-QAM (Non-vol entry #20)

Scanning 534.000 MHz PLC/SC-QAM (Non-vol entry #21)

Scanning 540.000 MHz PLC/SC-QAM (Non-vol entry #22)

Scanning 546.000 MHz PLC/SC-QAM (Non-vol entry #23)

Scanning 552.000 MHz PLC/SC-QAM (Non-vol entry #24)

Scanning 558.000 MHz PLC/SC-QAM (Non-vol entry #25)

Scanning 564.000 MHz PLC/SC-QAM (Non-vol entry #26)

Scanning 570.000 MHz PLC/SC-QAM (Non-vol entry #27)

Scanning 576.000 MHz PLC/SC-QAM (Non-vol entry #28)

Scanning 582.000 MHz PLC/SC-QAM (Non-vol entry #29)

Scanning 588.000 MHz PLC/SC-QAM (Non-vol entry #30)

Scanning 594.000 MHz PLC/SC-QAM (Non-vol entry #31)

Scanning 600.000 MHz PLC/SC-QAM (Non-vol entry #32)

Scanning 606.000 MHz PLC/SC-QAM (Non-vol entry #33)

Scanning 612.000 MHz PLC/SC-QAM (Non-vol entry #34)

Scanning 804.000 MHz PLC

Scanning 805.000 MHz PLC

Scanning 806.000 MHz PLC

Scanning 807.000 MHz PLC

Scanning 808.000 MHz PLC

Scanning 809.000 MHz PLC

Scanning 810.000 MHz PLC

Scanning 811.000 MHz PLC

Scanning 812.000 MHz PLC

Scanning 813.000 MHz PLC

Scanning 814.000 MHz PLC

Scanning 815.000 MHz PLC

Scanning 816.000 MHz PLC

Scanning 817.000 MHz PLC

Scanning 818.000 MHz PLC

Scanning 819.000 MHz PLC

Scanning 820.000 MHz PLC

Scanning 821.000 MHz PLC

Scanning 822.000 MHz PLC

Scanning 823.000 MHz PLC

Scanning 824.000 MHz PLC

Scanning 825.000 MHz PLC

Scanning 826.000 MHz PLC

Scanning 827.000 MHz PLC

Scanning 828.000 MHz PLC

Scanning 829.000 MHz PLC

Scanning 830.000 MHz PLC

Scanning 831.000 MHz PLC

Scanning 832.000 MHz PLC

Scanning 833.000 MHz PLC

Scanning 381.000 MHz PLC/SC-QAM (Scan list #0)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 834.000 MHz PLC

Scanning 835.000 MHz PLC

Scanning 836.000 MHz PLC

Scanning 837.000 MHz PLC

Scanning 838.000 MHz PLC

Scanning 839.000 MHz PLC

Scanning 840.000 MHz PLC

Scanning 841.000 MHz PLC

Scanning 842.000 MHz PLC

Scanning 843.000 MHz PLC

Scanning 844.000 MHz PLC

Scanning 845.000 MHz PLC

Scanning 846.000 MHz PLC

Scanning 847.000 MHz PLC

Scanning 848.000 MHz PLC

Scanning 849.000 MHz PLC

Scanning 850.000 MHz PLC

Scanning 851.000 MHz PLC

Scanning 852.000 MHz PLC

Scanning 853.000 MHz PLC

Scanning 854.000 MHz PLC

Scanning 855.000 MHz PLC

Scanning 856.000 MHz PLC

Scanning 857.000 MHz PLC

Scanning 858.000 MHz PLC

Scanning 859.000 MHz PLC

Scanning 860.000 MHz PLC

Scanning 861.000 MHz PLC

Scanning 813.000 MHz PLC/SC-QAM (Scan list #1)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 862.000 MHz PLC

Scanning 863.000 MHz PLC

Scanning 864.000 MHz PLC

Scanning 865.000 MHz PLC

Scanning 866.000 MHz PLC

Scanning 867.000 MHz PLC

Scanning 868.000 MHz PLC

Scanning 869.000 MHz PLC

Scanning 870.000 MHz PLC

Scanning 871.000 MHz PLC

Scanning 872.000 MHz PLC

Scanning 873.000 MHz PLC

Scanning 874.000 MHz PLC

Scanning 875.000 MHz PLC

Scanning 876.000 MHz PLC

Scanning 877.000 MHz PLC

Scanning 878.000 MHz PLC

Scanning 879.000 MHz PLC

Scanning 880.000 MHz PLC

Scanning 881.000 MHz PLC

Scanning 882.000 MHz PLC

Scanning 883.000 MHz PLC

Scanning 884.000 MHz PLC

Scanning 885.000 MHz PLC

Scanning 886.000 MHz PLC

Scanning 887.000 MHz PLC

Scanning 888.000 MHz PLC

Scanning 889.000 MHz PLC

Scanning 633.000 MHz PLC/SC-QAM (Scan list #2)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 890.000 MHz PLC

Scanning 891.000 MHz PLC

Scanning 892.000 MHz PLC

Scanning 893.000 MHz PLC

Scanning 894.000 MHz PLC

Scanning 895.000 MHz PLC

Scanning 896.000 MHz PLC

Scanning 897.000 MHz PLC

Scanning 898.000 MHz PLC

Scanning 899.000 MHz PLC

Scanning 900.000 MHz PLC

Scanning 901.000 MHz PLC

Scanning 902.000 MHz PLC

Scanning 903.000 MHz PLC

Scanning 904.000 MHz PLC

Scanning 905.000 MHz PLC

Scanning 906.000 MHz PLC

Scanning 907.000 MHz PLC

Scanning 908.000 MHz PLC

Scanning 909.000 MHz PLC

Scanning 910.000 MHz PLC

Scanning 911.000 MHz PLC

Scanning 912.000 MHz PLC

Scanning 913.000 MHz PLC

Scanning 914.000 MHz PLC

Scanning 915.000 MHz PLC

Scanning 916.000 MHz PLC

Scanning 917.000 MHz PLC

Scanning 333.000 MHz PLC/SC-QAM (Scan list #3)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 918.000 MHz PLC

Scanning 919.000 MHz PLC

Scanning 920.000 MHz PLC

Scanning 921.000 MHz PLC

Scanning 922.000 MHz PLC

Scanning 923.000 MHz PLC

Scanning 924.000 MHz PLC

Scanning 925.000 MHz PLC

Scanning 926.000 MHz PLC

Scanning 927.000 MHz PLC

Scanning 928.000 MHz PLC

Scanning 929.000 MHz PLC

Scanning 930.000 MHz PLC

Scanning 931.000 MHz PLC

Scanning 932.000 MHz PLC

Scanning 933.000 MHz PLC

Scanning 934.000 MHz PLC

Scanning 935.000 MHz PLC

Scanning 936.000 MHz PLC

Scanning 937.000 MHz PLC

Scanning 938.000 MHz PLC

Scanning 939.000 MHz PLC

Scanning 940.000 MHz PLC

Scanning 941.000 MHz PLC

Scanning 942.000 MHz PLC

Scanning 943.000 MHz PLC

Scanning 944.000 MHz PLC

Scanning 945.000 MHz PLC

Scanning 477.000 MHz PLC/SC-QAM (Scan list #4)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 946.000 MHz PLC

Scanning 947.000 MHz PLC

Scanning 948.000 MHz PLC

Scanning 949.000 MHz PLC

Scanning 950.000 MHz PLC

Scanning 951.000 MHz PLC

Scanning 952.000 MHz PLC

Scanning 953.000 MHz PLC

Scanning 954.000 MHz PLC

Scanning 955.000 MHz PLC

Scanning 956.000 MHz PLC

Scanning 957.000 MHz PLC

Scanning 958.000 MHz PLC

Scanning 959.000 MHz PLC

Scanning 960.000 MHz PLC

Scanning 961.000 MHz PLC

Scanning 962.000 MHz PLC

Scanning 963.000 MHz PLC

Scanning 964.000 MHz PLC

Scanning 965.000 MHz PLC

Scanning 966.000 MHz PLC

Scanning 967.000 MHz PLC

Scanning 968.000 MHz PLC

Scanning 969.000 MHz PLC

Scanning 970.000 MHz PLC

Scanning 971.000 MHz PLC

Scanning 972.000 MHz PLC

Scanning 973.000 MHz PLC

Scanning 429.000 MHz PLC/SC-QAM (Scan list #5)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 974.000 MHz PLC

Scanning 975.000 MHz PLC

Scanning 976.000 MHz PLC

Scanning 977.000 MHz PLC

Scanning 978.000 MHz PLC

Scanning 979.000 MHz PLC

Scanning 980.000 MHz PLC

Scanning 981.000 MHz PLC

Scanning 982.000 MHz PLC

Scanning 983.000 MHz PLC

Scanning 984.000 MHz PLC

Scanning 985.000 MHz PLC

Scanning 986.000 MHz PLC

Scanning 987.000 MHz PLC

Scanning 988.000 MHz PLC

Scanning 989.000 MHz PLC

Scanning 990.000 MHz PLC

Scanning 991.000 MHz PLC

Scanning 992.000 MHz PLC

Scanning 993.000 MHz PLC

Scanning 994.000 MHz PLC

Scanning 995.000 MHz PLC

Scanning 996.000 MHz PLC

Scanning 997.000 MHz PLC

Scanning 998.000 MHz PLC

Scanning 999.000 MHz PLC

Scanning 1000.000 MHz PLC

Scanning 1001.000 MHz PLC

Scanning 1050.000 MHz PLC/SC-QAM (Scan list #6)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1002.000 MHz PLC

Scanning 1003.000 MHz PLC

Scanning 1004.000 MHz PLC

Scanning 1005.000 MHz PLC

Scanning 1006.000 MHz PLC

Scanning 1007.000 MHz PLC

Scanning 1008.000 MHz PLC

Scanning 1009.000 MHz PLC

Scanning 1010.000 MHz PLC

Scanning 1011.000 MHz PLC

Scanning 1012.000 MHz PLC

Scanning 1013.000 MHz PLC

Scanning 1014.000 MHz PLC

Scanning 1015.000 MHz PLC

Scanning 1016.000 MHz PLC

Scanning 1017.000 MHz PLC

Scanning 1018.000 MHz PLC

Scanning 1019.000 MHz PLC

Scanning 1020.000 MHz PLC

Scanning 1021.000 MHz PLC

Scanning 1022.000 MHz PLC

Scanning 1023.000 MHz PLC

Scanning 1024.000 MHz PLC

Scanning 1025.000 MHz PLC

Scanning 1026.000 MHz PLC

Scanning 1027.000 MHz PLC

Scanning 1028.000 MHz PLC

Scanning 1029.000 MHz PLC

Scanning 999.000 MHz PLC/SC-QAM (Scan list #7)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1030.000 MHz PLC

Scanning 1031.000 MHz PLC

Scanning 1032.000 MHz PLC

Scanning 1033.000 MHz PLC

Scanning 1034.000 MHz PLC

Scanning 1035.000 MHz PLC

Scanning 1036.000 MHz PLC

Scanning 1037.000 MHz PLC

Scanning 1038.000 MHz PLC

Scanning 1039.000 MHz PLC

Scanning 1040.000 MHz PLC

Scanning 1041.000 MHz PLC

Scanning 1042.000 MHz PLC

Scanning 1043.000 MHz PLC

Scanning 1044.000 MHz PLC

Scanning 1045.000 MHz PLC

Scanning 1046.000 MHz PLC

Scanning 1047.000 MHz PLC

Scanning 1048.000 MHz PLC

Scanning 1049.000 MHz PLC

Scanning 1050.000 MHz PLC

Scanning 1051.000 MHz PLC

Scanning 1052.000 MHz PLC

Scanning 1053.000 MHz PLC

Scanning 1054.000 MHz PLC

Scanning 1055.000 MHz PLC

Scanning 1056.000 MHz PLC

Scanning 1057.000 MHz PLC

Scanning 975.000 MHz PLC/SC-QAM (Scan list #8)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1058.000 MHz PLC

Scanning 1059.000 MHz PLC

Scanning 1060.000 MHz PLC

Scanning 1061.000 MHz PLC

Scanning 1062.000 MHz PLC

Scanning 1063.000 MHz PLC

Scanning 1064.000 MHz PLC

Scanning 1065.000 MHz PLC

Scanning 1066.000 MHz PLC

Scanning 1067.000 MHz PLC

Scanning 1068.000 MHz PLC

Scanning 1069.000 MHz PLC

Scanning 1070.000 MHz PLC

Scanning 1071.000 MHz PLC

Scanning 1072.000 MHz PLC

Scanning 1073.000 MHz PLC

Scanning 1074.000 MHz PLC

Scanning 1075.000 MHz PLC

Scanning 1076.000 MHz PLC

Scanning 1077.000 MHz PLC

Scanning 1078.000 MHz PLC

Scanning 1079.000 MHz PLC

Scanning 1080.000 MHz PLC

Scanning 1081.000 MHz PLC

Scanning 1082.000 MHz PLC

Scanning 1083.000 MHz PLC

Scanning 1084.000 MHz PLC

Scanning 1085.000 MHz PLC

Scanning 951.000 MHz PLC/SC-QAM (Scan list #9)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1086.000 MHz PLC

Scanning 1087.000 MHz PLC

Scanning 1088.000 MHz PLC

Scanning 1089.000 MHz PLC

Scanning 1090.000 MHz PLC

Scanning 1091.000 MHz PLC

Scanning 1092.000 MHz PLC

Scanning 1093.000 MHz PLC

Scanning 1094.000 MHz PLC

Scanning 1095.000 MHz PLC

Scanning 1096.000 MHz PLC

Scanning 1097.000 MHz PLC

Scanning 1098.000 MHz PLC

Scanning 1099.000 MHz PLC

Scanning 1100.000 MHz PLC

Scanning 1101.000 MHz PLC

Scanning 1102.000 MHz PLC

Scanning 1103.000 MHz PLC

Scanning 1104.000 MHz PLC

Scanning 1105.000 MHz PLC

Scanning 1106.000 MHz PLC

Scanning 1107.000 MHz PLC

Scanning 1108.000 MHz PLC

Scanning 1109.000 MHz PLC

Scanning 1110.000 MHz PLC

Scanning 1111.000 MHz PLC

Scanning 1112.000 MHz PLC

Scanning 1113.000 MHz PLC

Scanning 927.000 MHz PLC/SC-QAM (Scan list #10)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1114.000 MHz PLC

Scanning 1115.000 MHz PLC

Scanning 1116.000 MHz PLC

Scanning 1117.000 MHz PLC

Scanning 1118.000 MHz PLC

Scanning 1119.000 MHz PLC

Scanning 1120.000 MHz PLC

Scanning 1121.000 MHz PLC

Scanning 1122.000 MHz PLC

Scanning 1123.000 MHz PLC

Scanning 1124.000 MHz PLC

Scanning 1125.000 MHz PLC

Scanning 1126.000 MHz PLC

Scanning 1127.000 MHz PLC

Scanning 1128.000 MHz PLC

Scanning 1129.000 MHz PLC

Scanning 1130.000 MHz PLC

Scanning 1131.000 MHz PLC

Scanning 1132.000 MHz PLC

Scanning 1133.000 MHz PLC

Scanning 1134.000 MHz PLC

Scanning 1135.000 MHz PLC

Scanning 1136.000 MHz PLC

Scanning 1137.000 MHz PLC

Scanning 1138.000 MHz PLC

Scanning 1139.000 MHz PLC

Scanning 1140.000 MHz PLC

Scanning 1141.000 MHz PLC

Scanning 903.000 MHz PLC/SC-QAM (Scan list #11)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1142.000 MHz PLC

Scanning 1143.000 MHz PLC

Scanning 1144.000 MHz PLC

Scanning 1145.000 MHz PLC

Scanning 1146.000 MHz PLC

Scanning 1147.000 MHz PLC

Scanning 1148.000 MHz PLC

Scanning 1149.000 MHz PLC

Scanning 1150.000 MHz PLC

Scanning 1151.000 MHz PLC

Scanning 1152.000 MHz PLC

Scanning 1153.000 MHz PLC

Scanning 1154.000 MHz PLC

Scanning 1155.000 MHz PLC

Scanning 1156.000 MHz PLC

Scanning 1157.000 MHz PLC

Scanning 1158.000 MHz PLC

Scanning 1159.000 MHz PLC

Scanning 1160.000 MHz PLC

Scanning 1161.000 MHz PLC

Scanning 1162.000 MHz PLC

Scanning 1163.000 MHz PLC

Scanning 1164.000 MHz PLC

Scanning 1165.000 MHz PLC

Scanning 1166.000 MHz PLC

Scanning 1167.000 MHz PLC

Scanning 1168.000 MHz PLC

Scanning 1169.000 MHz PLC

Scanning 879.000 MHz PLC/SC-QAM (Scan list #12)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1170.000 MHz PLC

Scanning 1171.000 MHz PLC

Scanning 1172.000 MHz PLC

Scanning 1173.000 MHz PLC

Scanning 1174.000 MHz PLC

Scanning 1175.000 MHz PLC

Scanning 1176.000 MHz PLC

Scanning 1177.000 MHz PLC

Scanning 1178.000 MHz PLC

Scanning 1179.000 MHz PLC

Scanning 1180.000 MHz PLC

Scanning 1181.000 MHz PLC

Scanning 1182.000 MHz PLC

Scanning 1183.000 MHz PLC

Scanning 1184.000 MHz PLC

Scanning 1185.000 MHz PLC

Scanning 1186.000 MHz PLC

Scanning 1187.000 MHz PLC

Scanning 1188.000 MHz PLC

Scanning 1189.000 MHz PLC

Scanning 1190.000 MHz PLC

Scanning 1191.000 MHz PLC

Scanning 1192.000 MHz PLC

Scanning 1193.000 MHz PLC

Scanning 1194.000 MHz PLC

Scanning 1195.000 MHz PLC

Scanning 1196.000 MHz PLC

Scanning 1197.000 MHz PLC

Scanning 855.000 MHz PLC/SC-QAM (Scan list #13)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1198.000 MHz PLC

Scanning 1199.000 MHz PLC

Scanning 1200.000 MHz PLC

Scanning 1201.000 MHz PLC

Scanning 1202.000 MHz PLC

Scanning 1203.000 MHz PLC

Scanning 1204.000 MHz PLC

Scanning 1205.000 MHz PLC

Scanning 1206.000 MHz PLC

Scanning 1207.000 MHz PLC

Scanning 1208.000 MHz PLC

Scanning 1209.000 MHz PLC

Scanning 1210.000 MHz PLC

Scanning 1211.000 MHz PLC

Scanning 1212.000 MHz PLC

Scanning 1213.000 MHz PLC

Scanning 1214.000 MHz PLC

Scanning 1215.000 MHz PLC

Scanning 1216.000 MHz PLC

Scanning 1217.000 MHz PLC

Scanning 1218.000 MHz PLC

Scanning 1219.000 MHz PLC

Scanning 1220.000 MHz PLC

Scanning 1221.000 MHz PLC

Scanning 1222.000 MHz PLC

Scanning 1223.000 MHz PLC

Scanning 1224.000 MHz PLC

Scanning 1225.000 MHz PLC

Scanning 831.000 MHz PLC/SC-QAM (Scan list #14)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1226.000 MHz PLC

Scanning 1227.000 MHz PLC

Scanning 1228.000 MHz PLC

Scanning 1229.000 MHz PLC

Scanning 1230.000 MHz PLC

Scanning 1231.000 MHz PLC

Scanning 1232.000 MHz PLC

Scanning 1233.000 MHz PLC

Scanning 1234.000 MHz PLC

Scanning 1235.000 MHz PLC

Scanning 1236.000 MHz PLC

Scanning 1237.000 MHz PLC

Scanning 1238.000 MHz PLC

Scanning 1239.000 MHz PLC

Scanning 1240.000 MHz PLC

Scanning 1241.000 MHz PLC

Scanning 1242.000 MHz PLC

Scanning 1243.000 MHz PLC

Scanning 1244.000 MHz PLC

Scanning 1245.000 MHz PLC

Scanning 1246.000 MHz PLC

Scanning 1247.000 MHz PLC

Scanning 1248.000 MHz PLC

Scanning 1249.000 MHz PLC

Scanning 1250.000 MHz PLC

Scanning 1251.000 MHz PLC

Scanning 1252.000 MHz PLC

Scanning 1253.000 MHz PLC

Scanning 812.000 MHz PLC/SC-QAM (Scan list #15)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1254.000 MHz PLC

Scanning 1255.000 MHz PLC

Scanning 1256.000 MHz PLC

Scanning 1257.000 MHz PLC

Scanning 1258.000 MHz PLC

Scanning 1259.000 MHz PLC

Scanning 1260.000 MHz PLC

Scanning 1261.000 MHz PLC

Scanning 1262.000 MHz PLC

Scanning 1263.000 MHz PLC

Scanning 1264.000 MHz PLC

Scanning 1265.000 MHz PLC

Scanning 1266.000 MHz PLC

Scanning 1267.000 MHz PLC

Scanning 1268.000 MHz PLC

Scanning 1269.000 MHz PLC

Scanning 1270.000 MHz PLC

Scanning 1271.000 MHz PLC

Scanning 1272.000 MHz PLC

Scanning 1273.000 MHz PLC

Scanning 1274.000 MHz PLC

Scanning 1275.000 MHz PLC

Scanning 1276.000 MHz PLC

Scanning 1277.000 MHz PLC

Scanning 1278.000 MHz PLC

Scanning 1279.000 MHz PLC

Scanning 1280.000 MHz PLC

Scanning 1281.000 MHz PLC

Scanning 282.000 MHz PLC/SC-QAM (Scan list #16)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1282.000 MHz PLC

Scanning 1283.000 MHz PLC

Scanning 1284.000 MHz PLC

Scanning 1285.000 MHz PLC

Scanning 1286.000 MHz PLC

Scanning 1287.000 MHz PLC

Scanning 1288.000 MHz PLC

Scanning 1289.000 MHz PLC

Scanning 1290.000 MHz PLC

Scanning 1291.000 MHz PLC

Scanning 1292.000 MHz PLC

Scanning 1293.000 MHz PLC

Scanning 1294.000 MHz PLC

Scanning 1295.000 MHz PLC

Scanning 1296.000 MHz PLC

Scanning 1297.000 MHz PLC

Scanning 1298.000 MHz PLC

Scanning 1299.000 MHz PLC

Scanning 1300.000 MHz PLC

Scanning 1301.000 MHz PLC

Scanning 1302.000 MHz PLC

Scanning 1303.000 MHz PLC

Scanning 1304.000 MHz PLC

Scanning 1305.000 MHz PLC

Scanning 1306.000 MHz PLC

Scanning 1307.000 MHz PLC

Scanning 1308.000 MHz PLC

Scanning 1309.000 MHz PLC

Scanning 516.000 MHz PLC/SC-QAM (Scan list #17)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1310.000 MHz PLC

Scanning 1311.000 MHz PLC

Scanning 1312.000 MHz PLC

Scanning 1313.000 MHz PLC

Scanning 1314.000 MHz PLC

Scanning 1315.000 MHz PLC

Scanning 1316.000 MHz PLC

Scanning 1317.000 MHz PLC

Scanning 1318.000 MHz PLC

Scanning 1319.000 MHz PLC

Scanning 1320.000 MHz PLC

Scanning 1321.000 MHz PLC

Scanning 1322.000 MHz PLC

Scanning 1323.000 MHz PLC

Scanning 1324.000 MHz PLC

Scanning 1325.000 MHz PLC

Scanning 1326.000 MHz PLC

Scanning 1327.000 MHz PLC

Scanning 1328.000 MHz PLC

Scanning 1329.000 MHz PLC

Scanning 1330.000 MHz PLC

Scanning 1331.000 MHz PLC

Scanning 1332.000 MHz PLC

Scanning 1333.000 MHz PLC

Scanning 1334.000 MHz PLC

Scanning 1335.000 MHz PLC

Scanning 1336.000 MHz PLC

Scanning 1337.000 MHz PLC

Scanning 522.000 MHz PLC/SC-QAM (Scan list #18)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1338.000 MHz PLC

Scanning 1339.000 MHz PLC

Scanning 1340.000 MHz PLC

Scanning 1341.000 MHz PLC

Scanning 1342.000 MHz PLC

Scanning 1343.000 MHz PLC

Scanning 1344.000 MHz PLC

Scanning 1345.000 MHz PLC

Scanning 1346.000 MHz PLC

Scanning 1347.000 MHz PLC

Scanning 1348.000 MHz PLC

Scanning 1349.000 MHz PLC

Scanning 1350.000 MHz PLC

Scanning 1351.000 MHz PLC

Scanning 1352.000 MHz PLC

Scanning 1353.000 MHz PLC

Scanning 1354.000 MHz PLC

Scanning 1355.000 MHz PLC

Scanning 1356.000 MHz PLC

Scanning 1357.000 MHz PLC

Scanning 1358.000 MHz PLC

Scanning 1359.000 MHz PLC

Scanning 1360.000 MHz PLC

Scanning 1361.000 MHz PLC

Scanning 1362.000 MHz PLC

Scanning 1363.000 MHz PLC

Scanning 1364.000 MHz PLC

Scanning 1365.000 MHz PLC

Scanning 528.000 MHz PLC/SC-QAM (Scan list #19)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1366.000 MHz PLC

Scanning 1367.000 MHz PLC

Scanning 1368.000 MHz PLC

Scanning 1369.000 MHz PLC

Scanning 1370.000 MHz PLC

Scanning 1371.000 MHz PLC

Scanning 1372.000 MHz PLC

Scanning 1373.000 MHz PLC

Scanning 1374.000 MHz PLC

Scanning 1375.000 MHz PLC

Scanning 1376.000 MHz PLC

Scanning 1377.000 MHz PLC

Scanning 1378.000 MHz PLC

Scanning 1379.000 MHz PLC

Scanning 1380.000 MHz PLC

Scanning 1381.000 MHz PLC

Scanning 1382.000 MHz PLC

Scanning 1383.000 MHz PLC

Scanning 1384.000 MHz PLC

Scanning 1385.000 MHz PLC

Scanning 1386.000 MHz PLC

Scanning 1387.000 MHz PLC

Scanning 1388.000 MHz PLC

Scanning 1389.000 MHz PLC

Scanning 1390.000 MHz PLC

Scanning 1391.000 MHz PLC

Scanning 1392.000 MHz PLC

Scanning 1393.000 MHz PLC

Scanning 534.000 MHz PLC/SC-QAM (Scan list #20)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1394.000 MHz PLC

Scanning 1395.000 MHz PLC

Scanning 1396.000 MHz PLC

Scanning 1397.000 MHz PLC

Scanning 1398.000 MHz PLC

Scanning 1399.000 MHz PLC

Scanning 1400.000 MHz PLC

Scanning 1401.000 MHz PLC

Scanning 1402.000 MHz PLC

Scanning 1403.000 MHz PLC

Scanning 1404.000 MHz PLC

Scanning 1405.000 MHz PLC

Scanning 1406.000 MHz PLC

Scanning 1407.000 MHz PLC

Scanning 1408.000 MHz PLC

Scanning 1409.000 MHz PLC

Scanning 1410.000 MHz PLC

Scanning 1411.000 MHz PLC

Scanning 1412.000 MHz PLC

Scanning 1413.000 MHz PLC

Scanning 1414.000 MHz PLC

Scanning 1415.000 MHz PLC

Scanning 1416.000 MHz PLC

Scanning 1417.000 MHz PLC

Scanning 1418.000 MHz PLC

Scanning 1419.000 MHz PLC

Scanning 1420.000 MHz PLC

Scanning 1421.000 MHz PLC

Scanning 540.000 MHz PLC/SC-QAM (Scan list #21)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1422.000 MHz PLC

Scanning 1423.000 MHz PLC

Scanning 1424.000 MHz PLC

Scanning 1425.000 MHz PLC

Scanning 1426.000 MHz PLC

Scanning 1427.000 MHz PLC

Scanning 1428.000 MHz PLC

Scanning 1429.000 MHz PLC

Scanning 1430.000 MHz PLC

Scanning 1431.000 MHz PLC

Scanning 1432.000 MHz PLC

Scanning 1433.000 MHz PLC

Scanning 1434.000 MHz PLC

Scanning 1435.000 MHz PLC

Scanning 1436.000 MHz PLC

Scanning 1437.000 MHz PLC

Scanning 1438.000 MHz PLC

Scanning 1439.000 MHz PLC

Scanning 1440.000 MHz PLC

Scanning 1441.000 MHz PLC

Scanning 1442.000 MHz PLC

Scanning 1443.000 MHz PLC

Scanning 1444.000 MHz PLC

Scanning 1445.000 MHz PLC

Scanning 1446.000 MHz PLC

Scanning 1447.000 MHz PLC

Scanning 1448.000 MHz PLC

Scanning 1449.000 MHz PLC

Scanning 546.000 MHz PLC/SC-QAM (Scan list #22)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1450.000 MHz PLC

Scanning 1451.000 MHz PLC

Scanning 1452.000 MHz PLC

Scanning 1453.000 MHz PLC

Scanning 1454.000 MHz PLC

Scanning 1455.000 MHz PLC

Scanning 1456.000 MHz PLC

Scanning 1457.000 MHz PLC

Scanning 1458.000 MHz PLC

Scanning 1459.000 MHz PLC

Scanning 1460.000 MHz PLC

Scanning 1461.000 MHz PLC

Scanning 1462.000 MHz PLC

Scanning 1463.000 MHz PLC

Scanning 1464.000 MHz PLC

Scanning 1465.000 MHz PLC

Scanning 1466.000 MHz PLC

Scanning 1467.000 MHz PLC

Scanning 1468.000 MHz PLC

Scanning 1469.000 MHz PLC

Scanning 1470.000 MHz PLC

Scanning 1471.000 MHz PLC

Scanning 1472.000 MHz PLC

Scanning 1473.000 MHz PLC

Scanning 1474.000 MHz PLC

Scanning 1475.000 MHz PLC

Scanning 1476.000 MHz PLC

Scanning 1477.000 MHz PLC

Scanning 552.000 MHz PLC/SC-QAM (Scan list #23)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1478.000 MHz PLC

Scanning 1479.000 MHz PLC

Scanning 1480.000 MHz PLC

Scanning 1481.000 MHz PLC

Scanning 1482.000 MHz PLC

Scanning 1483.000 MHz PLC

Scanning 1484.000 MHz PLC

Scanning 1485.000 MHz PLC

Scanning 1486.000 MHz PLC

Scanning 1487.000 MHz PLC

Scanning 1488.000 MHz PLC

Scanning 1489.000 MHz PLC

Scanning 1490.000 MHz PLC

Scanning 1491.000 MHz PLC

Scanning 1492.000 MHz PLC

Scanning 1493.000 MHz PLC

Scanning 1494.000 MHz PLC

Scanning 1495.000 MHz PLC

Scanning 1496.000 MHz PLC

Scanning 1497.000 MHz PLC

Scanning 1498.000 MHz PLC

Scanning 1499.000 MHz PLC

Scanning 1500.000 MHz PLC

Scanning 1501.000 MHz PLC

Scanning 1502.000 MHz PLC

Scanning 1503.000 MHz PLC

Scanning 1504.000 MHz PLC

Scanning 1505.000 MHz PLC

Scanning 558.000 MHz PLC/SC-QAM (Scan list #24)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1506.000 MHz PLC

Scanning 1507.000 MHz PLC

Scanning 1508.000 MHz PLC

Scanning 1509.000 MHz PLC

Scanning 1510.000 MHz PLC

Scanning 1511.000 MHz PLC

Scanning 1512.000 MHz PLC

Scanning 1513.000 MHz PLC

Scanning 1514.000 MHz PLC

Scanning 1515.000 MHz PLC

Scanning 1516.000 MHz PLC

Scanning 1517.000 MHz PLC

Scanning 1518.000 MHz PLC

Scanning 1519.000 MHz PLC

Scanning 1520.000 MHz PLC

Scanning 1521.000 MHz PLC

Scanning 1522.000 MHz PLC

Scanning 1523.000 MHz PLC

Scanning 1524.000 MHz PLC

Scanning 1525.000 MHz PLC

Scanning 1526.000 MHz PLC

Scanning 1527.000 MHz PLC

Scanning 1528.000 MHz PLC

Scanning 1529.000 MHz PLC

Scanning 1530.000 MHz PLC

Scanning 1531.000 MHz PLC

Scanning 1532.000 MHz PLC

Scanning 1533.000 MHz PLC

Scanning 564.000 MHz PLC/SC-QAM (Scan list #25)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1534.000 MHz PLC

Scanning 1535.000 MHz PLC

Scanning 1536.000 MHz PLC

Scanning 1537.000 MHz PLC

Scanning 1538.000 MHz PLC

Scanning 1539.000 MHz PLC

Scanning 1540.000 MHz PLC

Scanning 1541.000 MHz PLC

Scanning 1542.000 MHz PLC

Scanning 1543.000 MHz PLC

Scanning 1544.000 MHz PLC

Scanning 1545.000 MHz PLC

Scanning 1546.000 MHz PLC

Scanning 1547.000 MHz PLC

Scanning 1548.000 MHz PLC

Scanning 1549.000 MHz PLC

Scanning 1550.000 MHz PLC

Scanning 1551.000 MHz PLC

Scanning 1552.000 MHz PLC

Scanning 1553.000 MHz PLC

Scanning 1554.000 MHz PLC

Scanning 1555.000 MHz PLC

Scanning 1556.000 MHz PLC

Scanning 1557.000 MHz PLC

Scanning 1558.000 MHz PLC

Scanning 1559.000 MHz PLC

Scanning 1560.000 MHz PLC

Scanning 1561.000 MHz PLC

Scanning 570.000 MHz PLC/SC-QAM (Scan list #26)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1562.000 MHz PLC

Scanning 1563.000 MHz PLC

Scanning 1564.000 MHz PLC

Scanning 1565.000 MHz PLC

Scanning 1566.000 MHz PLC

Scanning 1567.000 MHz PLC

Scanning 1568.000 MHz PLC

Scanning 1569.000 MHz PLC

Scanning 1570.000 MHz PLC

Scanning 1571.000 MHz PLC

Scanning 1572.000 MHz PLC

Scanning 1573.000 MHz PLC

Scanning 1574.000 MHz PLC

Scanning 1575.000 MHz PLC

Scanning 1576.000 MHz PLC

Scanning 1577.000 MHz PLC

Scanning 1578.000 MHz PLC

Scanning 1579.000 MHz PLC

Scanning 1580.000 MHz PLC

Scanning 1581.000 MHz PLC

Scanning 1582.000 MHz PLC

Scanning 1583.000 MHz PLC

Scanning 1584.000 MHz PLC

Scanning 1585.000 MHz PLC

Scanning 1586.000 MHz PLC

Scanning 1587.000 MHz PLC

Scanning 1588.000 MHz PLC

Scanning 1589.000 MHz PLC

Scanning 576.000 MHz PLC/SC-QAM (Scan list #27)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1590.000 MHz PLC

Scanning 1591.000 MHz PLC

Scanning 1592.000 MHz PLC

Scanning 1593.000 MHz PLC

Scanning 1594.000 MHz PLC

Scanning 1595.000 MHz PLC

Scanning 1596.000 MHz PLC

Scanning 1597.000 MHz PLC

Scanning 1598.000 MHz PLC

Scanning 1599.000 MHz PLC

Scanning 1600.000 MHz PLC

Scanning 1601.000 MHz PLC

Scanning 1602.000 MHz PLC

Scanning 1603.000 MHz PLC

Scanning 1604.000 MHz PLC

Scanning 1605.000 MHz PLC

Scanning 1606.000 MHz PLC

Scanning 1607.000 MHz PLC

Scanning 1608.000 MHz PLC

Scanning 1609.000 MHz PLC

Scanning 1610.000 MHz PLC

Scanning 1611.000 MHz PLC

Scanning 1612.000 MHz PLC

Scanning 1613.000 MHz PLC

Scanning 1614.000 MHz PLC

Scanning 1615.000 MHz PLC

Scanning 1616.000 MHz PLC

Scanning 1617.000 MHz PLC

Scanning 582.000 MHz PLC/SC-QAM (Scan list #28)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1618.000 MHz PLC

Scanning 1619.000 MHz PLC

Scanning 1620.000 MHz PLC

Scanning 1621.000 MHz PLC

Scanning 1622.000 MHz PLC

Scanning 1623.000 MHz PLC

Scanning 1624.000 MHz PLC

Scanning 1625.000 MHz PLC

Scanning 1626.000 MHz PLC

Scanning 1627.000 MHz PLC

Scanning 1628.000 MHz PLC

Scanning 1629.000 MHz PLC

Scanning 1630.000 MHz PLC

Scanning 1631.000 MHz PLC

Scanning 1632.000 MHz PLC

Scanning 1633.000 MHz PLC

Scanning 1634.000 MHz PLC

Scanning 1635.000 MHz PLC

Scanning 1636.000 MHz PLC

Scanning 1637.000 MHz PLC

Scanning 1638.000 MHz PLC

Scanning 1639.000 MHz PLC

Scanning 1640.000 MHz PLC

Scanning 1641.000 MHz PLC

Scanning 1642.000 MHz PLC

Scanning 1643.000 MHz PLC

Scanning 1644.000 MHz PLC

Scanning 1645.000 MHz PLC

Scanning 588.000 MHz PLC/SC-QAM (Scan list #29)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1646.000 MHz PLC

Scanning 1647.000 MHz PLC

Scanning 1648.000 MHz PLC

Scanning 1649.000 MHz PLC

Scanning 1650.000 MHz PLC

Scanning 1651.000 MHz PLC

Scanning 1652.000 MHz PLC

Scanning 1653.000 MHz PLC

Scanning 1654.000 MHz PLC

Scanning 1655.000 MHz PLC

Scanning 1656.000 MHz PLC

Scanning 1657.000 MHz PLC

Scanning 1658.000 MHz PLC

Scanning 1659.000 MHz PLC

Scanning 1660.000 MHz PLC

Scanning 1661.000 MHz PLC

Scanning 1662.000 MHz PLC

Scanning 1663.000 MHz PLC

Scanning 1664.000 MHz PLC

Scanning 1665.000 MHz PLC

Scanning 1666.000 MHz PLC

Scanning 1667.000 MHz PLC

Scanning 1668.000 MHz PLC

Scanning 1669.000 MHz PLC

Scanning 1670.000 MHz PLC

Scanning 1671.000 MHz PLC

Scanning 1672.000 MHz PLC

Scanning 1673.000 MHz PLC

Scanning 594.000 MHz PLC/SC-QAM (Scan list #30)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1674.000 MHz PLC

Scanning 1675.000 MHz PLC

Scanning 1676.000 MHz PLC

Scanning 1677.000 MHz PLC

Scanning 1678.000 MHz PLC

Scanning 1679.000 MHz PLC

Scanning 1680.000 MHz PLC

Scanning 1681.000 MHz PLC

Scanning 1682.000 MHz PLC

Scanning 1683.000 MHz PLC

Scanning 1684.000 MHz PLC

Scanning 1685.000 MHz PLC

Scanning 1686.000 MHz PLC

Scanning 1687.000 MHz PLC

Scanning 1688.000 MHz PLC

Scanning 1689.000 MHz PLC

Scanning 1690.000 MHz PLC

Scanning 1691.000 MHz PLC

Scanning 1692.000 MHz PLC

Scanning 1693.000 MHz PLC

Scanning 1694.000 MHz PLC

Scanning 1695.000 MHz PLC

Scanning 1696.000 MHz PLC

Scanning 1697.000 MHz PLC

Scanning 1698.000 MHz PLC

Scanning 1699.000 MHz PLC

Scanning 1700.000 MHz PLC

Scanning 1701.000 MHz PLC

Scanning 600.000 MHz PLC/SC-QAM (Scan list #31)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1702.000 MHz PLC

Scanning 1703.000 MHz PLC

Scanning 1704.000 MHz PLC

Scanning 1705.000 MHz PLC

Scanning 1706.000 MHz PLC

Scanning 1707.000 MHz PLC

Scanning 1708.000 MHz PLC

Scanning 1709.000 MHz PLC

Scanning 1710.000 MHz PLC

Scanning 1711.000 MHz PLC

Scanning 1712.000 MHz PLC

Scanning 1713.000 MHz PLC

Scanning 1714.000 MHz PLC

Scanning 1715.000 MHz PLC

Scanning 1716.000 MHz PLC

Scanning 1717.000 MHz PLC

Scanning 1718.000 MHz PLC

Scanning 1719.000 MHz PLC

Scanning 1720.000 MHz PLC

Scanning 1721.000 MHz PLC

Scanning 1722.000 MHz PLC

Scanning 1723.000 MHz PLC

Scanning 1724.000 MHz PLC

Scanning 1725.000 MHz PLC

Scanning 1726.000 MHz PLC

Scanning 1727.000 MHz PLC

Scanning 1728.000 MHz PLC

Scanning 1729.000 MHz PLC

Scanning 606.000 MHz PLC/SC-QAM (Scan list #32)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1730.000 MHz PLC

Scanning 1731.000 MHz PLC

Scanning 1732.000 MHz PLC

Scanning 1733.000 MHz PLC

Scanning 1734.000 MHz PLC

Scanning 1735.000 MHz PLC

Scanning 1736.000 MHz PLC

Scanning 1737.000 MHz PLC

Scanning 1738.000 MHz PLC

Scanning 1739.000 MHz PLC

Scanning 1740.000 MHz PLC

Scanning 1741.000 MHz PLC

Scanning 1742.000 MHz PLC

Scanning 1743.000 MHz PLC

Scanning 1744.000 MHz PLC

Scanning 1745.000 MHz PLC

Scanning 1746.000 MHz PLC

Scanning 1747.000 MHz PLC

Scanning 1748.000 MHz PLC

Scanning 1749.000 MHz PLC

Scanning 1750.000 MHz PLC

Scanning 1751.000 MHz PLC

Scanning 1752.000 MHz PLC

Scanning 1753.000 MHz PLC

Scanning 1754.000 MHz PLC

Scanning 1755.000 MHz PLC

Scanning 1756.000 MHz PLC

Scanning 1757.000 MHz PLC

Scanning 612.000 MHz PLC/SC-QAM (Scan list #33)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1758.000 MHz PLC

Scanning 1759.000 MHz PLC

Scanning 1760.000 MHz PLC

Scanning 1761.000 MHz PLC

Scanning 1762.000 MHz PLC

Scanning 1763.000 MHz PLC

Scanning 1764.000 MHz PLC

Scanning 1765.000 MHz PLC

Scanning 1766.000 MHz PLC

Scanning 1767.000 MHz PLC

Scanning 1768.000 MHz PLC

Scanning 1769.000 MHz PLC

Scanning 1770.000 MHz PLC

Scanning 1771.000 MHz PLC

Scanning 1772.000 MHz PLC

Scanning 1773.000 MHz PLC

Scanning 1774.000 MHz PLC

Scanning 1775.000 MHz PLC

Scanning 1776.000 MHz PLC

Scanning 1777.000 MHz PLC

Scanning 1778.000 MHz PLC

Scanning 1779.000 MHz PLC

Scanning 1780.000 MHz PLC

Scanning 1781.000 MHz PLC

Scanning 1782.000 MHz PLC

Scanning 1783.000 MHz PLC

Scanning 1784.000 MHz PLC

Scanning 1785.000 MHz PLC

Scanning 381.000 MHz PLC/SC-QAM (Scan list #0)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 1786.000 MHz PLC

Scanning 1787.000 MHz PLC

Scanning 1788.000 MHz PLC

Scanning 1789.000 MHz PLC

Scanning 1790.000 MHz PLC

Scanning 1791.000 MHz PLC

Scanning 1792.000 MHz PLC

Scanning 1793.000 MHz PLC

Scanning 1794.000 MHz PLC

Scanning 108.000 MHz PLC

Scanning 109.000 MHz PLC

Scanning 110.000 MHz PLC

Scanning 111.000 MHz PLC

Scanning 112.000 MHz PLC

Scanning 113.000 MHz PLC

Scanning 114.000 MHz PLC

Scanning 115.000 MHz PLC

Scanning 116.000 MHz PLC

Scanning 117.000 MHz PLC

Scanning 118.000 MHz PLC

Scanning 119.000 MHz PLC

Scanning 120.000 MHz PLC

Scanning 121.000 MHz PLC

Scanning 122.000 MHz PLC

Scanning 123.000 MHz PLC

Scanning 124.000 MHz PLC

Scanning 125.000 MHz PLC

Scanning 126.000 MHz PLC

Scanning 813.000 MHz PLC/SC-QAM (Scan list #1)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 127.000 MHz PLC

Scanning 128.000 MHz PLC

Scanning 129.000 MHz PLC

Scanning 130.000 MHz PLC

Scanning 131.000 MHz PLC

Scanning 132.000 MHz PLC

Scanning 133.000 MHz PLC

Scanning 134.000 MHz PLC

Scanning 135.000 MHz PLC

Scanning 136.000 MHz PLC

Scanning 137.000 MHz PLC

Scanning 138.000 MHz PLC

Scanning 139.000 MHz PLC

Scanning 140.000 MHz PLC

Scanning 141.000 MHz PLC

Scanning 142.000 MHz PLC

Scanning 143.000 MHz PLC

Scanning 144.000 MHz PLC

Scanning 145.000 MHz PLC

Scanning 146.000 MHz PLC

Scanning 147.000 MHz PLC

Scanning 148.000 MHz PLC

Scanning 149.000 MHz PLC

Scanning 150.000 MHz PLC

Scanning 151.000 MHz PLC

Scanning 152.000 MHz PLC

Scanning 153.000 MHz PLC

Scanning 154.000 MHz PLC

Scanning 633.000 MHz PLC/SC-QAM (Scan list #2)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 155.000 MHz PLC

Scanning 156.000 MHz PLC

Scanning 157.000 MHz PLC

Scanning 158.000 MHz PLC

Scanning 159.000 MHz PLC

Scanning 160.000 MHz PLC

Scanning 161.000 MHz PLC

Scanning 162.000 MHz PLC

Scanning 163.000 MHz PLC

Scanning 164.000 MHz PLC

Scanning 165.000 MHz PLC

Scanning 166.000 MHz PLC

Scanning 167.000 MHz PLC

Scanning 168.000 MHz PLC

Scanning 169.000 MHz PLC

Scanning 170.000 MHz PLC

Scanning 171.000 MHz PLC

Scanning 172.000 MHz PLC

Scanning 173.000 MHz PLC

Scanning 174.000 MHz PLC

Scanning 175.000 MHz PLC

Scanning 176.000 MHz PLC

Scanning 177.000 MHz PLC

Scanning 178.000 MHz PLC

Scanning 179.000 MHz PLC

Scanning 180.000 MHz PLC

Scanning 181.000 MHz PLC

Scanning 182.000 MHz PLC

Scanning 333.000 MHz PLC/SC-QAM (Scan list #3)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 183.000 MHz PLC

Scanning 184.000 MHz PLC

Scanning 185.000 MHz PLC

Scanning 186.000 MHz PLC

Scanning 187.000 MHz PLC

Scanning 188.000 MHz PLC

Scanning 189.000 MHz PLC

Scanning 190.000 MHz PLC

Scanning 191.000 MHz PLC

Scanning 192.000 MHz PLC

Scanning 193.000 MHz PLC

Scanning 194.000 MHz PLC

Scanning 195.000 MHz PLC

Scanning 196.000 MHz PLC

Scanning 197.000 MHz PLC

Scanning 198.000 MHz PLC

Scanning 199.000 MHz PLC

Scanning 200.000 MHz PLC

Scanning 201.000 MHz PLC

Scanning 202.000 MHz PLC

Scanning 203.000 MHz PLC

Scanning 204.000 MHz PLC

Scanning 205.000 MHz PLC

Scanning 206.000 MHz PLC

Scanning 207.000 MHz PLC

Scanning 208.000 MHz PLC

Scanning 209.000 MHz PLC

Scanning 210.000 MHz PLC

Scanning 477.000 MHz PLC/SC-QAM (Scan list #4)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 211.000 MHz PLC

Scanning 212.000 MHz PLC

Scanning 213.000 MHz PLC

Scanning 214.000 MHz PLC

Scanning 215.000 MHz PLC

Scanning 216.000 MHz PLC

Scanning 217.000 MHz PLC

Scanning 218.000 MHz PLC

Scanning 219.000 MHz PLC

Scanning 220.000 MHz PLC

Scanning 221.000 MHz PLC

Scanning 222.000 MHz PLC

Scanning 223.000 MHz PLC

Scanning 224.000 MHz PLC

Scanning 225.000 MHz PLC

Scanning 226.000 MHz PLC

Scanning 227.000 MHz PLC

Scanning 228.000 MHz PLC

Scanning 229.000 MHz PLC

Scanning 230.000 MHz PLC

Scanning 231.000 MHz PLC

Scanning 232.000 MHz PLC

Scanning 233.000 MHz PLC

Scanning 234.000 MHz PLC

Scanning 235.000 MHz PLC

Scanning 236.000 MHz PLC

Scanning 237.000 MHz PLC

Scanning 238.000 MHz PLC

Scanning 429.000 MHz PLC/SC-QAM (Scan list #5)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 239.000 MHz PLC

Scanning 240.000 MHz PLC

Scanning 241.000 MHz PLC

Scanning 242.000 MHz PLC

Scanning 243.000 MHz PLC

Scanning 244.000 MHz PLC

Scanning 245.000 MHz PLC

Scanning 246.000 MHz PLC

Scanning 247.000 MHz PLC

Scanning 248.000 MHz PLC

Scanning 249.000 MHz PLC

Scanning 250.000 MHz PLC

Scanning 251.000 MHz PLC

Scanning 252.000 MHz PLC

Scanning 253.000 MHz PLC

Scanning 254.000 MHz PLC

Scanning 255.000 MHz PLC

Scanning 256.000 MHz PLC

Scanning 257.000 MHz PLC

Scanning 258.000 MHz PLC

Scanning 259.000 MHz PLC

Scanning 260.000 MHz PLC

Scanning 261.000 MHz PLC

Scanning 262.000 MHz PLC

Scanning 263.000 MHz PLC

Scanning 264.000 MHz PLC

Scanning 265.000 MHz PLC

Scanning 266.000 MHz PLC

Scanning 1050.000 MHz PLC/SC-QAM (Scan list #6)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 267.000 MHz PLC

Scanning 268.000 MHz PLC

Scanning 269.000 MHz PLC

Scanning 270.000 MHz PLC

Scanning 271.000 MHz PLC

Scanning 272.000 MHz PLC

Scanning 273.000 MHz PLC

Scanning 274.000 MHz PLC

Scanning 275.000 MHz PLC

Scanning 276.000 MHz PLC

Scanning 277.000 MHz PLC

Scanning 278.000 MHz PLC

Scanning 279.000 MHz PLC

Scanning 280.000 MHz PLC

Scanning 281.000 MHz PLC

Scanning 282.000 MHz PLC

Scanning 283.000 MHz PLC

Scanning 284.000 MHz PLC

Scanning 285.000 MHz PLC

Scanning 286.000 MHz PLC

Scanning 287.000 MHz PLC

Scanning 288.000 MHz PLC

Scanning 289.000 MHz PLC

Scanning 290.000 MHz PLC

Scanning 291.000 MHz PLC

Scanning 292.000 MHz PLC

Scanning 293.000 MHz PLC

Scanning 294.000 MHz PLC

Scanning 999.000 MHz PLC/SC-QAM (Scan list #7)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 295.000 MHz PLC

Scanning 296.000 MHz PLC

Scanning 297.000 MHz PLC

Scanning 298.000 MHz PLC

Scanning 299.000 MHz PLC

Scanning 300.000 MHz PLC

Scanning 301.000 MHz PLC

Scanning 302.000 MHz PLC

Scanning 303.000 MHz PLC

Scanning 304.000 MHz PLC

Scanning 305.000 MHz PLC

Scanning 306.000 MHz PLC

Scanning 307.000 MHz PLC

Scanning 308.000 MHz PLC

Scanning 309.000 MHz PLC

Scanning 310.000 MHz PLC

Scanning 311.000 MHz PLC

Scanning 312.000 MHz PLC

Scanning 313.000 MHz PLC

Scanning 314.000 MHz PLC

Scanning 315.000 MHz PLC

Scanning 316.000 MHz PLC

Scanning 317.000 MHz PLC

Scanning 318.000 MHz PLC

Scanning 319.000 MHz PLC

Scanning 320.000 MHz PLC

Scanning 321.000 MHz PLC

Scanning 322.000 MHz PLC

Scanning 975.000 MHz PLC/SC-QAM (Scan list #8)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 323.000 MHz PLC

Scanning 324.000 MHz PLC

Scanning 325.000 MHz PLC

Scanning 326.000 MHz PLC

Scanning 327.000 MHz PLC

Scanning 328.000 MHz PLC

Scanning 329.000 MHz PLC

Scanning 330.000 MHz PLC

Scanning 331.000 MHz PLC

Scanning 332.000 MHz PLC

Scanning 333.000 MHz PLC

Scanning 334.000 MHz PLC

Scanning 335.000 MHz PLC

Scanning 336.000 MHz PLC

Scanning 337.000 MHz PLC

Scanning 338.000 MHz PLC

Scanning 339.000 MHz PLC

Scanning 340.000 MHz PLC

Scanning 341.000 MHz PLC

Scanning 342.000 MHz PLC

Scanning 343.000 MHz PLC

Scanning 344.000 MHz PLC

Scanning 345.000 MHz PLC

Scanning 346.000 MHz PLC

Scanning 347.000 MHz PLC

Scanning 348.000 MHz PLC

Scanning 349.000 MHz PLC

Scanning 350.000 MHz PLC

Scanning 951.000 MHz PLC/SC-QAM (Scan list #9)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 351.000 MHz PLC

Scanning 352.000 MHz PLC

Scanning 353.000 MHz PLC

Scanning 354.000 MHz PLC

Scanning 355.000 MHz PLC

Scanning 356.000 MHz PLC

Scanning 357.000 MHz PLC

Scanning 358.000 MHz PLC

Scanning 359.000 MHz PLC

Scanning 360.000 MHz PLC

Scanning 361.000 MHz PLC

Scanning 362.000 MHz PLC

Scanning 363.000 MHz PLC

Scanning 364.000 MHz PLC

Scanning 365.000 MHz PLC

Scanning 366.000 MHz PLC

Scanning 367.000 MHz PLC

Scanning 368.000 MHz PLC

Scanning 369.000 MHz PLC

Scanning 370.000 MHz PLC

Scanning 371.000 MHz PLC

Scanning 372.000 MHz PLC

Scanning 373.000 MHz PLC

Scanning 374.000 MHz PLC

Scanning 375.000 MHz PLC

Scanning 376.000 MHz PLC

Scanning 377.000 MHz PLC

Scanning 378.000 MHz PLC

Scanning 927.000 MHz PLC/SC-QAM (Scan list #10)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 379.000 MHz PLC

Scanning 380.000 MHz PLC

Scanning 381.000 MHz PLC

Scanning 382.000 MHz PLC

Scanning 383.000 MHz PLC

Scanning 384.000 MHz PLC

Scanning 385.000 MHz PLC

Scanning 386.000 MHz PLC

Scanning 387.000 MHz PLC

Scanning 388.000 MHz PLC

Scanning 389.000 MHz PLC

Scanning 390.000 MHz PLC

Scanning 391.000 MHz PLC

Scanning 392.000 MHz PLC

Scanning 393.000 MHz PLC

Scanning 394.000 MHz PLC

Scanning 395.000 MHz PLC

Scanning 396.000 MHz PLC

Scanning 397.000 MHz PLC

Scanning 398.000 MHz PLC

Scanning 399.000 MHz PLC

Scanning 400.000 MHz PLC

Scanning 401.000 MHz PLC

Scanning 402.000 MHz PLC

Scanning 403.000 MHz PLC

Scanning 404.000 MHz PLC

Scanning 405.000 MHz PLC

Scanning 406.000 MHz PLC

Scanning 903.000 MHz PLC/SC-QAM (Scan list #11)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 407.000 MHz PLC

Scanning 408.000 MHz PLC

Scanning 409.000 MHz PLC

Scanning 410.000 MHz PLC

Scanning 411.000 MHz PLC

Scanning 412.000 MHz PLC

Scanning 413.000 MHz PLC

Scanning 414.000 MHz PLC

Scanning 415.000 MHz PLC

Scanning 416.000 MHz PLC

Scanning 417.000 MHz PLC

Scanning 418.000 MHz PLC

Scanning 419.000 MHz PLC

Scanning 420.000 MHz PLC

Scanning 421.000 MHz PLC

Scanning 422.000 MHz PLC

Scanning 423.000 MHz PLC

Scanning 424.000 MHz PLC

Scanning 425.000 MHz PLC

Scanning 426.000 MHz PLC

Scanning 427.000 MHz PLC

Scanning 428.000 MHz PLC

Scanning 429.000 MHz PLC

Scanning 430.000 MHz PLC

Scanning 431.000 MHz PLC

Scanning 432.000 MHz PLC

Scanning 433.000 MHz PLC

Scanning 434.000 MHz PLC

Scanning 879.000 MHz PLC/SC-QAM (Scan list #12)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 435.000 MHz PLC

Scanning 436.000 MHz PLC

Scanning 437.000 MHz PLC

Scanning 438.000 MHz PLC

Scanning 439.000 MHz PLC

Scanning 440.000 MHz PLC

Scanning 441.000 MHz PLC

Scanning 442.000 MHz PLC

Scanning 443.000 MHz PLC

Scanning 444.000 MHz PLC

Scanning 445.000 MHz PLC

Scanning 446.000 MHz PLC

Scanning 447.000 MHz PLC

Scanning 448.000 MHz PLC

Scanning 449.000 MHz PLC

Scanning 450.000 MHz PLC

Scanning 451.000 MHz PLC

Scanning 452.000 MHz PLC

Scanning 453.000 MHz PLC

Scanning 454.000 MHz PLC

Scanning 455.000 MHz PLC

Scanning 456.000 MHz PLC

Scanning 457.000 MHz PLC

Scanning 458.000 MHz PLC

Scanning 459.000 MHz PLC

Scanning 460.000 MHz PLC

Scanning 461.000 MHz PLC

Scanning 462.000 MHz PLC

Scanning 855.000 MHz PLC/SC-QAM (Scan list #13)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 463.000 MHz PLC

Scanning 464.000 MHz PLC

Scanning 465.000 MHz PLC

Scanning 466.000 MHz PLC

Scanning 467.000 MHz PLC

Scanning 468.000 MHz PLC

Scanning 469.000 MHz PLC

Scanning 470.000 MHz PLC

Scanning 471.000 MHz PLC

Scanning 472.000 MHz PLC

Scanning 473.000 MHz PLC

Scanning 474.000 MHz PLC

Scanning 475.000 MHz PLC

Scanning 476.000 MHz PLC

Scanning 477.000 MHz PLC

Scanning 478.000 MHz PLC

Scanning 479.000 MHz PLC

Scanning 480.000 MHz PLC

Scanning 481.000 MHz PLC

Scanning 482.000 MHz PLC

Scanning 483.000 MHz PLC

Scanning 484.000 MHz PLC

Scanning 485.000 MHz PLC

Scanning 486.000 MHz PLC

Scanning 487.000 MHz PLC

Scanning 488.000 MHz PLC

Scanning 489.000 MHz PLC

Scanning 490.000 MHz PLC

Scanning 831.000 MHz PLC/SC-QAM (Scan list #14)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 491.000 MHz PLC

Scanning 492.000 MHz PLC

Scanning 493.000 MHz PLC

Scanning 494.000 MHz PLC

Scanning 495.000 MHz PLC

Scanning 496.000 MHz PLC

Scanning 497.000 MHz PLC

Scanning 498.000 MHz PLC

Scanning 499.000 MHz PLC

Scanning 500.000 MHz PLC

Scanning 501.000 MHz PLC

Scanning 502.000 MHz PLC

Scanning 503.000 MHz PLC

Scanning 504.000 MHz PLC

Scanning 505.000 MHz PLC

Scanning 506.000 MHz PLC

Scanning 507.000 MHz PLC

Scanning 508.000 MHz PLC

Scanning 509.000 MHz PLC

Scanning 510.000 MHz PLC

Scanning 511.000 MHz PLC

Scanning 512.000 MHz PLC

Scanning 513.000 MHz PLC

Scanning 514.000 MHz PLC

Scanning 515.000 MHz PLC

Scanning 516.000 MHz PLC

Scanning 517.000 MHz PLC

Scanning 518.000 MHz PLC

Scanning 812.000 MHz PLC/SC-QAM (Scan list #15)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 519.000 MHz PLC

Scanning 520.000 MHz PLC

Scanning 521.000 MHz PLC

Scanning 522.000 MHz PLC

Scanning 523.000 MHz PLC

Scanning 524.000 MHz PLC

Scanning 525.000 MHz PLC

Scanning 526.000 MHz PLC

Scanning 527.000 MHz PLC

Scanning 528.000 MHz PLC

Scanning 529.000 MHz PLC

Scanning 530.000 MHz PLC

Scanning 531.000 MHz PLC

Scanning 532.000 MHz PLC

Scanning 533.000 MHz PLC

Scanning 534.000 MHz PLC

Scanning 535.000 MHz PLC

Scanning 536.000 MHz PLC

Scanning 537.000 MHz PLC

Scanning 538.000 MHz PLC

Scanning 539.000 MHz PLC

Scanning 540.000 MHz PLC

Scanning 541.000 MHz PLC

Scanning 542.000 MHz PLC

Scanning 543.000 MHz PLC

Scanning 544.000 MHz PLC

Scanning 545.000 MHz PLC

Scanning 546.000 MHz PLC

Scanning 282.000 MHz PLC/SC-QAM (Scan list #16)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 547.000 MHz PLC

Scanning 548.000 MHz PLC

Scanning 549.000 MHz PLC

Scanning 550.000 MHz PLC

Scanning 551.000 MHz PLC

Scanning 552.000 MHz PLC

Scanning 553.000 MHz PLC

Scanning 554.000 MHz PLC

Scanning 555.000 MHz PLC

Scanning 556.000 MHz PLC

Scanning 557.000 MHz PLC

Scanning 558.000 MHz PLC

Scanning 559.000 MHz PLC

Scanning 560.000 MHz PLC

Scanning 561.000 MHz PLC

Scanning 562.000 MHz PLC

Scanning 563.000 MHz PLC

Scanning 564.000 MHz PLC

Scanning 565.000 MHz PLC

Scanning 566.000 MHz PLC

Scanning 567.000 MHz PLC

Scanning 568.000 MHz PLC

Scanning 569.000 MHz PLC

Scanning 570.000 MHz PLC

Scanning 571.000 MHz PLC

Scanning 572.000 MHz PLC

Scanning 573.000 MHz PLC

Scanning 574.000 MHz PLC

Scanning 516.000 MHz PLC/SC-QAM (Scan list #17)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 575.000 MHz PLC

Scanning 576.000 MHz PLC

Scanning 577.000 MHz PLC

Scanning 578.000 MHz PLC

Scanning 579.000 MHz PLC

Scanning 580.000 MHz PLC

Scanning 581.000 MHz PLC

Scanning 582.000 MHz PLC

Scanning 583.000 MHz PLC

Scanning 584.000 MHz PLC

Scanning 585.000 MHz PLC

Scanning 586.000 MHz PLC

Scanning 587.000 MHz PLC

Scanning 588.000 MHz PLC

Scanning 589.000 MHz PLC

Scanning 590.000 MHz PLC

Scanning 591.000 MHz PLC

Scanning 592.000 MHz PLC

Scanning 593.000 MHz PLC

Scanning 594.000 MHz PLC

Scanning 595.000 MHz PLC

Scanning 596.000 MHz PLC

Scanning 597.000 MHz PLC

Scanning 598.000 MHz PLC

Scanning 599.000 MHz PLC

Scanning 600.000 MHz PLC

Scanning 601.000 MHz PLC

Scanning 602.000 MHz PLC

Scanning 522.000 MHz PLC/SC-QAM (Scan list #18)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 603.000 MHz PLC

Scanning 604.000 MHz PLC

Scanning 605.000 MHz PLC

Scanning 606.000 MHz PLC

Scanning 607.000 MHz PLC

Scanning 608.000 MHz PLC

Scanning 609.000 MHz PLC

Scanning 610.000 MHz PLC

Scanning 611.000 MHz PLC

Scanning 612.000 MHz PLC

Scanning 613.000 MHz PLC

Scanning 614.000 MHz PLC

Scanning 615.000 MHz PLC

Scanning 616.000 MHz PLC

Scanning 617.000 MHz PLC

Scanning 618.000 MHz PLC

Scanning 619.000 MHz PLC

Scanning 620.000 MHz PLC

Scanning 621.000 MHz PLC

Scanning 622.000 MHz PLC

Scanning 623.000 MHz PLC

Scanning 624.000 MHz PLC

Scanning 625.000 MHz PLC

Scanning 626.000 MHz PLC

Scanning 627.000 MHz PLC

Scanning 628.000 MHz PLC

Scanning 629.000 MHz PLC

Scanning 630.000 MHz PLC

Scanning 528.000 MHz PLC/SC-QAM (Scan list #19)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 631.000 MHz PLC

Scanning 632.000 MHz PLC

Scanning 633.000 MHz PLC

Scanning 634.000 MHz PLC

Scanning 635.000 MHz PLC

Scanning 636.000 MHz PLC

Scanning 637.000 MHz PLC

Scanning 638.000 MHz PLC

Scanning 639.000 MHz PLC

Scanning 640.000 MHz PLC

Scanning 641.000 MHz PLC

Scanning 642.000 MHz PLC

Scanning 643.000 MHz PLC

Scanning 644.000 MHz PLC

Scanning 645.000 MHz PLC

Scanning 646.000 MHz PLC

Scanning 647.000 MHz PLC

Scanning 648.000 MHz PLC

Scanning 649.000 MHz PLC

Scanning 650.000 MHz PLC

Scanning 651.000 MHz PLC

Scanning 652.000 MHz PLC

Scanning 653.000 MHz PLC

Scanning 654.000 MHz PLC

Scanning 655.000 MHz PLC

Scanning 656.000 MHz PLC

Scanning 657.000 MHz PLC

Scanning 658.000 MHz PLC

Scanning 534.000 MHz PLC/SC-QAM (Scan list #20)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 659.000 MHz PLC

Scanning 660.000 MHz PLC

Scanning 661.000 MHz PLC

Scanning 662.000 MHz PLC

Scanning 663.000 MHz PLC

Scanning 664.000 MHz PLC

Scanning 665.000 MHz PLC

Scanning 666.000 MHz PLC

Scanning 667.000 MHz PLC

Scanning 668.000 MHz PLC

Scanning 669.000 MHz PLC

Scanning 670.000 MHz PLC

Scanning 671.000 MHz PLC

Scanning 672.000 MHz PLC

Scanning 673.000 MHz PLC

Scanning 674.000 MHz PLC

Scanning 675.000 MHz PLC

Scanning 676.000 MHz PLC

Scanning 677.000 MHz PLC

Scanning 678.000 MHz PLC

Scanning 679.000 MHz PLC

Scanning 680.000 MHz PLC

Scanning 681.000 MHz PLC

Scanning 682.000 MHz PLC

Scanning 683.000 MHz PLC

Scanning 684.000 MHz PLC

Scanning 685.000 MHz PLC

Scanning 686.000 MHz PLC

Scanning 540.000 MHz PLC/SC-QAM (Scan list #21)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 687.000 MHz PLC

Scanning 688.000 MHz PLC

Scanning 689.000 MHz PLC

Scanning 690.000 MHz PLC

Scanning 691.000 MHz PLC

Scanning 692.000 MHz PLC

Scanning 693.000 MHz PLC

Scanning 694.000 MHz PLC

Scanning 695.000 MHz PLC

Scanning 696.000 MHz PLC

Scanning 697.000 MHz PLC

Scanning 698.000 MHz PLC

Scanning 699.000 MHz PLC

Scanning 700.000 MHz PLC

Scanning 701.000 MHz PLC

Scanning 702.000 MHz PLC

Scanning 703.000 MHz PLC

Scanning 704.000 MHz PLC

Scanning 705.000 MHz PLC

Scanning 706.000 MHz PLC

Scanning 707.000 MHz PLC

Scanning 708.000 MHz PLC

Scanning 709.000 MHz PLC

Scanning 710.000 MHz PLC

Scanning 711.000 MHz PLC

Scanning 712.000 MHz PLC

Scanning 713.000 MHz PLC

Scanning 714.000 MHz PLC

Scanning 546.000 MHz PLC/SC-QAM (Scan list #22)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 715.000 MHz PLC

Scanning 716.000 MHz PLC

Scanning 717.000 MHz PLC

Scanning 718.000 MHz PLC

Scanning 719.000 MHz PLC

Scanning 720.000 MHz PLC

Scanning 721.000 MHz PLC

Scanning 722.000 MHz PLC

Scanning 723.000 MHz PLC

Scanning 724.000 MHz PLC

Scanning 725.000 MHz PLC

Scanning 726.000 MHz PLC

Scanning 727.000 MHz PLC

Scanning 728.000 MHz PLC

Scanning 729.000 MHz PLC

Scanning 730.000 MHz PLC

Scanning 731.000 MHz PLC

Scanning 732.000 MHz PLC

Scanning 733.000 MHz PLC

Scanning 734.000 MHz PLC

Scanning 735.000 MHz PLC

Scanning 736.000 MHz PLC

Scanning 737.000 MHz PLC

Scanning 738.000 MHz PLC

Scanning 739.000 MHz PLC

Scanning 740.000 MHz PLC

Scanning 741.000 MHz PLC

Scanning 742.000 MHz PLC

Scanning 552.000 MHz PLC/SC-QAM (Scan list #23)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 743.000 MHz PLC

Scanning 744.000 MHz PLC

Scanning 745.000 MHz PLC

Scanning 746.000 MHz PLC

Scanning 747.000 MHz PLC

Scanning 748.000 MHz PLC

Scanning 749.000 MHz PLC

Scanning 750.000 MHz PLC

Scanning 751.000 MHz PLC

Scanning 752.000 MHz PLC

Scanning 753.000 MHz PLC

Scanning 754.000 MHz PLC

Scanning 755.000 MHz PLC

Scanning 756.000 MHz PLC

Scanning 757.000 MHz PLC

Scanning 758.000 MHz PLC

Scanning 759.000 MHz PLC

Scanning 760.000 MHz PLC

Scanning 761.000 MHz PLC

Scanning 762.000 MHz PLC

Scanning 763.000 MHz PLC

Scanning 764.000 MHz PLC

Scanning 765.000 MHz PLC

Scanning 766.000 MHz PLC

Scanning 767.000 MHz PLC

Scanning 768.000 MHz PLC

Scanning 769.000 MHz PLC

Scanning 770.000 MHz PLC

Scanning 558.000 MHz PLC/SC-QAM (Scan list #24)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 771.000 MHz PLC

Scanning 772.000 MHz PLC

Scanning 773.000 MHz PLC

Scanning 774.000 MHz PLC

Scanning 775.000 MHz PLC

Scanning 776.000 MHz PLC

Scanning 777.000 MHz PLC

Scanning 778.000 MHz PLC

Scanning 779.000 MHz PLC

Scanning 780.000 MHz PLC

Scanning 781.000 MHz PLC

Scanning 782.000 MHz PLC

Scanning 783.000 MHz PLC

Scanning 784.000 MHz PLC

Scanning 785.000 MHz PLC

Scanning 786.000 MHz PLC

Scanning 787.000 MHz PLC

Scanning 788.000 MHz PLC

Scanning 789.000 MHz PLC

Scanning 790.000 MHz PLC

Scanning 791.000 MHz PLC

Scanning 792.000 MHz PLC

Scanning 793.000 MHz PLC

Scanning 794.000 MHz PLC

Scanning 795.000 MHz PLC

Scanning 796.000 MHz PLC

Scanning 797.000 MHz PLC

Scanning 798.000 MHz PLC

Scanning 564.000 MHz PLC/SC-QAM (Scan list #25)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 799.000 MHz PLC

Scanning 800.000 MHz PLC

Scanning 801.000 MHz PLC

Scanning 802.000 MHz PLC

Scanning 803.000 MHz PLC

Scanning 804.000 MHz PLC

Scanning 999.000 MHz SC-QAM (STD/IRC)

Scanning 993.000 MHz SC-QAM (STD/IRC)

Scanning 987.000 MHz SC-QAM (STD/IRC)

Scanning 981.000 MHz SC-QAM (STD/IRC)

Scanning 975.000 MHz SC-QAM (STD/IRC)

Scanning 969.000 MHz SC-QAM (STD/IRC)

Scanning 963.000 MHz SC-QAM (STD/IRC)

Scanning 957.000 MHz SC-QAM (STD/IRC)

Scanning 951.000 MHz SC-QAM (STD/IRC)

Scanning 945.000 MHz SC-QAM (STD/IRC)

Scanning 939.000 MHz SC-QAM (STD/IRC)

Scanning 933.000 MHz SC-QAM (STD/IRC)

Scanning 927.000 MHz SC-QAM (STD/IRC)

Scanning 921.000 MHz SC-QAM (STD/IRC)

Scanning 915.000 MHz SC-QAM (STD/IRC)

Scanning 909.000 MHz SC-QAM (STD/IRC)

Scanning 903.000 MHz SC-QAM (STD/IRC)

Scanning 897.000 MHz SC-QAM (STD/IRC)

Scanning 891.000 MHz SC-QAM (STD/IRC)

Scanning 885.000 MHz SC-QAM (STD/IRC)

Scanning 879.000 MHz SC-QAM (STD/IRC)

Scanning 873.000 MHz SC-QAM (STD/IRC)

Scanning 570.000 MHz PLC/SC-QAM (Scan list #26)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 867.000 MHz SC-QAM (STD/IRC)

Scanning 861.000 MHz SC-QAM (STD/IRC)

Scanning 855.000 MHz SC-QAM (STD/IRC)

Scanning 849.000 MHz SC-QAM (STD/IRC)

Scanning 843.000 MHz SC-QAM (STD/IRC)

Scanning 837.000 MHz SC-QAM (STD/IRC)

Scanning 831.000 MHz SC-QAM (STD/IRC)

Scanning 825.000 MHz SC-QAM (STD/IRC)

Scanning 819.000 MHz SC-QAM (STD/IRC)

Scanning 813.000 MHz SC-QAM (STD/IRC)

Scanning 807.000 MHz SC-QAM (STD/IRC)

Scanning 801.000 MHz SC-QAM (STD/IRC)

Scanning 795.000 MHz SC-QAM (STD/IRC)

Scanning 789.000 MHz SC-QAM (STD/IRC)

Scanning 783.000 MHz SC-QAM (STD/IRC)

Scanning 777.000 MHz SC-QAM (STD/IRC)

Scanning 771.000 MHz SC-QAM (STD/IRC)

Scanning 765.000 MHz SC-QAM (STD/IRC)

Scanning 759.000 MHz SC-QAM (STD/IRC)

Scanning 753.000 MHz SC-QAM (STD/IRC)

Scanning 747.000 MHz SC-QAM (STD/IRC)

Scanning 741.000 MHz SC-QAM (STD/IRC)

Scanning 735.000 MHz SC-QAM (STD/IRC)

Scanning 729.000 MHz SC-QAM (STD/IRC)

Scanning 723.000 MHz SC-QAM (STD/IRC)

Scanning 717.000 MHz SC-QAM (STD/IRC)

Scanning 711.000 MHz SC-QAM (STD/IRC)

Scanning 705.000 MHz SC-QAM (STD/IRC)

Scanning 576.000 MHz PLC/SC-QAM (Scan list #27)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 699.000 MHz SC-QAM (STD/IRC)

Scanning 693.000 MHz SC-QAM (STD/IRC)

Scanning 687.000 MHz SC-QAM (STD/IRC)

Scanning 681.000 MHz SC-QAM (STD/IRC)

Scanning 675.000 MHz SC-QAM (STD/IRC)

Scanning 669.000 MHz SC-QAM (STD/IRC)

Scanning 663.000 MHz SC-QAM (STD/IRC)

Scanning 657.000 MHz SC-QAM (STD/IRC)

Scanning 651.000 MHz SC-QAM (STD/IRC)

Scanning 645.000 MHz SC-QAM (STD/IRC)

Scanning 639.000 MHz SC-QAM (STD/IRC)

Scanning 633.000 MHz SC-QAM (STD/IRC)

Scanning 627.000 MHz SC-QAM (STD/IRC)

Scanning 621.000 MHz SC-QAM (STD/IRC)

Scanning 615.000 MHz SC-QAM (STD/IRC)

Scanning 609.000 MHz SC-QAM (STD/IRC)

Scanning 603.000 MHz SC-QAM (STD/IRC)

Scanning 597.000 MHz SC-QAM (STD/IRC)

Scanning 591.000 MHz SC-QAM (STD/IRC)

Scanning 585.000 MHz SC-QAM (STD/IRC)

Scanning 579.000 MHz SC-QAM (STD/IRC)

Scanning 573.000 MHz SC-QAM (STD/IRC)

Scanning 567.000 MHz SC-QAM (STD/IRC)

Scanning 561.000 MHz SC-QAM (STD/IRC)

Scanning 555.000 MHz SC-QAM (STD/IRC)

Scanning 549.000 MHz SC-QAM (STD/IRC)

Scanning 543.000 MHz SC-QAM (STD/IRC)

Scanning 537.000 MHz SC-QAM (STD/IRC)

Scanning 582.000 MHz PLC/SC-QAM (Scan list #28)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 531.000 MHz SC-QAM (STD/IRC)

Scanning 525.000 MHz SC-QAM (STD/IRC)

Scanning 519.000 MHz SC-QAM (STD/IRC)

Scanning 513.000 MHz SC-QAM (STD/IRC)

Scanning 507.000 MHz SC-QAM (STD/IRC)

Scanning 501.000 MHz SC-QAM (STD/IRC)

Scanning 495.000 MHz SC-QAM (STD/IRC)

Scanning 489.000 MHz SC-QAM (STD/IRC)

Scanning 483.000 MHz SC-QAM (STD/IRC)

Scanning 477.000 MHz SC-QAM (STD/IRC)

Scanning 471.000 MHz SC-QAM (STD/IRC)

Scanning 465.000 MHz SC-QAM (STD/IRC)

Scanning 459.000 MHz SC-QAM (STD/IRC)

Scanning 453.000 MHz SC-QAM (STD/IRC)

Scanning 447.000 MHz SC-QAM (STD/IRC)

Scanning 441.000 MHz SC-QAM (STD/IRC)

Scanning 435.000 MHz SC-QAM (STD/IRC)

Scanning 429.000 MHz SC-QAM (STD/IRC)

Scanning 423.000 MHz SC-QAM (STD/IRC)

Scanning 417.000 MHz SC-QAM (STD/IRC)

Scanning 411.000 MHz SC-QAM (STD/IRC)

Scanning 405.000 MHz SC-QAM (STD/IRC)

Scanning 399.000 MHz SC-QAM (STD/IRC)

Scanning 393.000 MHz SC-QAM (STD/IRC)

Scanning 387.000 MHz SC-QAM (STD/IRC)

Scanning 381.000 MHz SC-QAM (STD/IRC)

Scanning 375.000 MHz SC-QAM (STD/IRC)

Scanning 369.000 MHz SC-QAM (STD/IRC)

Scanning 588.000 MHz PLC/SC-QAM (Scan list #29)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 363.000 MHz SC-QAM (STD/IRC)

Scanning 357.000 MHz SC-QAM (STD/IRC)

Scanning 351.000 MHz SC-QAM (STD/IRC)

Scanning 345.000 MHz SC-QAM (STD/IRC)

Scanning 339.000 MHz SC-QAM (STD/IRC)

Scanning 333.000 MHz SC-QAM (STD/IRC)

Scanning 327.000 MHz SC-QAM (STD/IRC)

Scanning 321.000 MHz SC-QAM (STD/IRC)

Scanning 315.000 MHz SC-QAM (STD/IRC)

Scanning 309.000 MHz SC-QAM (STD/IRC)

Scanning 303.000 MHz SC-QAM (STD/IRC)

Scanning 297.000 MHz SC-QAM (STD/IRC)

Scanning 291.000 MHz SC-QAM (STD/IRC)

Scanning 285.000 MHz SC-QAM (STD/IRC)

Scanning 279.000 MHz SC-QAM (STD/IRC)

Scanning 273.000 MHz SC-QAM (STD/IRC)

Scanning 267.000 MHz SC-QAM (STD/IRC)

Scanning 261.000 MHz SC-QAM (STD/IRC)

Scanning 255.000 MHz SC-QAM (STD/IRC)

Scanning 249.000 MHz SC-QAM (STD/IRC)

Scanning 243.000 MHz SC-QAM (STD/IRC)

Scanning 237.000 MHz SC-QAM (STD/IRC)

Scanning 231.000 MHz SC-QAM (STD/IRC)

Scanning 225.000 MHz SC-QAM (STD/IRC)

Scanning 219.000 MHz SC-QAM (STD/IRC)

Scanning 213.000 MHz SC-QAM (STD/IRC)

Scanning 207.000 MHz SC-QAM (STD/IRC)

Scanning 201.000 MHz SC-QAM (STD/IRC)

Scanning 594.000 MHz PLC/SC-QAM (Scan list #30)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 195.000 MHz SC-QAM (STD/IRC)

Scanning 189.000 MHz SC-QAM (STD/IRC)

Scanning 183.000 MHz SC-QAM (STD/IRC)

Scanning 177.000 MHz SC-QAM (STD/IRC)

Scanning 171.000 MHz SC-QAM (STD/IRC)

Scanning 165.000 MHz SC-QAM (STD/IRC)

Scanning 159.000 MHz SC-QAM (STD/IRC)

Scanning 153.000 MHz SC-QAM (STD/IRC)

Scanning 147.000 MHz SC-QAM (STD/IRC)

Scanning 141.000 MHz SC-QAM (STD/IRC)

Scanning 135.000 MHz SC-QAM (STD/IRC)

Scanning 129.000 MHz SC-QAM (STD/IRC)

Scanning 123.000 MHz SC-QAM (STD/IRC)

Scanning 117.000 MHz SC-QAM (STD/IRC)

Scanning 111.000 MHz SC-QAM (STD/IRC)

Scanning 997.750 MHz SC-QAM (HRC)

Scanning 991.750 MHz SC-QAM (HRC)

Scanning 985.750 MHz SC-QAM (HRC)

Scanning 979.750 MHz SC-QAM (HRC)

Scanning 973.750 MHz SC-QAM (HRC)

Scanning 967.750 MHz SC-QAM (HRC)

Scanning 961.750 MHz SC-QAM (HRC)

Scanning 955.750 MHz SC-QAM (HRC)

Scanning 949.750 MHz SC-QAM (HRC)

Scanning 943.750 MHz SC-QAM (HRC)

Scanning 937.750 MHz SC-QAM (HRC)

Scanning 931.750 MHz SC-QAM (HRC)

Scanning 925.750 MHz SC-QAM (HRC)

Scanning 600.000 MHz PLC/SC-QAM (Scan list #31)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 919.750 MHz SC-QAM (HRC)

Scanning 913.750 MHz SC-QAM (HRC)

Scanning 907.750 MHz SC-QAM (HRC)

Scanning 901.750 MHz SC-QAM (HRC)

Scanning 895.750 MHz SC-QAM (HRC)

Scanning 889.750 MHz SC-QAM (HRC)

Scanning 883.750 MHz SC-QAM (HRC)

Scanning 877.750 MHz SC-QAM (HRC)

Scanning 871.750 MHz SC-QAM (HRC)

Scanning 865.750 MHz SC-QAM (HRC)

Scanning 859.750 MHz SC-QAM (HRC)

Scanning 853.750 MHz SC-QAM (HRC)

Scanning 847.750 MHz SC-QAM (HRC)

Scanning 841.750 MHz SC-QAM (HRC)

Scanning 835.750 MHz SC-QAM (HRC)

Scanning 829.750 MHz SC-QAM (HRC)

Scanning 823.750 MHz SC-QAM (HRC)

Scanning 817.750 MHz SC-QAM (HRC)

Scanning 811.750 MHz SC-QAM (HRC)

Scanning 805.750 MHz SC-QAM (HRC)

Scanning 799.750 MHz SC-QAM (HRC)

Scanning 793.750 MHz SC-QAM (HRC)

Scanning 787.750 MHz SC-QAM (HRC)

Scanning 781.750 MHz SC-QAM (HRC)

Scanning 775.750 MHz SC-QAM (HRC)

Scanning 769.750 MHz SC-QAM (HRC)

Scanning 763.750 MHz SC-QAM (HRC)

Scanning 757.750 MHz SC-QAM (HRC)

Scanning 606.000 MHz PLC/SC-QAM (Scan list #32)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 751.750 MHz SC-QAM (HRC)

Scanning 745.750 MHz SC-QAM (HRC)

Scanning 739.750 MHz SC-QAM (HRC)

Scanning 733.750 MHz SC-QAM (HRC)

Scanning 727.750 MHz SC-QAM (HRC)

Scanning 721.750 MHz SC-QAM (HRC)

Scanning 715.750 MHz SC-QAM (HRC)

Scanning 709.750 MHz SC-QAM (HRC)

Scanning 703.750 MHz SC-QAM (HRC)

Scanning 697.750 MHz SC-QAM (HRC)

Scanning 691.750 MHz SC-QAM (HRC)

Scanning 685.750 MHz SC-QAM (HRC)

Scanning 679.750 MHz SC-QAM (HRC)

Scanning 673.750 MHz SC-QAM (HRC)

Scanning 667.750 MHz SC-QAM (HRC)

Scanning 661.750 MHz SC-QAM (HRC)

Scanning 655.750 MHz SC-QAM (HRC)

Scanning 649.750 MHz SC-QAM (HRC)

Scanning 643.750 MHz SC-QAM (HRC)

Scanning 637.750 MHz SC-QAM (HRC)

Scanning 631.750 MHz SC-QAM (HRC)

Scanning 625.750 MHz SC-QAM (HRC)

Scanning 619.750 MHz SC-QAM (HRC)

Scanning 613.750 MHz SC-QAM (HRC)

Scanning 607.750 MHz SC-QAM (HRC)

Scanning 601.750 MHz SC-QAM (HRC)

Scanning 595.750 MHz SC-QAM (HRC)

Scanning 589.750 MHz SC-QAM (HRC)

Scanning 612.000 MHz PLC/SC-QAM (Scan list #33)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 583.750 MHz SC-QAM (HRC)

Scanning 577.750 MHz SC-QAM (HRC)

Scanning 571.750 MHz SC-QAM (HRC)

Scanning 565.750 MHz SC-QAM (HRC)

Scanning 559.750 MHz SC-QAM (HRC)

Scanning 553.750 MHz SC-QAM (HRC)

Scanning 547.750 MHz SC-QAM (HRC)

Scanning 541.750 MHz SC-QAM (HRC)

Scanning 535.750 MHz SC-QAM (HRC)

Scanning 529.750 MHz SC-QAM (HRC)

Scanning 523.750 MHz SC-QAM (HRC)

Scanning 517.750 MHz SC-QAM (HRC)

Scanning 511.750 MHz SC-QAM (HRC)

Scanning 505.750 MHz SC-QAM (HRC)

Scanning 499.750 MHz SC-QAM (HRC)

Scanning 493.750 MHz SC-QAM (HRC)

Scanning 487.750 MHz SC-QAM (HRC)

Scanning 481.750 MHz SC-QAM (HRC)

Scanning 475.750 MHz SC-QAM (HRC)

Scanning 469.750 MHz SC-QAM (HRC)

Scanning 463.750 MHz SC-QAM (HRC)

Scanning 457.750 MHz SC-QAM (HRC)

Scanning 451.750 MHz SC-QAM (HRC)

Scanning 445.750 MHz SC-QAM (HRC)

Scanning 439.750 MHz SC-QAM (HRC)

Scanning 433.750 MHz SC-QAM (HRC)

Scanning 427.750 MHz SC-QAM (HRC)

Scanning 421.750 MHz SC-QAM (HRC)

Scanning 381.000 MHz PLC/SC-QAM (Scan list #0)

Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

Scanning 415.750 MHz SC-QAM (HRC)

Scanning 409.750 MHz SC-QAM (HRC)

Scanning 403.750 MHz SC-QAM (HRC)

Scanning 397.750 MHz SC-QAM (HRC)

Scanning 391.750 MHz SC-QAM (HRC)

Scanning 385.750 MHz SC-QAM (HRC)

Scanning 379.750 MHz SC-QAM (HRC)

Scanning 373.750 MHz SC-QAM (HRC)

Scanning 367.750 MHz SC-QAM (HRC)

Scanning 361.750 MHz SC-QAM (HRC)

Scanning 355.750 MHz SC-QAM (HRC)

Scanning 349.750 MHz SC-QAM (HRC)

Scanning 343.750 MHz SC-QAM (HRC)

Scanning 337.750 MHz SC-QAM (HRC)

Scanning 331.750 MHz SC-QAM (HRC)

Scanning 325.750 MHz SC-QAM (HRC)

Scanning 319.750 MHz SC-QAM (HRC)

Scanning 313.750 MHz SC-QAM (HRC)

Scanning 307.750 MHz SC-QAM (HRC)

Scanning 301.750 MHz SC-QAM (HRC)

Scanning 295.750 MHz SC-QAM (HRC)

Scanning 289.750 MHz SC-QAM (HRC)

Scanning 283.750 MHz SC-QAM (HRC)

Scanning 277.750 MHz SC-QAM (HRC)

Scanning 271.750 MHz SC-QAM (HRC)

Scanning 265.750 MHz SC-QAM (HRC)

Scanning 259.750 MHz SC-QAM (HRC)

Scanning 253.750 MHz SC-QAM (HRC)

Scanning 247.750 MHz SC-QAM (HRC)

Scanning 241.750 MHz SC-QAM (HRC)

Scanning 235.750 MHz SC-QAM (HRC)

Scanning 229.750 MHz SC-QAM (HRC)

Scanning 223.750 MHz SC-QAM (HRC)

Scanning 217.750 MHz SC-QAM (HRC)

Scanning 211.750 MHz SC-QAM (HRC)

Scanning 205.750 MHz SC-QAM (HRC)

Scanning 199.750 MHz SC-QAM (HRC)

Scanning 193.750 MHz SC-QAM (HRC)

Scanning 187.750 MHz SC-QAM (HRC)

Scanning 181.750 MHz SC-QAM (HRC)

Scanning 175.750 MHz SC-QAM (HRC)

Scanning 169.750 MHz SC-QAM (HRC)

Scanning 163.750 MHz SC-QAM (HRC)

Scanning 157.750 MHz SC-QAM (HRC)

Scanning 151.750 MHz SC-QAM (HRC)

Scanning 145.750 MHz SC-QAM (HRC)

Scanning 139.750 MHz SC-QAM (HRC)

Scanning 133.750 MHz SC-QAM (HRC)

Scanning 127.750 MHz SC-QAM (HRC)

Scanning 121.750 MHz SC-QAM (HRC)

Scanning 115.750 MHz SC-QAM (HRC)

Scanning 109.750 MHz SC-QAM (HRC)

[00:09:28 01/01/1970] [CmDocsisCtlThread] BcmCmDocsisCtlThread::ScanNextQd: Scanning algorithm has been 'round the horn' 3 times.

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

Publishing 'cable cut' event.

mtaCmStatusInfo(kCmStat_DsEnergyAbsent)

00:09:29.120 01/01/1970 [CmDocsisCtlThread] (CALC) mtaCmStatusInfo() - MTA is Signaled: ENERGY_ABSENT (Stat=0x4) emtaCurState = 0.

[00:09:29 01/01/1970] [PowerMgmt] Setting networked standby context to 'cable cut'

[00:09:29 01/01/1970] [PowerMgmt] SetStateImpl: thread state now in transition: full -> networked standby

[00:09:29 01/01/1970] [PowerMgmt] CmDocsisCtlThread power management client transitioning from full power -> networked standby

[00:09:29 01/01/1970] [PowerMgmt] Cable cut detected, entering RF disconnect mode.

[00:09:29 01/01/1970] [PowerMgmt] Will check for reconnect in 10 seconds.

[00:09:29 01/01/1970] [PowerMgmt] Notifying RG of networked standby.

[00:09:29 01/01/1970] [PowerMgmt] ClientStateTransitionCompleted: thread state now networked standby

Sending cm_power_op 2 to eRouter

CM> Scanning 381.000 MHz PLC/SC-QAM (Non-vol happy-home)

[00:09:29 01/01/1970] [CmDocsisCtlThread] BcmCmDocsisCtlThread::SyncStop: [00:09:29 01/01/1970] [CmDocsisCtlThread] BcmCmDocsisCtlThread::Reset: DefaultSnmpAgentClass::RestartPendingEvent for Vendor CM Agent w/ BRCM Factory Support

Vendor CM Agent w/ BRCM Factory Support updating ifTableLastChange.

Vendor CM Agent w/ BRCM Factory Support resetting to default state.

Vendor CM Agent w/ BRCM Factory Support destroying users...

Vendor CM Agent w/ BRCM Factory Support destroying notifies...

Vendor CM Agent w/ BRCM Factory Support destroying views...

AgentCleanupViews for IP stack 1

gfap_llc_fltr_add (unmatched), idx: 0

gfap_ip_fltr_add (default), idx: 0

Allowing DOCS-CABLE-DEVICE-MIB IP filters.

Vendor CM Agent w/ BRCM Factory Support deferring traps.

00:09:29.540 01/01/1970 [CmDocsisCtlThread] (CALC) mtaCmStatusInfo() - MTA is Signaled: NOT-OPERATIONAL (Stat=0x1) emtaCurState = 0.

EmtaSnmpAgent::SoftReset

Pausing trap thread

emta factory agentResetting to default state.

emta factory agent destroying users...

emta factory agent destroying notifies...

emta factory agent destroying views...

AgentCleanupViews for IP stack 6

emta factory agent entering RFC-2576 Coexistence security mode.

emta factory agent entering Basic/Hybrid flow provisioning mode.

Resuming trap thread

Stopping DHCP/ToD/TFTP (client requested)...

[00:09:29 01/01/1970] [CmDocsisIpThread] BcmEcosIpHalIf::RemoveIpv6Address: (IP Stack1 HalIf) ERROR - Failed to remove IPv6 address fe80::5e22:daff:fe1b:663/64 from the stack!

[00:09:29 01/01/1970] [CmDocsisIpThread] BcmDhcpV6ClientIf::ReleaseAddresses: (DHCPv6 ClientIf for IP Stack1) ERROR - IA state is initial; there is no address to release.

BcmDocsis3DsMacEnableMulticastDsidForwarding 0; primary DS = 0

SCQAM DSID filter control = 0x00

OFDM DSID filter control = 0x01

CamInit: Qam Activity Clock Gating REG (addr=0xde3033f0) = 0x00

CamInit: restoring Reg to 0x8f

CamInit: Ofdm Activity Clock Gating REG (addr=0xde323468) = 0x00

CamInit: restoring Reg to 0x9f

Deleting DOCSIS 1.0 CoS Settings for SID 0

[00:09:29 01/01/1970] [CmDocsisCtlThread] BcmDocsisCmHalIf::DeleteAllServiceFlows: (DOCSIS CableModem HalIf) Deleting all Upstream and Downstream Service Flows, along with associated Classifiers and PHS rules...

[00:09:29 01/01/1970] [CmDocsisCtlThread] BcmCmDocsisCtlThread::ResetRngState:

[00:09:29 01/01/1970] [CmDocsisCtlThread] BcmDocsisCmHalIf::SetPrimarySid: (DOCSIS CableModem HalIf) Setting the Primary SID for usHwChannel 0 to 0

[00:09:29 01/01/1970] [CmDocsisCtlThread] BcmEcosTimer::Stop: (TmNextRbaInstall) ERROR - Calling thread does not own the timer! One thread can't stop another thread's timers!

Updating US chan 8 data Profile test msg for Sid: 0x0.

Updating US chan 9 data Profile test msg for Sid: 0x0.

Updating US chan 10 data Profile test msg for Sid: 0x0.

Sounding SID for Fdx channel 0 to 0x0

Updating US chan 11 data Profile test msg for Sid: 0x0.

Sounding SID for Fdx channel 1 to 0x0

Updating US chan 12 data Profile test msg for Sid: 0x0.

Sounding SID for Fdx channel 2 to 0x0

Updating US chan 13 data Profile test msg for Sid: 0x0.

Sounding SID for Fdx channel 3 to 0x0

Updating US chan 14 data Profile test msg for Sid: 0x0.

Sounding SID for Fdx channel 4 to 0x0

Updating US chan 15 data Profile test msg for Sid: 0x0.

Sounding SID for Fdx channel 5 to 0x0

[00:09:30 01/01/1970] [CmDocsisCtlThread] BcmCmMultiDsHelper::Reset:

rpc_send_request timeout on tunnel 0

Setting proxy timeout to 5000 mSecs

eRouter Linux WAN Down

CM> [00:09:30 01/01/1970] [CmDocsisCtlThread] BcmCmDocsisCtlThread::PriDsLockToRescueCmtsRetryTimerReset:

BcmSetDocsis31CmtsRegistration:Setting Docsis3TransmitMode=false

[00:09:30 01/01/1970] [OfdmStatsMonitorThread] OfdmStatsMonitorThread::OfdmStatsPollStopProcess: (OfdmStatsMonitorThread) OFDMSTATS-MON: stop both sample and summary timers.

[00:09:30 01/01/1970] [CmDocsisCtlThread] BcmCmDocsisCtlThread::Reset: Comcast: activate default diplexer on MAC reset.

[00:09:30 01/01/1970] [CmDocsisCtlThread] BcmDocsisCmDiplexerHelper::Initialize: Initializing diplexer

[00:09:30 01/01/1970] [CmDocsisCtlThread] BcmDocsisCmDiplexerHelper::ActivateDiplexerSettings: 1: US:(5..85 MHz) DS:(108..1794 MHz) (Legacy/Extended) (ACTIVE): MDD

>>CM_HAL_OID_DIPLEXER_ACTIVATE DiplexerId=1<<

FrontEnd_SetGpio_Legacy_Mode - Vendor Control

GPIO90 set output=0 (bit 26, data reg 0xe1215044)

GPIO111 set output=1 (bit 15, data reg 0xe1215064)

GPIO91 set output=1 (bit 27, data reg 0xe1215044)

DsOfdmChMask active bitmask = 0x0000036d

Set WOD0 in Legacy mode!

Set WOD2 in Legacy mode!

Set WOD3 in Legacy mode!

Set WOD5 in Legacy mode!

Set WOD6 in Legacy mode!

Set WOD8 in Legacy mode!

Set WOD9 in Legacy mode!

WodPower[20]=0x82 (WodChPowerUpBitMask[+1/+2/+3]=0x051451)

bhab_SetApDocsisMode: DocsisMode=31(DocsisStd[0x12]=0x81). FEC interrupt disabled to all cores b4 setting...

******************!!!WARNING!!!*************************

!!!This modem is configured to run in Extended D31 mode!!!

********************************************************

BAFE_Set_Diplexer_Mode 1 took (208ms). Gp22=0x00000000

>>CM_HAL_OID_DIPLEXER_FINALIZE DiplexerId=1<<

!!Warning: NumberOfCalPoints truncated to 20 from 25

>>Sending 20 DsCal Offsets to Leap<<

MasterOffset_signedDB256: 0 (8420), ArraySize=20

0)111000000hz Off=691 (256thdBmV)

1)201000000hz Off=230 (256thdBmV)

2)301000000hz Off=204 (256thdBmV)

3)401000000hz Off=204 (256thdBmV)

4)501000000hz Off=307 (256thdBmV)

5)561000000hz Off=307 (256thdBmV)

6)621000000hz Off=256 (256thdBmV)

7)681000000hz Off=256 (256thdBmV)

8)807000000hz Off=307 (256thdBmV)

9)861000000hz Off=409 (256thdBmV)

10)921000000hz Off=332 (256thdBmV)

11)981000000hz Off=332 (256thdBmV)

12)1041000000hz Off=435 (256thdBmV)

13)1101000000hz Off=384 (256thdBmV)

14)1161000000hz Off=435 (256thdBmV)

15)1221000000hz Off=460 (256thdBmV)

16)1281000000hz Off=486 (256thdBmV)

17)1341000000hz Off=460 (256thdBmV)

18)1401000000hz Off=486 (256thdBmV)

19)1461000000hz Off=614 (256thdBmV)

Sending AFE_HAB command Calibration data to Leap for AFE3G Rx Ch...

Sent Cal table with header buf[0-3]=0x0b0d0401 [4]=10

CM> Sending AFE_HAB command Calibration data to Leap for AFE3G Nc Ch...

Sent Cal table with header buf[0-3]=0x0b0d0401 [4]=00

Activated HW diplexer 1: US:(5..85 MHz) DS:(108..1794 MHz) (Legacy/Extended) (ACTIVE)

Switch context = MDD

[00:09:31 01/01/1970] [CmDocsisCtlThread] BcmDocsisCmDiplexerHelper::ActivateDiplexerSettings: Activation complete.

[00:09:31 01/01/1970] [CmDocsisCtlThread] BcmDocsisCmDiplexerHelper::Initialize: Diplexer initialization complete

Scan stopped...

CM> [00:09:39 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:09:39 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:09:39 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:09:39 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:09:39 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:09:39 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:09:39 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:11:40 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:11:40 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:11:40 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:11:40 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:11:41 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:11:41 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:11:41 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:11:41 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:11:41 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:13:38 01/01/1970] [BFCEV] CM SNMP set to 172.31.255.45 from 172.31.255.40

[00:13:38 01/01/1970] [BFCEV] Abnormal_UART_RX_Bytes_3

[00:13:38 01/01/1970] [BFCEV] CM SNMP set to 172.31.255.45 from 172.31.255.40

[00:13:41 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:13:41 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:13:41 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:13:41 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:13:42 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:13:42 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:13:42 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:13:42 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:13:42 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:15:43 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:15:43 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:15:43 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:15:43 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:15:44 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:15:44 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:15:44 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:15:44 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:15:44 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:17:44 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:17:44 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:17:44 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:17:44 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:17:45 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:17:45 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:17:45 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:17:45 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:17:45 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:19:46 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:19:46 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:19:46 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:19:46 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:19:47 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:19:47 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:19:47 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:19:47 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:19:47 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:21:47 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:21:47 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:21:47 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:21:47 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:21:48 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:21:48 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:21:48 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:21:48 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:21:48 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:23:49 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:23:49 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:23:49 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:23:49 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:23:50 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:23:50 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:23:50 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:23:50 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:23:50 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:24:38 01/01/1970] [BFCEV] CM SNMP set to 172.31.255.45 from 172.31.255.40

[00:24:38 01/01/1970] [BFCEV] Abnormal_UART_RX_Bytes_6

[00:24:38 01/01/1970] [BFCEV] CM SNMP set to 172.31.255.45 from 172.31.255.40

[00:25:50 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:25:50 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:25:50 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:25:50 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:25:51 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:25:51 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:25:51 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:25:51 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:25:51 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:27:52 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:27:52 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:27:52 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:27:52 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:27:53 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:27:53 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:27:53 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:27:53 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:27:53 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:29:53 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:29:53 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:29:53 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:29:53 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:29:54 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:29:54 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:29:54 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:29:54 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:29:54 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:31:55 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:31:55 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:31:55 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:31:55 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:31:56 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:31:56 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:31:56 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:31:56 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:31:56 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:33:56 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:33:56 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:33:56 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:33:56 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:33:57 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:33:57 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:33:57 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:33:57 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:33:57 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:35:58 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:35:58 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:35:58 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:35:58 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:35:59 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:35:59 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:35:59 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:35:59 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:35:59 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:37:59 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:37:59 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:37:59 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:37:59 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:38:00 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:38:00 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:38:00 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:38:00 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:38:00 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:40:01 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:40:01 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:40:01 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:40:01 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:40:02 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:40:02 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:40:02 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:40:02 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:40:02 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:42:02 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:42:02 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:42:02 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:42:02 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:42:03 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:42:03 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:42:03 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:42:03 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:42:03 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:44:03 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:44:03 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:44:03 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:44:03 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:44:04 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:44:04 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:44:04 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:44:04 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:44:04 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:46:05 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:46:05 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:46:05 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:46:05 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:46:06 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:46:06 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:46:06 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:46:06 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:46:06 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:48:06 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:48:06 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:48:06 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:48:06 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:48:07 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:48:07 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:48:07 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:48:07 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:48:07 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:50:08 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:50:08 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:50:08 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:50:08 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:50:09 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:50:09 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:50:09 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:50:09 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:50:09 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:52:09 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:52:09 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:52:09 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:52:09 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:52:10 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:52:10 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:52:10 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:52:10 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:52:10 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:54:11 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:54:11 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:54:11 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:54:11 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:54:12 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:54:12 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:54:12 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:54:12 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:54:12 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:56:12 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:56:12 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:56:12 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:56:12 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:56:13 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:56:13 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:56:13 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:56:13 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:56:13 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [00:58:14 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[00:58:14 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[00:58:14 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:58:14 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[00:58:15 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[00:58:15 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[00:58:15 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[00:58:15 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[00:58:15 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:00:15 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:00:15 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:00:15 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:00:15 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:00:16 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:00:16 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:00:16 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:00:16 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:00:16 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:02:17 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:02:17 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:02:17 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:02:17 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:02:18 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:02:18 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:02:18 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:02:18 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:02:18 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:04:18 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:04:18 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:04:18 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:04:18 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -26.25

Cable disconnected

[01:04:19 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:04:19 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:04:19 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:04:19 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:04:19 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:06:20 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:06:20 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:06:20 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:06:20 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:06:21 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:06:21 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:06:21 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:06:21 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:06:21 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:08:21 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:08:21 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:08:21 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:08:21 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:08:22 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:08:22 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:08:22 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:08:22 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:08:22 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:10:23 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:10:23 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:10:23 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:10:23 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:10:24 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:10:24 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:10:24 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:10:24 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:10:24 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:12:24 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:12:24 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:12:24 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:12:24 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:12:25 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:12:25 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:12:25 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:12:25 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:12:25 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:14:26 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:14:26 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:14:26 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:14:26 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:14:27 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:14:27 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:14:27 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:14:27 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:14:27 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:16:27 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:16:27 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:16:27 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:16:27 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:16:28 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:16:28 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:16:28 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:16:28 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:16:28 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:18:29 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:18:29 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:18:29 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:18:29 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:18:30 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:18:30 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:18:30 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:18:30 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:18:30 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:20:30 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:20:30 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:20:30 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:20:30 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:20:31 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:20:31 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:20:31 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:20:31 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:20:31 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:22:32 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:22:32 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:22:32 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:22:32 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:22:33 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:22:33 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:22:33 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:22:33 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:22:33 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:24:33 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:24:33 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:24:33 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:24:33 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:24:34 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:24:34 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:24:34 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:24:34 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:24:34 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:26:35 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:26:35 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:26:35 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:26:35 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:26:36 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:26:36 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:26:36 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:26:36 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:26:36 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:28:36 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:28:36 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:28:36 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:28:36 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:28:37 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:28:37 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:28:37 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:28:37 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:28:37 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:30:38 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:30:38 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:30:38 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:30:38 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:30:39 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:30:39 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:30:39 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:30:39 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:30:39 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:32:39 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:32:39 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:32:39 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:32:39 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:32:40 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:32:40 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:32:40 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:32:40 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:32:40 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:34:40 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:34:40 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:34:40 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:34:40 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:34:41 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:34:41 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:34:41 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:34:42 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:34:42 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:36:42 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:36:42 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:36:42 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:36:42 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:36:43 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:36:43 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:36:43 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:36:43 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:36:43 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:38:43 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:38:43 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:38:43 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:38:43 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:38:44 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:38:44 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:38:44 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:38:44 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:38:44 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:40:45 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:40:45 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:40:45 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:40:45 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:40:46 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:40:46 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:40:46 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:40:46 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:40:46 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:42:46 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:42:46 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:42:46 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:42:46 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:42:47 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:42:47 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:42:47 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:42:47 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:42:47 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:44:48 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:44:48 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:44:48 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:44:48 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:44:49 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:44:49 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:44:49 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:44:49 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:44:49 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:46:49 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:46:49 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:46:49 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:46:49 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:46:50 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:46:51 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:46:51 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:46:51 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:46:51 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

CM> [01:48:51 01/01/1970] [PowerMgmt] Checking for RF reconnect.

[01:48:51 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (0)

[01:48:51 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:48:51 01/01/1970] [PowerMgmt] Clearing D31 PowerSave.

D31PowerSave 'Off'

DS: 32 SC-QAM (0xFFFFFFFF), 5 OFDM (0x0000036D)

US: 8 SC-QAM (0x000000FF), 8 OFDMA (0x000000FF)

Restoring OFDM DS MAC settings 32

Restoring Common Said registers

Initializing Quarantine D31 DS MAC structures to 0

Restoring OFDM DS MAC settings 34

Restoring OFDM DS MAC settings 35

Restoring OFDM DS MAC settings 37

Restoring OFDM DS MAC settings 38

Restoring OFDM DS MAC settings 40

Restoring OFDM DS MAC settings 41

Checking for cable cut...

CM> Plant power is -25.25

Cable disconnected

[01:48:52 01/01/1970] [PowerMgmt] Cable still disconnected. Check again in 120 seconds.

[01:48:52 01/01/1970] [PowerMgmt] RfDisconnectPowerSave (1)

[01:48:52 01/01/1970] [PowerMgmt] Networked standby - invoke D3PowerSave.

[01:48:52 01/01/1970] [PowerMgmt] NumDsChans = 0, NumUsChans = 0

[01:48:52 01/01/1970] [PowerMgmt] Informing HAL of current RF configuration.

D31PowerSave 'On'

Storing off OFDM DS MAC settings for channel 32

Storing off OFDM DS MAC settings for channel 34

Storing off OFDM DS MAC settings for channel 35

Storing off OFDM DS MAC settings for channel 37

Storing off OFDM DS MAC settings for channel 38

Storing off OFDM DS MAC settings for channel 40

Storing off OFDM DS MAC settings for channel 41

DS: 0 SC-QAM (0x00000000), 0 OFDM (0x00000000)

US: 0 SC-QAM (0x00000000), 0 OFDMA (0x00000000)

Special case: don't disable USMAC:D30 Channel_0

Special case: don't disable DSMAC32:DSMAC32_Ch0

下面一下截图参考 感兴趣的可以去慢慢看.

[33940:RG]# cat /proc/cpuinfo

processor : 0

BogoMIPS : 54.00

Features : fp asimd evtstrm aes pmull sha1 sha2 crc32 cpuid

CPU implementer : 0x42

CPU architecture: 8

CPU variant : 0x0

CPU part : 0x100

CPU revision : 0

processor : 1

BogoMIPS : 54.00

Features : fp asimd evtstrm aes pmull sha1 sha2 crc32 cpuid

CPU implementer : 0x42

CPU architecture: 8

CPU variant : 0x0

CPU part : 0x100

CPU revision : 0

processor : 2

BogoMIPS : 54.00

Features : fp asimd evtstrm aes pmull sha1 sha2 crc32 cpuid

CPU implementer : 0x42

CPU architecture: 8

CPU variant : 0x0

CPU part : 0x100

CPU revision : 0

processor : 3

BogoMIPS : 54.00

Features : fp asimd evtstrm aes pmull sha1 sha2 crc32 cpuid

CPU implementer : 0x42

CPU architecture: 8

CPU variant : 0x0

CPU part : 0x100

CPU revision : 0

[33940:RG]#

dmesg | grep -i brcm

[33940:RG]# dmesg | grep -i brcm

[ 0.229113] brcm-miimdiomux339x e38041b0.miimdiomux: mdiomiimux339x: init complete!

[ 0.237026] brcm-dqm: DQM device smc - Legacy Interrupt Controller

[ 0.243323] brcm-dqm: DQM device smc with 32 Q's

[ 0.248086] brcm-dqm: DQM device gfap - Live IRQ Interrupt Handling

[ 0.254958] brcm-dqm: DQM device gfap with 64 Q's

[ 0.259813] brcm-dqm: DQM device ep5 - Ext Interrupt Controller

[ 0.265847] brcm-dqm: DQM device ep5 with 32 Q's

[ 0.270573] brcm-dqm: DQM device cpucomm - Legacy Interrupt Controller

[ 0.277246] brcm-dqm: DQM device cpucomm with 32 Q's

[ 0.561845] brcm-fpm: FPM with 2 pool(s)

[ 0.614829] brcm_pwr_rpc_init: Power Domain RPC module

[ 0.627346] brcm_ba_rpc_init: BA RPC Service module

[ 0.699813] arm-scmi brcm-scmi0: SCMI Notifications - Core Enabled.

[ 0.711394] arm-scmi brcm-scmi0: SCMI Protocol v1.0 'brcm-scmi:' Firmware version 0x1

[ 0.937573] irq_brcmstb_l2: registered L2 intc (/upg-intc, parent irq: 23)

[ 0.944528] irq_brcmstb_l2: registered L2 intc (/upg-bsc-intc, parent irq: 24)

[ 0.951823] irq_brcmstb_l2: registered L2 intc (/upg-spi-intc, parent irq: 25)

[ 0.999283] arm-scmi brcm-scmi0: Failed. SCMI protocol 22 not active.

[ 1.106399] brcmstb_qspi d1217000.spi0: using mspi mode

[ 1.111953] brcmstb_qspi d1217400.spi1: using mspi mode

[ 1.234750] brcmstb-i2c d1213100.i2c-a: iica@50000hz registered in interrupt mode

[ 1.242437] brcmstb-i2c d1213280.i2c-d: iicd@50000hz registered in interrupt mode

[ 1.281675] arm-scmi brcm-scmi0: Failed. SCMI protocol 17 not active.

[ 3.539879] brcm-vfbio driver v1.0, multi-queue mode

[ 11.183088] brcm-unimac driver v2.0

[ 11.408602] brcm-dqnet: Setting /proc/sys/net/core/dev_weight=256

[ 11.415001] brcm-dqnet: Setting /proc/sys/net/core/netdev_budget=1000

[ 11.421750] brcm-dqnet: Setting /proc/sys/net/core/netdev_max_backlog=3000

[ 11.433387] brcm-dqnet: eth3: mac device xlmac0

[ 11.438008] brcm-dqnet: eth3: mii device dgphy0

[ 11.478525] brcm-dqnet: Setting /sys/class/net/eth3/queues/rx-0/rps_cpus=f

[ 11.491775] brcm-dqnet: net device eth3

[ 11.512163] brcm-dqnet: Setting /sys/class/net/cm0/queues/rx-0/rps_cpus=f

[ 11.525488] brcm-dqnet: net device cm0

[ 11.530023] brcm-dqnet: eth0: mac device xlmac3

[ 11.534616] brcm-dqnet: eth0: mii device serdes3

[ 22.713309] brcm-dqnet: Setting /sys/class/net/eth0/queues/rx-0/rps_cpus=f

[ 22.726424] brcm-dqnet: net device eth0

[ 22.730858] brcm-dqnet: eth1: mac device xlmac2

[ 22.735450] brcm-dqnet: eth1: mii device serdes2

[ 33.785570] brcm-dqnet: Setting /sys/class/net/eth1/queues/rx-0/rps_cpus=f

[ 33.799180] brcm-dqnet: net device eth1

[ 33.804421] brcm-dqnet: eth2: mac device xlmac1

[ 33.809055] brcm-dqnet: eth2: mii device dgphy1

[ 33.832171] brcm-dqnet: Setting /sys/class/net/eth2/queues/rx-0/rps_cpus=f

[ 33.846907] brcm-dqnet: net device eth2

[ 33.851785] brcm-dqnet: Setting /sys/class/net/priv0/queues/rx-0/rps_cpus=f

[ 33.864638] brcm-dqnet: net device priv0

[ 44.241441] brcm-dqnet ethernet2 eth1: Link is Up - 1Gbps/Full - flow control rx/tx

[ 1428.922674] brcm-dqnet ethernet0 eth3: Link is Up - 1Gbps/Full - flow control rx/tx

[ 2139.578576] brcm-dqnet ethernet0 eth3: Link is Down

[ 2169.169738] brcm-dqnet ethernet3 eth0: Link is Up - 1Gbps/Full - flow control rx/tx

[ 2254.212450] brcm-dqnet ethernet3 eth0: Link is Down

[33940:RG]#

空间使用情况

top

分区太多了

lsblk

[33940:RG]# lsblk

NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT

flash-smcnvo 254:0 0 124K 0 disk

flash-smcnvb 254:16 0 124K 0 disk

flash-bolto 254:32 0 1.5M 0 disk

flash-boltb 254:48 0 1.5M 0 disk

flash-kernelo 254:64 0 16M 0 disk

flash-kernelb 254:80 0 16M 0 disk

flash-rgo 254:96 0 1024M 0 disk /

flash-rgb 254:112 0 1024M 0 disk

flash-cmblo 254:128 0 1M 0 disk

flash-cmblb 254:144 0 1M 0 disk

flash-cmo 254:160 0 20M 0 disk

flash-cmb 254:176 0 20M 0 disk

flash-nvramo 254:192 0 124K 0 disk

flash-nvramb 254:208 0 124K 0 disk

flash-devtreeo 254:224 0 512K 0 disk

flash-devtreeb 254:240 0 512K 0 disk

flash-rgnonvolo 254:256 0 40M 0 disk /data

flash-rgnonvolb 254:272 0 40M 0 disk /data_bak

flash-rdknvramo 254:288 0 100M 0 disk

flash-rdknvramb 254:304 0 100M 0 disk

flash-cmnvpo 254:320 0 2M 0 disk

flash-cmnvpb 254:336 0 2M 0 disk

flash-cmnvdo 254:352 0 2M 0 disk

flash-cmnvdb 254:368 0 2M 0 disk

flash-smcblo 254:384 0 256K 0 disk

flash-smcblb 254:400 0 256K 0 disk

flash-smcoso 254:416 0 1.5M 0 disk

flash-smcosb 254:432 0 1.5M 0 disk

flash-gfapo 254:448 0 1M 0 disk

flash-gfapb 254:464 0 1M 0 disk

flash-macadro 254:480 0 124K 0 disk

flash-macadrb 254:496 0 124K 0 disk

flash-reservedo 254:512 0 1.5M 0 disk

flash-reservedb 254:528 0 1.5M 0 disk

flash-asfo 254:544 0 8M 0 disk

flash-asfb 254:560 0 8M 0 disk

flash-custcfgpo 254:576 0 128K 0 disk

flash-custcfgpb 254:592 0 128K 0 disk

flash-stao 254:608 0 256M 0 disk

flash-stab 254:624 0 256M 0 disk

flash-debugo 254:640 0 4M 0 disk

flash-ramlogo 254:656 0 4M 0 disk

flash-amso 254:672 0 2M 0 disk

flash-amsb 254:688 0 2M 0 disk

flash-atao 254:704 0 8M 0 disk /mnt/ata

flash-atab 254:720 0 8M 0 disk

flash-bp3lico 254:736 0 32M 0 disk /mnt/bp3lic

flash-bp3licb 254:752 0 32M 0 disk /mnt/bp3lic_bak

flash-smcnvexto 254:768 0 252K 0 disk

flash-smcnvextb 254:784 0 252K 0 disk

flash-custcfgdo 254:800 0 256K 0 disk

flash-custcfgdb 254:816 0 256K 0 disk

flash-customo 254:832 0 2.1G 0 disk

flash-customb 254:848 0 2.1G 0 disk

[33940:RG]# cat /proc/partitions

major minor #blocks name

1 0 65536 ram0

1 1 65536 ram1

1 2 65536 ram2

1 3 65536 ram3

1 4 65536 ram4

1 5 65536 ram5

1 6 65536 ram6

1 7 65536 ram7

1 8 65536 ram8

1 9 65536 ram9

1 10 65536 ram10

1 11 65536 ram11

1 12 65536 ram12

1 13 65536 ram13

1 14 65536 ram14

1 15 65536 ram15

254 0 124 flash-smcnvo

254 16 124 flash-smcnvb

254 32 1536 flash-bolto

254 48 1536 flash-boltb

254 64 16384 flash-kernelo

254 80 16384 flash-kernelb

254 96 1048572 flash-rgo

254 112 1048572 flash-rgb

254 128 1024 flash-cmblo

254 144 1024 flash-cmblb

254 160 20480 flash-cmo

254 176 20480 flash-cmb

254 192 124 flash-nvramo

254 208 124 flash-nvramb

254 224 512 flash-devtreeo

254 240 512 flash-devtreeb

254 256 40956 flash-rgnonvolo

254 272 40956 flash-rgnonvolb

254 288 102396 flash-rdknvramo

254 304 102396 flash-rdknvramb

254 320 2044 flash-cmnvpo

254 336 2044 flash-cmnvpb

254 352 2044 flash-cmnvdo

254 368 2044 flash-cmnvdb

254 384 256 flash-smcblo

254 400 256 flash-smcblb

254 416 1536 flash-smcoso

254 432 1536 flash-smcosb

254 448 1024 flash-gfapo

254 464 1024 flash-gfapb

254 480 124 flash-macadro

254 496 124 flash-macadrb

254 512 1536 flash-reservedo

254 528 1536 flash-reservedb

254 544 8192 flash-asfo

254 560 8192 flash-asfb

254 576 128 flash-custcfgpo

254 592 128 flash-custcfgpb

254 608 262144 flash-stao

254 624 262144 flash-stab

254 640 4092 flash-debugo

254 656 4096 flash-ramlogo

254 672 2048 flash-amso

254 688 2048 flash-amsb

254 704 8192 flash-atao

254 720 8192 flash-atab

254 736 32764 flash-bp3lico

254 752 32764 flash-bp3licb

254 768 252 flash-smcnvexto

254 784 252 flash-smcnvextb

254 800 256 flash-custcfgdo

254 816 256 flash-custcfgdb

254 832 2244344 flash-customo

254 848 2244344 flash-customb

[33940:RG]# ip a

wifi相关

[33940:RG]# ls /proc/net/wireless

ls: /proc/net/wireless: No such file or directory

[33940:RG]# dmesg | grep -i wifi

[ 3.101916] wrfpwr wifi-rfpwr: enabled vreg-wl0-rf supply.

[ 3.309931] wrfpwr wifi-rfpwr: enabled vreg-wl1-rf supply.

[ 3.517909] wrfpwr wifi-rfpwr: enabled vreg-wl2-rf supply.

[33940:RG]# [33940:RG]# dmesg | grep -i wifi

设备上至少有 3 个 Wi-Fi 射频模块（wl0 / wl1 / wl2）​​

  • •

    ​wl0→ 2.4GHz​

  • •

    ​wl1→ 5GHz​

  • •

    ​wl2→6Ghz

[33940:RG]# lsmod | grep -i -E 'wl|brcm|wifi'

wl 11374592 0

wlerouter 28672 2 wl,dhd

igs 32768 2 wl,dhd

emf 36864 3 wl,igs,dhd

hnd 540672 4 wl,emf,igs,dhd

wlcsm 24576 5 hnd

dqnet 139264 2 bspeed,wlerouter

[33940:RG]#

[33940:RG]# dmesg | grep -i -E 'wl|brcm|wifi|firmware|rfkill|phy'

[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x420f1000]

[ 0.000000] psci: PSCIv1.1 detected in firmware.

[ 0.000000] psci: Trusted OS resident on physical CPU 0x0

[ 0.000000] arch_timer: cp15 timer(s) running at 27.00MHz (phys).

[ 0.229113] brcm-miimdiomux339x e38041b0.miimdiomux: mdiomiimux339x: init complete!

[ 0.237026] brcm-dqm: DQM device smc - Legacy Interrupt Controller

[ 0.243323] brcm-dqm: DQM device smc with 32 Q's

[ 0.248086] brcm-dqm: DQM device gfap - Live IRQ Interrupt Handling

[ 0.254958] brcm-dqm: DQM device gfap with 64 Q's

[ 0.259813] brcm-dqm: DQM device ep5 - Ext Interrupt Controller

[ 0.265847] brcm-dqm: DQM device ep5 with 32 Q's

[ 0.270573] brcm-dqm: DQM device cpucomm - Legacy Interrupt Controller

[ 0.277246] brcm-dqm: DQM device cpucomm with 32 Q's

[ 0.561845] brcm-fpm: FPM with 2 pool(s)

[ 0.614829] brcm_pwr_rpc_init: Power Domain RPC module

[ 0.627346] brcm_ba_rpc_init: BA RPC Service module

[ 0.699813] arm-scmi brcm-scmi0: SCMI Notifications - Core Enabled.

[ 0.711394] arm-scmi brcm-scmi0: SCMI Protocol v1.0 'brcm-scmi:' Firmware version 0x1

[ 0.937573] irq_brcmstb_l2: registered L2 intc (/upg-intc, parent irq: 23)

[ 0.944528] irq_brcmstb_l2: registered L2 intc (/upg-bsc-intc, parent irq: 24)

[ 0.951823] irq_brcmstb_l2: registered L2 intc (/upg-spi-intc, parent irq: 25)

[ 0.999283] arm-scmi brcm-scmi0: Failed. SCMI protocol 22 not active.

[ 1.106399] brcmstb_qspi d1217000.spi0: using mspi mode

[ 1.111953] brcmstb_qspi d1217400.spi1: using mspi mode

[ 1.234750] brcmstb-i2c d1213100.i2c-a: iica@50000hz registered in interrupt mode

[ 1.242437] brcmstb-i2c d1213280.i2c-d: iicd@50000hz registered in interrupt mode

[ 1.281675] arm-scmi brcm-scmi0: Failed. SCMI protocol 17 not active.

[ 3.101916] wrfpwr wifi-rfpwr: enabled vreg-wl0-rf supply.

[ 3.309931] wrfpwr wifi-rfpwr: enabled vreg-wl1-rf supply.

[ 3.517909] wrfpwr wifi-rfpwr: enabled vreg-wl2-rf supply.

[ 3.539879] brcm-vfbio driver v1.0, multi-queue mode

[ 3.545022] platform regulatory.0: Direct firmware load for regulatory.db failed with error -2

[ 11.183088] brcm-unimac driver v2.0

[ 11.293694] GFAP: Physical dtcm reserved base address:0xdac8e800

[ 11.306595] GFAP Firmware version: 4.49.49

[ 11.408602] brcm-dqnet: Setting /proc/sys/net/core/dev_weight=256

[ 11.415001] brcm-dqnet: Setting /proc/sys/net/core/netdev_budget=1000

[ 11.421750] brcm-dqnet: Setting /proc/sys/net/core/netdev_max_backlog=3000

[ 11.433387] brcm-dqnet: eth3: mac device xlmac0

[ 11.438008] brcm-dqnet: eth3: mii device dgphy0

[ 11.478525] brcm-dqnet: Setting /sys/class/net/eth3/queues/rx-0/rps_cpus=f

[ 11.491775] brcm-dqnet: net device eth3

[ 11.512163] brcm-dqnet: Setting /sys/class/net/cm0/queues/rx-0/rps_cpus=f

[ 11.525488] brcm-dqnet: net device cm0

[ 11.530023] brcm-dqnet: eth0: mac device xlmac3

[ 11.534616] brcm-dqnet: eth0: mii device serdes3

[ 20.688825] Broadcom BCM5499X e3805400.netport-mdio--1:17: PHY Firmware Size 294708:0x47f34 bytes

[ 20.697765] Broadcom BCM5499X e3805400.netport-mdio--1:17: PHY Firmware Simple Checksum: 0xe055ddcc

[ 21.750023] Broadcom BCM5499X e3805400.netport-mdio--1:17: PHY Firmware is loaded with Good CRC.

[ 21.758927] Broadcom BCM5499X e3805400.netport-mdio--1:17: PHY Firmware Version(Main.Branch.Build): 2.03.03

[ 21.768830] Broadcom BCM5499X e3805400.netport-mdio--1:17: PHY Firmware Date(MM/DD/YYYY): 01/04/2023

[ 22.713309] brcm-dqnet: Setting /sys/class/net/eth0/queues/rx-0/rps_cpus=f

[ 22.726424] brcm-dqnet: net device eth0

[ 22.730858] brcm-dqnet: eth1: mac device xlmac2

[ 22.735450] brcm-dqnet: eth1: mii device serdes2

[ 31.749934] Broadcom BCM5499X e3805400.netport-mdio--1:16: PHY Firmware Size 294708:0x47f34 bytes

[ 31.758852] Broadcom BCM5499X e3805400.netport-mdio--1:16: PHY Firmware Simple Checksum: 0xe055ddcc

[ 32.822057] Broadcom BCM5499X e3805400.netport-mdio--1:16: PHY Firmware is loaded with Good CRC.

[ 32.831007] Broadcom BCM5499X e3805400.netport-mdio--1:16: PHY Firmware Version(Main.Branch.Build): 2.03.03

[ 32.840899] Broadcom BCM5499X e3805400.netport-mdio--1:16: PHY Firmware Date(MM/DD/YYYY): 01/04/2023

[ 33.785570] brcm-dqnet: Setting /sys/class/net/eth1/queues/rx-0/rps_cpus=f

[ 33.799180] brcm-dqnet: net device eth1

[ 33.804421] brcm-dqnet: eth2: mac device xlmac1

[ 33.809055] brcm-dqnet: eth2: mii device dgphy1

[ 33.832171] brcm-dqnet: Setting /sys/class/net/eth2/queues/rx-0/rps_cpus=f

[ 33.846907] brcm-dqnet: net device eth2

[ 33.851785] brcm-dqnet: Setting /sys/class/net/priv0/queues/rx-0/rps_cpus=f

[ 33.864638] brcm-dqnet: net device priv0

[ 40.106379] FLOWMGR: GFAP Physical natc context base addr: 0x90400400 size 128

[ 44.241441] brcm-dqnet ethernet2 eth1: Link is Up - 1Gbps/Full - flow control rx/tx

[ 54.654937] Initializing WLCSM Module

[ 54.658663] WLCSM Module loaded successfully

[ 54.999288] WL MLO AP IDS assignment -1 -1 -1 -1

[ 57.396334] wl: module license 'Proprietary' taints kernel.

[ 57.468972] wl_module_init: msglevel set to 0x1

[ 57.473521] wl_module_init: msglevel2 set to 0x0

[ 57.478153] wl_module_init: phymsglevel set to 0x1

[ 57.482956] wl_module_init: passivemode set to 0x0

[ 57.487756] wl_module_init: txworkq set to 0x0

[ 57.492209] wl_module_init: wl_txq_thresh set to 0x0

[ 57.497183] wl_module_init: wl_txq_bound set to 0x100

[ 61.418436] GFAP Firmware version: 4.49.49

[ 1428.922674] brcm-dqnet ethernet0 eth3: Link is Up - 1Gbps/Full - flow control rx/tx

[ 2139.578576] brcm-dqnet ethernet0 eth3: Link is Down

[ 2169.169738] brcm-dqnet ethernet3 eth0: Link is Up - 1Gbps/Full - flow control rx/tx

[ 2254.212450] brcm-dqnet ethernet3 eth0: Link is Down

[33940:RG]#

nvram show | grep -i wl -->> wifi info

wl0_vht_features=-1

wl0_vhtmode=-1

wl0_vlan_prio_mode=off

wl0_wanmetrics=1:0:0=2500>384=0>0=0

wl0_wds=

wl0_wds_timeout=1

wl0_wep=disabled

wl0_wet_tunnel=0

wl0_wme=on

wl0_wme_ap_be=15 63 3 0 0 off off

wl0_wme_ap_bk=15 1023 7 0 0 off off

wl0_wme_ap_vi=7 15 1 6016 3008 off off

wl0_wme_ap_vo=3 7 1 3264 1504 off off

wl0_wme_apsd=on

wl0_wme_bss_disable=0

wl0_wme_no_ack=off

wl0_wme_sta_be=15 1023 3 0 0 off off

wl0_wme_sta_bk=15 1023 7 0 0 off off

wl0_wme_sta_vi=7 15 2 6016 3008 off off

wl0_wme_sta_vo=3 7 2 3264 1504 off off

wl0_wme_txp_be=0 0 0 0 0

wl0_wme_txp_bk=0 0 0 0 0

wl0_wme_txp_vi=0 0 0 0 0

wl0_wme_txp_vo=0 0 0 0 0

wl0_wmf_bss_enable=1

wl0_wmf_igmpq_filter=1

wl0_wmf_mdata_sendup=1

wl0_wmf_ucast_upnp=0

wl0_wmf_ucigmp_query=1

wl0_wpa_gtk_rekey=0

wl0_wpa_psk=

wl0_wpa_ptk_rekey=0

wl0_wps_config_state=0

wl0_wps_mode=enabled

wl0_wps_reg=enabled

wl1.10_txbf_bfe_cap=111

wl1.11_txbf_bfe_cap=111

wl1.12_txbf_bfe_cap=111

wl1.13_txbf_bfe_cap=111

wl1.14_txbf_bfe_cap=111

wl1.15_txbf_bfe_cap=111

wl1.1_hwaddr=5E:22:DA:1B:06:69

wl1.1_txbf_bfe_cap=111

wl1.2_hwaddr=5E:22:DA:1B:06:6A

wl1.2_txbf_bfe_cap=111

wl1.3_hwaddr=5E:22:DA:1B:06:6B

wl1.3_txbf_bfe_cap=111

wl1.4_hwaddr=5E:22:DA:1B:06:6C

wl1.4_txbf_bfe_cap=111

wl1.5_hwaddr=5E:22:DA:1B:06:6D

wl1.5_txbf_bfe_cap=111

wl1.6_hwaddr=5E:22:DA:1B:06:6E

wl1.6_txbf_bfe_cap=111

wl1.7_hwaddr=5E:22:DA:1B:06:6F

wl1.7_txbf_bfe_cap=111

wl1.8_txbf_bfe_cap=111

wl1.9_txbf_bfe_cap=111

wl1_3gpplist=

wl1_acs_access_category_en=2 3

wl1_acs_ap_inttrf_numsecs=5

wl1_acs_ap_inttrf_thresh=150

wl1_acs_ap_inttrf_total_numsecs=5

wl1_acs_ap_inttrf_total_thresh=250

wl1_acs_bgdfs_ahead=1

wl1_acs_bgdfs_avoid_on_far_sta=1

wl1_acs_bgdfs_enab=1

wl1_acs_bgdfs_fallback_blocking_cac=1

wl1_acs_bgdfs_idle_frames_thld=36000

wl1_acs_bgdfs_txblank_threshold=50

wl1_acs_boot_only=0

wl1_acs_chan_flop_period=70

wl1_acs_chanim_num_segments=10

wl1_acs_ci_scan_timer=10

wl1_acs_dfs=2

wl1_acs_dfs_reentry=1

wl1_acs_dfsr_activity=30 10240

wl1_acs_dfsr_deferred=604800 5

wl1_acs_dfsr_immediate=300 3

wl1_acs_excl_chans=

wl1_acs_fcs_mode=1

wl1_acs_ignore_txfail=0

wl1_acs_scan_entry_expire=3600

wl1_acs_segment_chanim=1

wl1_acs_sta_inttrf_numsecs=5

wl1_acs_sta_inttrf_thresh=150

wl1_acs_start_on_nondfs=0

wl1_acs_traffic_thresh_en=1

wl1_acs_tx_idle_cnt=0

wl1_acsd_scs_dfs_scan=0

wl1_akm=

wl1_ampdu=auto

wl1_ampdu_rr_rtylimit_tid=2 2 2 2 2 2 2 2

wl1_ampdu_rtylimit_tid=5 5 5 5 5 5 5 5

wl1_amsdu=auto

wl1_anonai=anonymous.com

wl1_antdiv=-1

wl1_ap_isolate=0

wl1_assoc_retry_max=3

wl1_atf=1

wl1_auth=0

wl1_auth_mode=none

wl1_bcn=100

wl1_bcn_rotate=0

wl1_boot_time=88

wl1_bsd_if_qualify_policy=60 0x0 -75

wl1_bsd_if_select_policy=wl0

wl1_bsd_sta_select_policy=300 0 0 0 1 0 0 0 0 0x0

wl1_bsd_steering_policy=80 5 3 -75 0 0x0

wl1_bss_enabled=1

wl1_bss_maxassoc=128

wl1_bss_opmode_cap_reqd=0

wl1_bw_cap=7

wl1_bw_switch_160=1

wl1_cal_period=-1

wl1_cevent=1

wl1_cfg_maxassoc=128

wl1_chanspec=128

wl1_closed=0

wl1_concaplist=1:0:0;6:20:1;6:22:0;6:80:1;6:443:1;6:1723:0;6:5060:0;17:500:1;17:5060:0;17:4500:1;50:0:1

wl1_corerev=134

wl1_country_code=#a

wl1_country_rev=0

wl1_crypto=

wl1_dcs_csa_unicast=1

wl1_dfs_pref=

wl1_domainlist=

wl1_dpp_conf_recvd=0

wl1_dtim=1

wl1_dwds=0

wl1_dyn160=0

wl1_eht_features=-1

wl1_fbt_generate_local=1

wl1_frag=2346

wl1_frameburst=on

wl1_frameburst_override=on

wl1_gascbdel=0

wl1_gmode=1

wl1_gmode_protection=auto

wl1_he_features=-1

wl1_hessid=50:6F:9A:00:11:22

wl1_homeqlist=mail.example.com:rfc4282

wl1_hs2cap=1

wl1_hsflag=1aa0

wl1_hw_rxchain=15

wl1_hw_txchain=15

wl1_hwaddr=5C:22:DA:1B:06:68

wl1_iapp=-1

wl1_ifname=wl1

wl1_infra=1

wl1_intfer_cnt=1

wl1_intfer_period=1

wl1_intfer_tcptxfail=15

wl1_intfer_txfail=15

wl1_ipv4addr=3

wl1_ipv6addr=0

wl1_iwnettype=2

wl1_key=1

wl1_key1=

wl1_key2=

wl1_key3=

wl1_key4=

wl1_lazywds=0

wl1_leddc=0x640000

wl1_maclist=

wl1_macmode=disabled

wl1_maxassoc=128

wl1_mcast_regen_bss_enable=1

wl1_mode=ap

wl1_mrate=0

wl1_mu_features=1

wl1_nband=1

wl1_net_reauth=36000

wl1_netauthlist=accepttc=+httpred=https://tandc-server.wi-fi.org

wl1_nmcsidx=-1

wl1_nmode=-1

wl1_nratelog=1

wl1_obss_coex=1

wl1_obss_dyn_bw=0

wl1_oce_enable=0

wl1_oob_rnr_list_src=

wl1_opercls=3

wl1_oplist=Wi-Fi Alliance!eng|Wi-Fi联盟!chi

wl1_osu_frndname=SP Red Test Only!eng|SP 빨강 테스트 전용!kor


wl1_osu_method=1

wl1_osu_nai=

wl1_osu_servdesc=Free service for test purpose!eng|테스트 목적으로 무료 서비스!kor

wl1_osu_ssid=OSU

wl1_osu_uri=https://osu-server.r2-testbed.wi-fi.org/

wl1_ouilist=506F9A:1;001BC504BD:1

wl1_owe_groups=19 20 21

wl1_owe_ptk_workaround=1

wl1_phy_dyn_switch_th=

wl1_phytype=v

wl1_phytypes=v

wl1_plcphdr=long

wl1_prev_mbss=8

wl1_prev_mode=ap

wl1_probresp_mf=0

wl1_probresp_sw=1

wl1_pspretend_retry_limit=50

wl1_psr_mrpt=0

wl1_psta_inact=600

wl1_qosmapie=0A030C030E03100012031403160318041A041C041E042C062E063007+0,7;8,15;16,23;24,31;32,39;40,47;48,55;56,63

wl1_qosmgmt_enable=0x33

wl1_radio=1

wl1_radio_pwrsave_enable=0

wl1_radio_pwrsave_level=0

wl1_radio_pwrsave_pps=10

wl1_radio_pwrsave_quiet_time=1800

wl1_radio_pwrsave_stas_assoc_check=0

wl1_radioids=BCM15

wl1_radius_ipaddr=

wl1_radius_key=

wl1_radius_port=1812

wl1_rate=0

wl1_rateset=default

wl1_realmlist=mail.example.com+0+21=2,4#5,7?cisco.com+0+21=2,4#5,7?wi-fi.org+0+21=2,4#5,7;13=5,6?example.com+0+13=5,6

wl1_reg_mode=h

wl1_rifs_advert=auto

wl1_rts=2347

wl1_rx_amsdu_in_ampdu_ovr=-1

wl1_rxchain=15

wl1_rxchain_pwrsave_enable=1

wl1_rxchain_pwrsave_pps=10

wl1_rxchain_pwrsave_quiet_time=1800

wl1_rxchain_pwrsave_stas_assoc_check=1

wl1_rxstreams=0

wl1_sae_anti_clog_threshold=5

wl1_sae_groups=19 20 21

wl1_sae_pwe=0

wl1_sae_sync=5

wl1_saepk_enable=0

wl1_ssd_type=0

wl1_ssid=XB10-5g-60

wl1_sta_mpc_disable=1

wl1_sta_retry_time=5

wl1_stbc_rx=1

wl1_stbc_tx=auto

wl1_taf_enable=-1

wl1_trf_mgmt_rssi_policy=0

wl1_txbf_bfe_cap=111

wl1_txbf_bfr_cap=255

wl1_txbf_imp=1

wl1_txchain=15

wl1_txstreams=0

wl1_unit=1

wl1_venuegrp=2

wl1_venuelist=57692D466920416C6C69616E63650A3239383920436F7070657220526F61640A53616E746120436C6172612C2043412039353035312C2055534121656E677C57692D4669E88194E79B9FE5AE9EE9AA8CE5AEA40AE4BA8CE4B99DE585ABE4B99DE5B9B4E5BA93E69F8FE8B7AF0AE59CA3E5858BE68B89E68B892C20E58AA0E588A9E7A68FE5B0BCE4BA9A39353035312C20E7BE8EE59BBD21636869

wl1_venuetype=8

wl1_version=17.10.369.39012 (r839077 WLTEST) [93229f7]

wl1_vht_features=-1

wl1_vhtmode=-1

wl1_vlan_prio_mode=off

wl1_wanmetrics=1:0:0=2500>384=0>0=0

wl1_wds=

wl1_wds_timeout=1

wl1_wep=disabled

wl1_wet_tunnel=0

wl1_wme=on

wl1_wme_ap_be=15 63 3 0 0 off off

wl1_wme_ap_bk=15 1023 7 0 0 off off

wl1_wme_ap_vi=7 15 1 6016 3008 off off

wl1_wme_ap_vo=3 7 1 3264 1504 off off

wl1_wme_apsd=on

wl1_wme_bss_disable=0

wl1_wme_no_ack=off

wl1_wme_sta_be=15 1023 3 0 0 off off

wl1_wme_sta_bk=15 1023 7 0 0 off off

wl1_wme_sta_vi=7 15 2 6016 3008 off off

wl1_wme_sta_vo=3 7 2 3264 1504 off off

wl1_wme_txp_be=0 0 0 0 0

wl1_wme_txp_bk=0 0 0 0 0

wl1_wme_txp_vi=0 0 0 0 0

wl1_wme_txp_vo=0 0 0 0 0

wl1_wmf_bss_enable=1

wl1_wmf_igmpq_filter=1

wl1_wmf_mdata_sendup=1

wl1_wmf_ucast_upnp=0

wl1_wmf_ucigmp_query=1

wl1_wpa_gtk_rekey=0

wl1_wpa_psk=

wl1_wpa_ptk_rekey=0

wl1_wps_config_state=0

wl1_wps_mode=enabled

wl1_wps_reg=enabled

wl2.10_txbf_bfe_cap=111

wl2.11_txbf_bfe_cap=111

wl2.12_txbf_bfe_cap=111

wl2.13_txbf_bfe_cap=111

wl2.14_txbf_bfe_cap=111

wl2.15_txbf_bfe_cap=111

wl2.1_crypto=aes

wl2.1_hwaddr=5C:22:DA:1B:06:6A

wl2.1_mfp=2

wl2.1_txbf_bfe_cap=111

wl2.1_wps_mode=disabled

wl2.2_crypto=aes

wl2.2_hwaddr=5C:22:DA:1B:06:6B

wl2.2_mfp=2

wl2.2_txbf_bfe_cap=111

wl2.2_wps_mode=disabled

wl2.3_crypto=aes

wl2.3_hwaddr=5C:22:DA:1B:06:6C

wl2.3_mfp=2

wl2.3_txbf_bfe_cap=111

wl2.3_wps_mode=disabled

wl2.4_crypto=aes

wl2.4_hwaddr=5C:22:DA:1B:06:6D

wl2.4_mfp=2

wl2.4_txbf_bfe_cap=111

wl2.4_wps_mode=disabled

wl2.5_crypto=aes

wl2.5_hwaddr=5C:22:DA:1B:06:6E

wl2.5_mfp=2

wl2.5_txbf_bfe_cap=111

wl2.5_wps_mode=disabled

wl2.6_crypto=aes

wl2.6_hwaddr=5C:22:DA:1B:06:6F

wl2.6_mfp=2

wl2.6_txbf_bfe_cap=111

wl2.6_wps_mode=disabled

wl2.7_crypto=aes

wl2.7_hwaddr=5C:22:DA:1B:06:68

wl2.7_mfp=2

wl2.7_txbf_bfe_cap=111

wl2.7_wps_mode=disabled

wl2.8_txbf_bfe_cap=111

wl2.9_txbf_bfe_cap=111

wl2_3gpplist=

wl2_acs_access_category_en=2 3

wl2_acs_ap_inttrf_numsecs=5

wl2_acs_ap_inttrf_thresh=150

wl2_acs_ap_inttrf_total_numsecs=5

wl2_acs_ap_inttrf_total_thresh=250

wl2_acs_bgdfs_ahead=1

wl2_acs_bgdfs_avoid_on_far_sta=1

wl2_acs_bgdfs_enab=1

wl2_acs_bgdfs_fallback_blocking_cac=1

wl2_acs_bgdfs_idle_frames_thld=36000

wl2_acs_bgdfs_txblank_threshold=50

wl2_acs_boot_only=0

wl2_acs_chan_flop_period=70

wl2_acs_chanim_num_segments=10

wl2_acs_ci_scan_timer=10

wl2_acs_dfs=2

wl2_acs_dfs_reentry=1

wl2_acs_dfsr_activity=30 10240

wl2_acs_dfsr_deferred=604800 5

wl2_acs_dfsr_immediate=300 3

wl2_acs_excl_chans=

wl2_acs_fcs_mode=1

wl2_acs_ignore_txfail=0

wl2_acs_scan_entry_expire=3600

wl2_acs_segment_chanim=1

wl2_acs_sta_inttrf_numsecs=5

wl2_acs_sta_inttrf_thresh=150

wl2_acs_start_on_nondfs=0

wl2_acs_traffic_thresh_en=1

wl2_acs_tx_idle_cnt=0

wl2_acsd_scs_dfs_scan=0

wl2_akm=

wl2_ampdu=auto

wl2_ampdu_rr_rtylimit_tid=2 2 2 2 2 2 2 2

wl2_ampdu_rtylimit_tid=5 5 5 5 5 5 5 5

wl2_amsdu=auto

wl2_anonai=anonymous.com

wl2_antdiv=-1

wl2_ap_isolate=0

wl2_assoc_retry_max=3

wl2_atf=1

wl2_auth=0

wl2_auth_mode=none

wl2_bcn=100

wl2_bcn_rotate=0

wl2_boot_time=90

wl2_bsd_if_qualify_policy=0 0x0 -75

wl2_bsd_if_select_policy=wl0 wl1

wl2_bsd_sta_select_policy=4 0 400 0 0 -1 0 0 0 0x60

wl2_bsd_steering_policy=0 5 3 0 400 0x60

wl2_bss_enabled=1

wl2_bss_maxassoc=128

wl2_bss_opmode_cap_reqd=0

wl2_bw_cap=15

wl2_bw_switch_160=1

wl2_cal_period=-1

wl2_cevent=1

wl2_cfg_maxassoc=128

wl2_chanspec=6g165

wl2_closed=0

wl2_concaplist=1:0:0;6:20:1;6:22:0;6:80:1;6:443:1;6:1723:0;6:5060:0;17:500:1;17:5060:0;17:4500:1;50:0:1

wl2_corerev=134

wl2_country_code=#a

wl2_country_rev=0

wl2_crypto=

wl2_dcs_csa_unicast=1

wl2_dfs_pref=

wl2_domainlist=

wl2_dpp_conf_recvd=0

wl2_dtim=1

wl2_dwds=0

wl2_dyn160=0

wl2_eht_features=-1

wl2_fbt_generate_local=1

wl2_frag=2346

wl2_frameburst=on

wl2_frameburst_override=on

wl2_gascbdel=0

wl2_gmode=1

wl2_gmode_protection=auto

wl2_he_features=-1

wl2_hessid=50:6F:9A:00:11:22

wl2_homeqlist=mail.example.com:rfc4282

wl2_hs2cap=1

wl2_hsflag=1aa0

wl2_hw_rxchain=15

wl2_hw_txchain=15

wl2_hwaddr=5C:22:DA:1B:06:69

wl2_iapp=-1

wl2_ifname=wl2

wl2_infra=1

wl2_intfer_cnt=1

wl2_intfer_period=1

wl2_intfer_tcptxfail=15

wl2_intfer_txfail=15

wl2_ipv4addr=3

wl2_ipv6addr=0

wl2_iwnettype=2

wl2_key=1

wl2_key1=

wl2_key2=

wl2_key3=

wl2_key4=

wl2_lazywds=0

wl2_leddc=0x640000

wl2_maclist=

wl2_macmode=disabled

wl2_maxassoc=128

wl2_mcast_regen_bss_enable=1

wl2_mfp=2

wl2_mode=ap

wl2_mrate=0

wl2_mu_features=1

wl2_nband=4

wl2_net_reauth=36000

wl2_netauthlist=accepttc=+httpred=https://tandc-server.wi-fi.org

wl2_nmcsidx=-1

wl2_nmode=-1

wl2_nratelog=1

wl2_obss_coex=1

wl2_obss_dyn_bw=0

wl2_oce_enable=0

wl2_oob_rnr_list_src=

wl2_opercls=3

wl2_oplist=Wi-Fi Alliance!eng|Wi-Fi联盟!chi

wl2_osu_frndname=SP Red Test Only!eng|SP 빨강 테스트 전용!kor


wl2_osu_method=1

wl2_osu_nai=

wl2_osu_servdesc=Free service for test purpose!eng|테스트 목적으로 무료 서비스!kor

wl2_osu_ssid=OSU

wl2_osu_uri=https://osu-server.r2-testbed.wi-fi.org/

wl2_ouilist=506F9A:1;001BC504BD:1

wl2_owe_groups=19 20 21

wl2_owe_ptk_workaround=1

wl2_phy_dyn_switch_th=

wl2_phytype=v

wl2_phytypes=v

wl2_plcphdr=long

wl2_prev_mbss=8

wl2_prev_mode=ap

wl2_probresp_mf=0

wl2_probresp_sw=1

wl2_pspretend_retry_limit=50

wl2_psr_mrpt=0

wl2_psta_inact=600

wl2_qosmapie=0A030C030E03100012031403160318041A041C041E042C062E063007+0,7;8,15;16,23;24,31;32,39;40,47;48,55;56,63

wl2_qosmgmt_enable=0x33

wl2_radio=1

wl2_radio_pwrsave_enable=0

wl2_radio_pwrsave_level=0

wl2_radio_pwrsave_pps=10

wl2_radio_pwrsave_quiet_time=1800

wl2_radio_pwrsave_stas_assoc_check=0

wl2_radioids=BCM15

wl2_radius_ipaddr=

wl2_radius_key=

wl2_radius_port=1812

wl2_rate=0

wl2_rateset=default

wl2_realmlist=mail.example.com+0+21=2,4#5,7?cisco.com+0+21=2,4#5,7?wi-fi.org+0+21=2,4#5,7;13=5,6?example.com+0+13=5,6

wl2_reg_mode=h

wl2_rifs_advert=auto

wl2_rts=2347

wl2_rx_amsdu_in_ampdu_ovr=-1

wl2_rxchain=15

wl2_rxchain_pwrsave_enable=1

wl2_rxchain_pwrsave_pps=10

wl2_rxchain_pwrsave_quiet_time=1800

wl2_rxchain_pwrsave_stas_assoc_check=1

wl2_rxstreams=0

wl2_sae_anti_clog_threshold=5

wl2_sae_groups=19 20 21

wl2_sae_pwe=0

wl2_sae_sync=5

wl2_saepk_enable=0

wl2_ssd_type=0

wl2_ssid=XB10-6g-60

wl2_sta_mpc_disable=1

wl2_sta_retry_time=5

wl2_stbc_rx=1

wl2_stbc_tx=auto

wl2_taf_enable=-1

wl2_trf_mgmt_rssi_policy=0

wl2_txbf_bfe_cap=111

wl2_txbf_bfr_cap=255

wl2_txbf_imp=1

wl2_txchain=15

wl2_txstreams=0

wl2_unit=2

wl2_venuegrp=2

wl2_venuelist=57692D466920416C6C69616E63650A3239383920436F7070657220526F61640A53616E746120436C6172612C2043412039353035312C2055534121656E677C57692D4669E88194E79B9FE5AE9EE9AA8CE5AEA40AE4BA8CE4B99DE585ABE4B99DE5B9B4E5BA93E69F8FE8B7AF0AE59CA3E5858BE68B89E68B892C20E58AA0E588A9E7A68FE5B0BCE4BA9A39353035312C20E7BE8EE59BBD21636869

wl2_venuetype=8

wl2_version=17.10.369.39012 (r839077 WLTEST) [93229f7]

wl2_vht_features=-1

wl2_vhtmode=-1

wl2_vlan_prio_mode=off

wl2_wanmetrics=1:0:0=2500>384=0>0=0

wl2_wds=

wl2_wds_timeout=1

wl2_wep=disabled

wl2_wet_tunnel=0

wl2_wme=on

wl2_wme_ap_be=15 63 3 0 0 off off

wl2_wme_ap_bk=15 1023 7 0 0 off off

wl2_wme_ap_vi=7 15 1 6016 3008 off off

wl2_wme_ap_vo=3 7 1 3264 1504 off off

wl2_wme_apsd=on

wl2_wme_bss_disable=0

wl2_wme_no_ack=off

wl2_wme_sta_be=15 1023 3 0 0 off off

wl2_wme_sta_bk=15 1023 7 0 0 off off

wl2_wme_sta_vi=7 15 2 6016 3008 off off

wl2_wme_sta_vo=3 7 2 3264 1504 off off

wl2_wme_txp_be=0 0 0 0 0

wl2_wme_txp_bk=0 0 0 0 0

wl2_wme_txp_vi=0 0 0 0 0

wl2_wme_txp_vo=0 0 0 0 0

wl2_wmf_bss_enable=1

wl2_wmf_igmpq_filter=1

wl2_wmf_mdata_sendup=1

wl2_wmf_ucast_upnp=0

wl2_wmf_ucigmp_query=1

wl2_wpa_gtk_rekey=0

wl2_wpa_psk=

wl2_wpa_ptk_rekey=0

wl2_wps_config_state=0

wl2_wps_mode=disabled

wl2_wps_reg=enabled

wl_country_code=#a

wl_country_rev=0

wl_radio_to_ifid_map=0x012

wl_unit=

[33940:RG]#

dmesg | grep -i -E 'wl|brcm|wifi|firmware|rfkill|phy'

[33940:RG]# dmesg | grep -i -E 'wl|brcm|wifi|firmware|rfkill|phy'

[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x420f1000]

[ 0.000000] psci: PSCIv1.1 detected in firmware.

[ 0.000000] psci: Trusted OS resident on physical CPU 0x0

[ 0.000000] arch_timer: cp15 timer(s) running at 27.00MHz (phys).

[ 0.229113] brcm-miimdiomux339x e38041b0.miimdiomux: mdiomiimux339x: init complete!

[ 0.237026] brcm-dqm: DQM device smc - Legacy Interrupt Controller

[ 0.243323] brcm-dqm: DQM device smc with 32 Q's

[ 0.248086] brcm-dqm: DQM device gfap - Live IRQ Interrupt Handling

[ 0.254958] brcm-dqm: DQM device gfap with 64 Q's

[ 0.259813] brcm-dqm: DQM device ep5 - Ext Interrupt Controller

[ 0.265847] brcm-dqm: DQM device ep5 with 32 Q's

[ 0.270573] brcm-dqm: DQM device cpucomm - Legacy Interrupt Controller

[ 0.277246] brcm-dqm: DQM device cpucomm with 32 Q's

[ 0.561845] brcm-fpm: FPM with 2 pool(s)

[ 0.614829] brcm_pwr_rpc_init: Power Domain RPC module

[ 0.627346] brcm_ba_rpc_init: BA RPC Service module

[ 0.699813] arm-scmi brcm-scmi0: SCMI Notifications - Core Enabled.

[ 0.711394] arm-scmi brcm-scmi0: SCMI Protocol v1.0 'brcm-scmi:' Firmware version 0x1

[ 0.937573] irq_brcmstb_l2: registered L2 intc (/upg-intc, parent irq: 23)

[ 0.944528] irq_brcmstb_l2: registered L2 intc (/upg-bsc-intc, parent irq: 24)

[ 0.951823] irq_brcmstb_l2: registered L2 intc (/upg-spi-intc, parent irq: 25)

[ 0.999283] arm-scmi brcm-scmi0: Failed. SCMI protocol 22 not active.

[ 1.106399] brcmstb_qspi d1217000.spi0: using mspi mode

[ 1.111953] brcmstb_qspi d1217400.spi1: using mspi mode

[ 1.234750] brcmstb-i2c d1213100.i2c-a: iica@50000hz registered in interrupt mode

[ 1.242437] brcmstb-i2c d1213280.i2c-d: iicd@50000hz registered in interrupt mode

[ 1.281675] arm-scmi brcm-scmi0: Failed. SCMI protocol 17 not active.

[ 3.101916] wrfpwr wifi-rfpwr: enabled vreg-wl0-rf supply.

[ 3.309931] wrfpwr wifi-rfpwr: enabled vreg-wl1-rf supply.

[ 3.517909] wrfpwr wifi-rfpwr: enabled vreg-wl2-rf supply.

[ 3.539879] brcm-vfbio driver v1.0, multi-queue mode

[ 3.545022] platform regulatory.0: Direct firmware load for regulatory.db failed with error -2

[ 11.183088] brcm-unimac driver v2.0

[ 11.293694] GFAP: Physical dtcm reserved base address:0xdac8e800

[ 11.306595] GFAP Firmware version: 4.49.49

[ 11.408602] brcm-dqnet: Setting /proc/sys/net/core/dev_weight=256

[ 11.415001] brcm-dqnet: Setting /proc/sys/net/core/netdev_budget=1000

[ 11.421750] brcm-dqnet: Setting /proc/sys/net/core/netdev_max_backlog=3000

[ 11.433387] brcm-dqnet: eth3: mac device xlmac0

[ 11.438008] brcm-dqnet: eth3: mii device dgphy0

[ 11.478525] brcm-dqnet: Setting /sys/class/net/eth3/queues/rx-0/rps_cpus=f

[ 11.491775] brcm-dqnet: net device eth3

[ 11.512163] brcm-dqnet: Setting /sys/class/net/cm0/queues/rx-0/rps_cpus=f

[ 11.525488] brcm-dqnet: net device cm0

[ 11.530023] brcm-dqnet: eth0: mac device xlmac3

[ 11.534616] brcm-dqnet: eth0: mii device serdes3

[ 20.688825] Broadcom BCM5499X e3805400.netport-mdio--1:17: PHY Firmware Size 294708:0x47f34 bytes

[ 20.697765] Broadcom BCM5499X e3805400.netport-mdio--1:17: PHY Firmware Simple Checksum: 0xe055ddcc

[ 21.750023] Broadcom BCM5499X e3805400.netport-mdio--1:17: PHY Firmware is loaded with Good CRC.

[ 21.758927] Broadcom BCM5499X e3805400.netport-mdio--1:17: PHY Firmware Version(Main.Branch.Build): 2.03.03

[ 21.768830] Broadcom BCM5499X e3805400.netport-mdio--1:17: PHY Firmware Date(MM/DD/YYYY): 01/04/2023

[ 22.713309] brcm-dqnet: Setting /sys/class/net/eth0/queues/rx-0/rps_cpus=f

[ 22.726424] brcm-dqnet: net device eth0

[ 22.730858] brcm-dqnet: eth1: mac device xlmac2

[ 22.735450] brcm-dqnet: eth1: mii device serdes2

[ 31.749934] Broadcom BCM5499X e3805400.netport-mdio--1:16: PHY Firmware Size 294708:0x47f34 bytes

[ 31.758852] Broadcom BCM5499X e3805400.netport-mdio--1:16: PHY Firmware Simple Checksum: 0xe055ddcc

[ 32.822057] Broadcom BCM5499X e3805400.netport-mdio--1:16: PHY Firmware is loaded with Good CRC.

[ 32.831007] Broadcom BCM5499X e3805400.netport-mdio--1:16: PHY Firmware Version(Main.Branch.Build): 2.03.03

[ 32.840899] Broadcom BCM5499X e3805400.netport-mdio--1:16: PHY Firmware Date(MM/DD/YYYY): 01/04/2023

[ 33.785570] brcm-dqnet: Setting /sys/class/net/eth1/queues/rx-0/rps_cpus=f

[ 33.799180] brcm-dqnet: net device eth1

[ 33.804421] brcm-dqnet: eth2: mac device xlmac1

[ 33.809055] brcm-dqnet: eth2: mii device dgphy1

[ 33.832171] brcm-dqnet: Setting /sys/class/net/eth2/queues/rx-0/rps_cpus=f

[ 33.846907] brcm-dqnet: net device eth2

[ 33.851785] brcm-dqnet: Setting /sys/class/net/priv0/queues/rx-0/rps_cpus=f

[ 33.864638] brcm-dqnet: net device priv0

[ 40.106379] FLOWMGR: GFAP Physical natc context base addr: 0x90400400 size 128

[ 44.241441] brcm-dqnet ethernet2 eth1: Link is Up - 1Gbps/Full - flow control rx/tx

[ 54.654937] Initializing WLCSM Module

[ 54.658663] WLCSM Module loaded successfully

[ 54.999288] WL MLO AP IDS assignment -1 -1 -1 -1

[ 57.396334] wl: module license 'Proprietary' taints kernel.

[ 57.468972] wl_module_init: msglevel set to 0x1

[ 57.473521] wl_module_init: msglevel2 set to 0x0

[ 57.478153] wl_module_init: phymsglevel set to 0x1

[ 57.482956] wl_module_init: passivemode set to 0x0

[ 57.487756] wl_module_init: txworkq set to 0x0

[ 57.492209] wl_module_init: wl_txq_thresh set to 0x0

[ 57.497183] wl_module_init: wl_txq_bound set to 0x100

[ 61.418436] GFAP Firmware version: 4.49.49

[ 1428.922674] brcm-dqnet ethernet0 eth3: Link is Up - 1Gbps/Full - flow control rx/tx

[ 2139.578576] brcm-dqnet ethernet0 eth3: Link is Down

[ 2169.169738] brcm-dqnet ethernet3 eth0: Link is Up - 1Gbps/Full - flow control rx/tx

[ 2254.212450] brcm-dqnet ethernet3 eth0: Link is Down

[33940:RG]#

一些折腾笔记

关闭cm0

ip link set cm0 down
或
ifconfig cm0 down

iptables -I FORWARD 1 -i br0 -o privbr -j DROP

com2 这个应该是猫的口

version

CM> version

*

* *

* *

* *

* *

* *

* *

* *

* *

* *

* *

* *

* *

* *

* *

* *

* * * *

* * * * * * ***

* * * * * * * * *******************

* * * * * *

* *

Broadcom Corporation Reference Design

+------------------------------------------------------------------------------------------------+

| // / / |

| / / // // DOCSIS Cable Modem |

| / / / / |

| / / _/ |

| / / _/ |

| / / / / |

| // / / |

| |

| Copyright (c) 1999 - 2024 Broadcom Corporation |

| |

| Revision: Prod_24.1_240424_ML |

| |

| Features: TECHNICOLOR_XB10 Console TelnetConsole SshConsole Nonvol Fat HeapManager SNMP |

| Features: Networking IPv6 (script bcm933941udwvg_xb10) PNM |

| Features: AckCel(tm) DOCSIS 3.1 Propane(tm) CM SNMP w/Factory MIB Support CM Vendor |

| Features: Extension NA Production Comcast ECN's current to CW125 CableModemBspLib=24.211() |

| Features: PID=0xf730 BIDnotread Bootloader-Rev=2.8.47alpha0 |

| Features: Bootloader-Compression-Support=0x11 MANUFACT_BITS=0xa |

| Features: IopLib-Rev=predevelop_gen2-2024-01-17.UTP=1.4.DTP=1.4 |

| Features: GFAP: API=4.17.7 FW=4.49.49 Timestamp=May 24 2024 22:59:25 |

| Features: GFAP: Branch/Hash=dev_cm 2635db56160d3edc5d15c403422dda931b86ba33 |

| Features: LEAP-Rev=24.2.8302.1 |

| Features: chip=33941UDA1 |

| Features: IPv6 Stack Version 1.2.0 |

| Features: eCos Console Cmds, (no Idle Loop Profiler) |

| Features: Build Commit: 4591c33b38e3dc051856a9192f82344e810f707e |

+------------------------------------------------------------------------------------------------+

| Broadcom Data-Only CM Vendor Extension |

| |

| Copyright (c) 1999 - 2024 Broadcom Corporation |

| |

| Revision: Prod_24.1_240424_ML |

| |

| Features: DHCP Server HTTP Server OSS2-N-03025 Visualization LED Controller |

+------------------------------------------------------------------------------------------------+

| Broadcom SMC Module |

| |

| Copyright (c) 2020 - 2024 Broadcom Corporation |

| |

| Revision: SMC-BL=3.0.22 SMC-OS=4.1.0 |

| |

| Features: (none) |

+------------------------------------------------------------------------------------------------+

| / / //_/ _/ |

| // // / /_/ Embedded MTA |

| / / / / / / |

| / / / / _/ |

| / / / /_/__/ CableLabs Certified |

| / / / / _/ PacketCable Certified |

| / / / / _/ |

| |

| Copyright (c) 1999 - 2024 Broadcom Corporation |

| |

| Revision: Prod_24.1_240424_ML |

| |

| Features: bcm933941udwvg_xb10 eCos |

| Features: OPTIONS: IPv6-SS |

| Features: MSO Build Option: Default |

| Features: MSO Config Option: Comcast |

| Features: LDX-APP: dspApp33940_g711_faxr-pcm/Cx |

| Features: PROTOCOL: SIP |

| Features: PacketCable-v2.0 |

| Features: LDX VERSION: 31.241.1 |

| Features: XCHG VERSION: 222.0 |

| Features: XDRV VERSION: 242.1 |

| Features: SIP Stack VERSION: 4.1.10.16-222.0 |

| Features: |

| Features: Build Commit: c8c8d35d9c853ee84375c0508f2d6db22acf67ff |

| Features: Build Options: |

| Features: pktc_ver=unified |

+------------------------------------------------------------------------------------------------+

| Build Date : Jul 23 2024 |

| Build Time : 09:15:30 (-0400) |

| Build By : scott |

| Build Products : |

| Build Processors: 33941UD |

| Build Parameters: pid 3394 num_sids 16 docsis 31 chipRev Ax c 45 mtaipdualstack 0 j 4 |

| Build Parameters: imagename cm |

| Build Targets : |

| Build Tag : XB10_33941UD_0.8 |

| Build Hash : 4591c33b38e3dc051856a9192f82344e810f707e |

| Image Path : /home/scott/xb10/fsw_v08/bcm-ref/rbb_cm/rbb_cm_src/CmDocsisSystem/ecos/bcm9 |

| Image Path : 33941udwvg_xb10_sip |

| Image Name : cm_sto.bin |

| Build Command : bcm933941udwvg_xb10 sip edva edvaunified nosipdbg nodect mtaipdualstack 0 j |

| Build Command : 4 map comcast cmapp_port_forward imagename cm |

| Build Options : noavs cmd_help_text nocomcast_video_caching demangle deps dualbuild |

| Build Options : factorymibs http ipv6 mgmtmibs nodynwebpage nofan_control noheapboundscheck |

| Build Options : noheapleakdebug nobattery_fdhdwr nobcm80211n cmbas nocpp11 |

| Build Options : nodual_band_80211n nobcm80211n_debug nobonded nocpeportfilter nocmethlan |

| Build Options : nodasm nodiag nodtp_test nodualeth nodualflash nodslite extendedugs |

| Build Options : nofap_assist noflashserver noflashclient nofn_profile nofonhotspot nofpm |

| Build Options : nogrehomehotspot nogrelegacymib nohnap nohomehotspot nointernalusb noipsv |

| Build Options : noiptv nowasu noleaptestportal nol2ogre nol2tpv2 nol2tpv3 nolinux_on_pmc |

| Build Options : nolinux_on_tp1 nolinux_on_zephyr nolinux_partitions nolinux_watchdog |

| Build Options : nolinux_erouter_on_zephyr nolowmemory nomanagedswitch nomediaserver |

| Build Options : nonandboot nonas nodisablemtc_mode openssh76p1 nootp noperfmonitor |

| Build Options : nopiggyback pktc nopmip nopopup nopppoe nopptp nopseudoflash norgipv6 |

| Build Options : noserialportoff noshow nosigtls nosipdqos nosipipv6 noslim nosnmpproxy |

| Build Options : nosnoopdebug nowifi_spectrum_analyzer nosplitbootblock nosiliconverify |

| Build Options : nostress_test nosuperslim notftp_server notr104 nounimacbyoi nousb20 |

| Build Options : nousbhost nodualusbhost nousg_web_pages novendorhttps useformregistrar |

| Build Options : nowifihotspot nowifimfg noclwifi nodual_lna noscrambler_seed_shift |

| Build Options : nomid_split quiet nounified vpn warn_error novlan noethwan nolegacy_parent |

| Build Options : noswitch53124 nopcielowpwr nousmac_diag noupnpc noswitchport_1_4 noswdev |

| Build Options : nomoca nomoca20 msc noautodetect_tuner2 noautodetect_tuner4 nodocsis20snmp |

| Build Options : noemtasim noeps noerouter noikos nol2vpn nomixed_annex nomtsif_sv nonewpki |

| Build Options : nono_cmts_d3_partial_svc nooms nosingleconsole nosingle_ds nosled us |

| Build Options : nobpi_helper_on_fap noxml_doc nocmtr69 rdiag noedge_device novirtnihal |

| Build Options : nozephyr_console_uart0 notr69proxy nobphy_diag noecm normagnum nodsg |

| Build Options : norswdload noestb_config nooob noprereg_sets nocdl20 nodsg30 noecm_clcerts |

| Build Options : nopcieep nob2b_rgmii nodavic noext_ephy nohost_bridge nodavic_api |

| Build Options : nog8davic_api noseb nocustom_vendor_dir use_unimac0 nostb_owns_eth2 nodnac |

| Build Options : nostb_has_lan noecmestbsockif nocablecard_ipproxy nostb_pcie_vlan |

| Build Options : noexplicit_vlan nolgi_dawn noestb_ecm_vlan_connection nostb_on_eth2 |

| Build Options : nolow_gw d30 noejtag nosmisb spectrum_analyzer uda fpm512 nojedecflash |

| Build Options : nonandflash nocfiflash noamdflash nointelflash newleds cacheopt power gfap |

| Build Options : multiprocmon thermal_monitor cmvendor emta nospiflash nobattery litepower |

| Build Options : vin12v noip_rnvol dqm_rnvol itc rtrproxy linux_erouter turbo_wifi monolith |

| Build Options : utp_test sip edva edvaunified nosipdbg nodect map httpssl openssl openssh |

| Build Options : telnet cmapp_port_forward |

+------------------------------------------------------------------------------------------------+

*

* *

* *

* *

* *

* *

* *

* *

* *

* *

* *

* *

* *

* *

* *

* *

* * * *

* * * * * * ***

* * * * * * * * *******************

* * * * * *

* *

Broadcom Corporation Reference Design

+------------------------------------------------------------------------------------------------+

| |

| LATTICE |

| |

| Copyright (c) 1999 - 2024 Broadcom Corporation |

| |

| Revision : 3.1pre |

| |

+------------------------------------------------------------------------------------------------+

| Build Date : Jul 23 2024 |

| Build Time : 09:34:39 (-0400) |

| Build Tag : XB10_33941UD_0.8 |

| Build Tag : 4591c33b38e3dc051856a9192f82344e810f707e |

| Build Path : /home/scott/xb10/fsw_v08/bcm-ref/rbb_lattice/output/arm64/build/lattice-1.0/ |

| Build Path : src |

| Image Path : |

| Build By : scott |

| Build Options : Build_System Build_Cm Build_Mta Build_Ethernet Build_PacketAcceleration |

| Build Options : Build_SpeedTest Build_WanFailover Build_VoiceFailover Build_Thermal |

| Build Options : Build_AltWan Build_Gpio Build_MacSec |

+------------------------------------------------------------------------------------------------+

| Linux Kernel |

| |

| Revision : 5.15.144-3.1pre#2 SMP Tue Jul 23 09:36:27 EDT 2024 |

| Device Tree : soc_base.dtb soc_feat.dtb bcm33940.dtb bcm933940_gw.dtb bcm933940_gw_net.dtb |

| Device Tree : bcm933940_gw_mdio.dtb bcm933941ud_wvg.dtb |

| ARM on battery : cpu-on |

| |

+------------------------------------------------------------------------------------------------+

| GFAP |

| |

| Copyright (c) 1999 - 2024 Broadcom Corporation |

| |

| Revision : 4.49.49 |

| API revision : 4.20.10 |

| Build Timestamp: May 24 2024 22:59:25 |

| Build Branch : dev_cm 2635db56160d3edc5d15c403422dda931b86ba33 |

+------------------------------------------------------------------------------------------------+

| BOLT |

| |

| Copyright (c) 1999 - 2024 Broadcom Corporation |

| |

| Revision : 1.71.04 |

| Build Timestamp: 2024-03-07 09:28:11 |

| Build Tag : NB_sec_v1.71-astra_ams_bolt_24-03-07 |

| Build Hash : 6d7fce5d |

| Build By : rbbsecurebld@lc-acc-0014 |

| Revision(FSBL) : 1.71.04 |

+------------------------------------------------------------------------------------------------+

| Broadcom ASTRA Module |

| |

| Copyright (c) 1999 - 2024 Broadcom Corporation |

| |

| Revision : 2.2.12.4 |

| Build Commit : geb81e986 |

| Build Timestamp: 2024-03-07 09:21:50 |

+------------------------------------------------------------------------------------------------+

| Broadcom AMS Module |

| |

| Copyright (c) 1999 - 2024 Broadcom Corporation |

| |

| Revision : 2.10.101 |

| Build Commit : g4e680848 |

| Build Timestamp: 2023-09-23 09:36:17 |

+------------------------------------------------------------------------------------------------+

| Broadcom TA Module |

| |

| Copyright (c) 1999 - 2024 Broadcom Corporation |

| |

| Revision : 3.1.4 |

| Build Timestamp: 2024-03-07 09:27:23 |

| Build Tag : NB_astra_bp3-astra_app-core_2_2_12_24-03-07-0-g5633def |

| Build By : rbbsecurebld@lc-acc-0014 |

+------------------------------------------------------------------------------------------------+

Chromebox ASUS Ch...
redmi ax6000 官方降级...

Comment
